Kewtech SMARTPAT PAT Tester - Battery Operated
The Kewtech SMARTPAT PAT Tester is a Pass/Fail PAT tester which, when used with Kewtech’s KEWPAT app, becomes a full downloading PAT tester. It is battery operated and can conduct up to 1400 tests before the batteries will require replacing.
The Kewtech SMARTPAT PAT Tester features a large, clear, backlit display which turns red when an appliance has failed a test and green when one has passed. This PAT tester is capable of running automatic test sequences for Class I and Class II appliances. These test sequences are accessible via clearly labelled function buttons. Alternatively, the user may utilise Kewtech’s KEWPAT app in order to create personalised test sequences.
The Kewtech SMARTPAT PAT Tester is capable of running the following tests:
- Earth bond at 200mA (IT safe)
- Quick check continuity
- 5-second continuity
- 250V insulation test (ideal for testing surge protected extension leads)
- 500V insulation test
- Substitute leakage test with selectable substitute leakage limits (110V or 230V)
- Extension lead test
- Portable RCD tests 10mA and 30mA
In addition to its extensive testing capabilities, the Kewtech SMARTPAT PAT Tester also includes a number of additional items optimised to extend its scope-for-use and ensure that it is easy-to-operate. It includes an extension lead adapter; an earth continuity test lead with probe and crocodile clip, and a mains lead.
Finally, the Kewtech SMARTPAT PAT Tester includes an appliance status pre-check and test lead nulling feature designed to improve the accuracy and safety of this PAT tester.
The Kewtech SMARTPAT PAT Tester – Battery Operated is a sophisticated Pass/Fail PAT tester. It can be used in conjunction with Kewtech's KEWPAT app to become a full downloading PAT tester, allowing the user to gather data quickly and efficiently.
Kewtech SMARTPAT PAT Tester – Battery Operated Key Features
- Pass/Fail PAT tester can be transformed into a full downloading PAT tester using Kewtech’s KEWPAT app
- Battery operated
- Can conduct up to 1400 tests before the batteries will need to be replaced
- Large, clear, backlit display
- Display turns green when an appliance has passed a test
- Display turns red when an appliance has failed a test
- Capable of running automatic test sequences for Class I and Class II appliances
- Automatic test sequences accessible via clearly labelled function buttons
- Can create personalised test sequences using the KEWPAT app
- Earth bond at 200mA (IT safe)
- Quick check continuity
- 5-second continuity
- 250V insulation test (ideal for testing surge protected extension leads)
- 500V insulation test
- Substitute leakage test with selectable substitute leakage limits (110V or 230V)
- Extension lead test
- Portable RCD tests 10mA and 30mA
- Easy-to-use
- Includes an extension lead adapter
- Includes an earth continuity test lead with probe and crocodile clip
- Includes a mains lead
- Appliance pre-check
- Test lead nulling feature

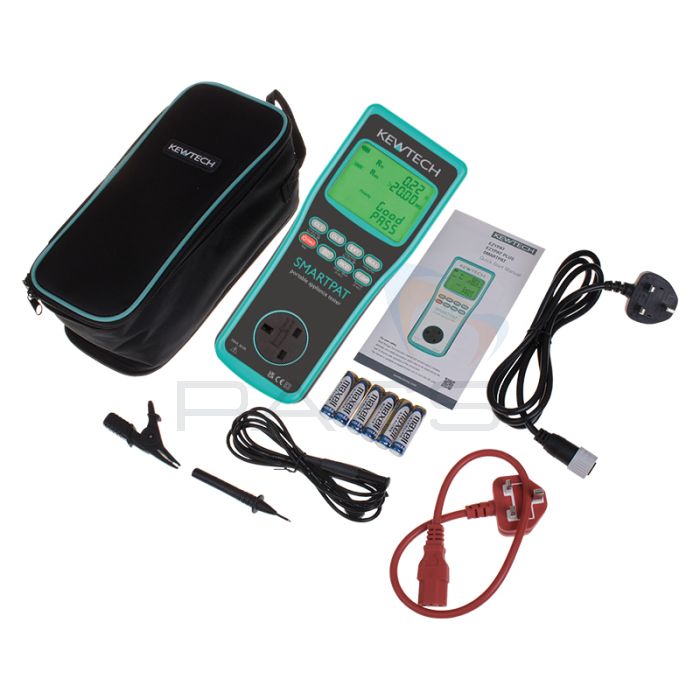

What’s Included?
- Kewtech SMARTPAT PAT Tester –Battery Operated
- Mains Lead
- Earth Lead with Probe and Crocodile Clip
- Extension lead Adapter
- Carry Bag with Strap
- Quickstart Manual
- End of Line Cal Cert
KEWPAT App Description
PLEASE NOTE: the KEWPAT App is not supplied with the Kewtech SMARTPAT PAT Tester; it is available for FREE from the App Store (iOS) and Google Play (Android).
The KEWPAT App is free to download from the App Store (iOS) and Google Play (Android). It can be used with Android and iOS devices and allows the user to control his/her Kewtech SMARTPAT via a compatible smartphone.
Using this app the user can program and initiate portable appliance tests. He/she may customise test sequences, specifying the pass limits, duration and the number of repeats. To help the user create customised, comprehensive tests optimised for specific instruments, the KEWPAT app includes a risk assessment tool. By entering the product and establishment type, the user is able to view the recommended testing frequency for each appliance-under-investigation, as recommended by the Code of Practice. This testing frequency can be adjusted to account for extenuating circumstances, such as dampness.
Viewing the results of these tests is easy as the Kewtech SMARTPAT transmits measurements back to the user's smartphone. Once the results are received the user may add additional information before saving the record to his/her database. Information can also be sent to the user's PC via Wi-Fi. As well as recording written data, the KEWPAT app can be used to save photographs taken of assets (which serve as evidence of visual inspections) to the product register. These capabilities make the KEWPAT App ideal for managing databases and customer information.
Please note that whilst optimised for use with the Kewtech SMARTPAT, this app can be used with Kewtech's EZYPAT and EZYPAT PLUS to manually collect data and generate reports (Manual mode).
The KEWPAT App has been optimised to make data collection as comprehensive and easy as possible. To this end, it includes a number of features designed to add to the app's ease of use and efficiency, such as voice prompt help and drop-down menus for customer, site, location and product description information, as well as auto-number increments. Alternatively, this app can be used to acquire data quickly through the scanning of QR data codes and barcodes.
Finally, the KEWPAT App offers the user the option to send acquired information to print and allows the user to print labels containing the company's logo.
The KEWPAT App is a comprehensive, easy-to-use tool, optimised for use with the Kewtech SMARTPAT PAT Tester. For further information regarding this app, please see the video below.
FREE KEWPAT App Key Features
- FREE iOS and Android app optimised for use with the Kewtech SMARTPAT PAT Tester
- Download for FREE from the App Store (iOS) and Google Play (Android)
- Control the Kewtech SMARTPAT via a compatible smartphone
- Program and initiate portable appliance tests
- Customise test sequences
- Specify pass limits, duration and the number of repeats
- Integrated risk assessment tool calculates test frequency in accordance with the Code of Practice
- Adjust test frequency to accommodate extenuating circumstances such as dampness
- Results sent to the user's smartphone from the SMARTPAT
- Save photographs of assets to the product register
- Add additional information to results before saving records to databases
- Manage databases
- Manage customer information
- Use with the EZYPAT and EZYPAT PLUS in Manual Model to collect data and create reports
- Voice prompt help
- Drop-down menus for customer, site, location and product description information
- Auto-number increments
- New description or repeat
- Appliance description
- Scan QR data codes and barcodes
- Connect to a PC via Wi-Fi
- Print labels containing the company's logo
- A comprehensive, easy-to-use tool
Kewtech EZYPAT/ SMARTPAT Comparision Table
The Kewtech SMARTPAT PAT Tester has two sister products: the Kewtech EZYPAT and EZYPAT PLUS PAT Testers; please see the table below for a brief comparison of the three models.
| Specification | EZYPAT | EZYPAT PLUS | SMARTPAT |
| 200mA Continuity Test | X | X | X |
| 250V Insulation Test | X | X | X |
| 500V Insulation Test | X | X | X |
| Substitute Leakage Test | X | X | X |
| Polarity Check | X | X | X |
| 110V Load and Run Test | X | X | |
| 230V Load and Run Test | X | X | |
| Portable RCD Test | X | ||
| Compatible with KEWPAT App | X | ||
| Customisable Test Sequences | X |
Kewtech SMARTPAT PAT Tester - Battery Operated Techncial Specifications
| Protective Conductor Resistance Test | ||
| Measuring range | 0.00 - 20.00 Ω (NULL value inc)* | |
| Over-range indication | > 20.00 Ω | |
| Resolution | 0.01Ω | |
| Open-circuit voltage | 5 V ±0.4 V DC | |
| Measuring current | 200 mA DC (nominal value) | |
| Accuracy | ±3%rdg ±5dgt | |
| * Resistances exceeding 3 Ω cannot be cancelled by NULL function | ||
| Mains Voltage | ||
| Display range | 30 - 270 V | |
| Hi/ Lo indication | < 30 V: No voltage indication > 270 V: 270 V | |
| Resolution & Accuracy | 1 V ±3%rdg ±5dgt | |
| Insulation | ||
| Rated Voltage | 250V | 500V |
| Measuring range | 0.00 - 20.00 MΩ | |
| Over-range indicatio | > 20.00 MΩ | |
| Resolution | 0.01 MΩ | |
| No-load voltage | 250 V DC +20%, -0% | 500 V DC +20%, -0% |
| Short-circuit current | 1.5 mA DC or less | |
| Rated current | 1 -1.2 mA with a load of 0.25 MΩ | 1 to 1.2 mA with a load of 0.5 MΩ |
| Accuracy | ±2%rdg±3dgt | |
| Substitute Leakage | ||
| Measuring range | 0.10 - 12.00 mA rms | |
| Over-range indication | > 12.00 mA | |
| Resolution | 0.01mA | |
| Open-circuit voltage/ Freq | 30 V ±5 V rms / 50 Hz ±5% | |
| Measuring current | 1.2 mA AC ±0.5 mA (when measuring 12.00 mA) | |
| Accuracy | ±3%rdg±5dgt | |
| Insuyltation Test Between L-N | ||
| Open-circuit voltage | 4.5 V ±0.5 V DC | |
| Criteria of judgement | 100 kΩ ±20 kΩ or less: LCD shows “<0.10 MΩ” and the measurement is halted | |
| Run Leakage | ||
| Item | Load Current | Leakage Current |
| Mains voltage range | 100 - 253 V / 50 Hz | |
| Measuring range | 0.10 - 13.00 A rms | 0.10 - 20.00 mA rms |
| Display range | 0.00 - 13.00 A | 0.00 - 20.00 mA |
| Over-range indication | > 13.00 A | > 20.00 mA |
| Resolution | 0.01A | 0.01mA |
| Accuracy | ±10%rdg ±5dgt | ±3%rdg ±5dvgt |
| Max. rating | 3 kVA max. / 15 sec. cont. | |
| RCD Test | ||
| Rated voltage | 230 V - 15% to +10% / 50Hz | |
| Rated current | 10 mA / 30 mA | |
| Test duration | ×1: 0.0 ms - 500.0 ms | ×5: 0.0 ms - 40.0 ms |
| Test current accuracy | 2% - 8% | |
| Operating time accuracy | ±2 ms ( 40 ms) ±8 ms (>40 ms) | |
| SKU | SMARTPAT |
|---|---|
| Manufacturer Part Code | SMARTPAT |
| Model No | SMARTPAT |
