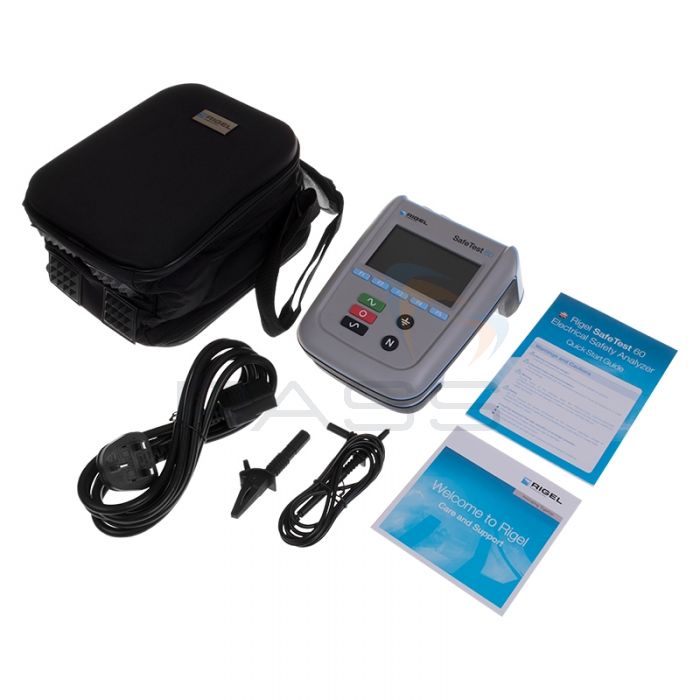

Rigel SafeTest 60 Medical PAT Tester - Kit

The Rigel SafeTest 60 Medical PAT Tester is ideal for testing medical and laboratory equipment that does not require patient lead testing.

Some of the equipment it is ideal for testing is:

  • Beds
  • Hoists
  • Infusion Pumps
  • CPAPs
  • Centrifuges

For a quick overview of the Rigel SafeTest 60 Medical PAT Tester’s applications, capabilities and features, please see the video below.



The Rigel SafeTest 60 Medical PAT Tester is a comprehensive tester compliant with a multitude of testing standards including:

  • Leakage testing: IEC 60601, IEC 62353, NFPA-99
  • Earth bond testing: IEC 62353, IEC 61010, NFPA-99
  • Insulation testing: IEC 62353

This instrument is also available in a wide variety of power configurations, ensuring that it can be tailored to an array of local and international requirements.

This PAT Tester has been designed with ease-of-use in mind and can be operated by both trained PAT testers and those without any PAT testing experience. Its manual control ensures that the user only need execute the tests they wish to perform, and gives him/her complete control over the power cycles; this makes testing quick and easy.

The Rigel SafeTest 60’s display and interface also add to its ease-of-use and rapidity of operation. Its large, colour display makes reading measured values and navigating the tester’s functions clear and simple, whilst its colour –coded interface ensures that desired tests can be selected via a single button, and provides a fast step-through of the test routine.

The Rigel SafeTest 60 can perform an array of tests:

  • Earth leakage
  • Enclosure leakage
  • Ground leakage
  • Chassis leakage
  • High current, low energy earth bond testing
  • Equipment leakage
  • Insulation testing
  • Touch leakage
  • Touch Voltage
  • Point-to-point testing
  • Mains voltage measurement
  • Load current measurement

In addition to this, the SafeTest 60 will alert the user when secondary earth/ground paths are detected, making the user aware of the invalidity of the readings, thereby ensuring that the user is able to re-take any necessary measurements in order to reach accurate and reliable results.

This ergonomic, handheld and durable PAT tester is supplied with a protective carry case and can be operated using any mains supply between 90-264V/ 48-64Hz, making the Rigel SafeTest 60 Medical PAT Tester ideal for use across a variety of medical and laboratory sites.

Rigel SafeTest 60 Medical PAT Tester Key Features

  • Ergonomic, portable, comprehensive medical PAT tester
  • Optimised for testing medical and laboratory equipment that does not require patient lead testing
  • Compliant with a multitude of testing standards: IEC 60601, IEC 62353, NFPA-99
  • Available in a wide variety of power configurations
  • Can be used by trained PAT testers and those without PAT testing experience alike
  • Manual control makes testing quick and easy
  • Large, colour display
  • Colour-coded interface
  • Single-key test selection
  • Fast step-through of test routine
  • Earth leakage
  • Enclosure leakage
  • Ground leakage
  • Chassis leakage
  • High current, low energy earth bond testing
  • Equipment leakage
  • Insulation testing
  • Touch leakage
  • Touch Voltage
  • Point-to-point testing
  • Mains voltage measurement
  • Load current measurement
  • Alerts the user to secondary earth/ground paths
  • Can be operated using any mains supply between 90-264V/ 48-64Hz

What’s Included?

  • Rigel SafeTest 60 Medical PAT Tester
  • Manufacturer’s Calibration Certificate
  • Carrying Case
  • Bond Test Probe with Clip
  • Detachable Mains Cable
  • Electronic Instruction Manual
  • Quick Start Guide

Rigel SafeTest 60 Technical Specifications

Earth Continuity
Method 2 wire ZAP technique
Test Current >±200mA DC into 2Ω
Max Test Voltage 4-24V rms o/c
Measuring Range (Low Range) 0.001 to 0.999Ω / 0.001Ω resolution
Measuring Range (Mid Range) 1.00 to 9.99Ω / 0.01Ω resolution
Measuring Range (High Range) 10.0 to 19.9Ω / 0.1Ω resolution
Accuracy ±1% of value, ±5mΩ
Circuit Protection Test inhibited if ≥30V AC or DC at 4mm inputs
Insulation Resistance
Measurement EUT to Earth
Voltage 500V DC@1mA
Maximum O/C Voltage <600V DC
Range 100K to 20MΩ ±5% ± 2 digits
Resolution 0.01MΩ
Short Circuit Current <2mA
Powered Leakage Measurements
IEC 62353 Equipment Leakage (Direct)
IEC / AAMI 60601 Earth + Enclosure Leakage
NFPA-99 Ground + Chassis Leakage
IEC 61010 Touch Leakage, Touch Voltage
Test Voltage Mains Supply Voltage
Measuring Range 0.1 to 9999μA (0.1 to 8000μA typical for IEC 61010)
Measurement Display/Resolution 0.1μA
Accuracy ±2% ± 5μA
Single Fault Conditions Open neutral via softkey
Open earth via softkey
Frequency Response IEC 60601 - 62353, NFPA-99 and IEC 61010
Voltage Measurement
Application L-N, L-E, N-E and touch voltage (IEC 61010)
Range 0.0 to 300V AC
Resolution 0.1V
Accuracy ±2% ± 2 digits (between 10V to 270V AC)
Mains Frequency 45.0 to 66.0Hz
Resolution 0.1Hz
Accuracy Unspecified
EUT Load Current Measurement
Range 0.0 to 20.0A
Resolution 0.1A
Accuracy ±5% ± 2 digits
Power Source
Maximum Current Rating 20A @ 120V / 16A @ 230V
Duty Cycle 15A to 20A, 5 min on/5 min off
10A to 15A, 7 min on/3 min off
10A to 15A, 7 min on/3 min off
Mains Power 90 to 264V, 48-64Hz
