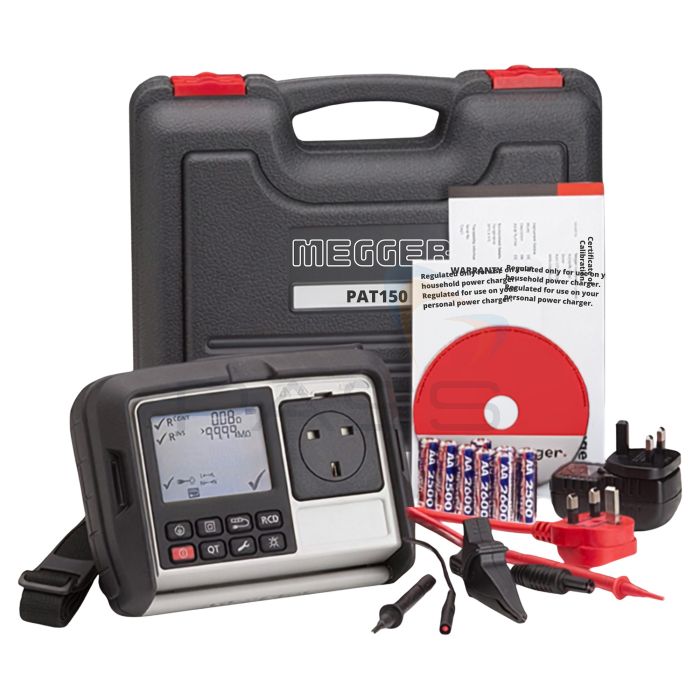

Megger PAT150-R Rechargeable Manual PAT Tester
Free Gift
- Entry-level manual PAT tester - ideal for all basic checks
- Upgraded version of the Megger PAT150 with rechargeable batteries
- Quick, automated testing
SKU
1003-428
MPN
1003-428
Note: the Megger PAT150-R is the upgraded, rechargeable version of the Megger PAT150. Both testers are otherwise identical.
Check the electrical safety of all of your appliances with this simple-to-use portable appliance tester from Megger.
Handheld, portable and powered by rechargeable batteries, the PAT150-R is ideal for taking from test to test. It comes as standard inside its own rugged carrying case, making it perfectly suited for use anywhere ranging from a small office to a construction site.
This is a manual PAT tester - it'll show you full testing results, but won't store them in memory. You'll need to jot them down yourself instead.
Videos
PAT150 vs PAT250 - Which Megger PAT Tester is Right for you?
Want to see the tester in action? Take a look at this video from Megger for more information:
Megger PAT150-R PAT Tester Key Features
- Easy to use - simple tick/cross PASS/FAIL indication plus full display of testing results
- Exclusive portable RCD testing mode for 10mA and 30mA RCDs
- 500V and 250V insulation procedures make the tester suitable for use on IT and surge protected equipment
- Continuity testing
- Mains powered leakage testing
- SELV measurements
- Quick test button
- User-configurable test group pass limits and test duration
- Bond lead resistance can be nulled to reduce measurement errors
- Live circuit measurements for testing mains supply and socket polarity
- Suitable for testing fixed appliances
- Tough armoured carrying case with protective lid plus high durability screen with scratchproof technology
- Rechargeable batteries

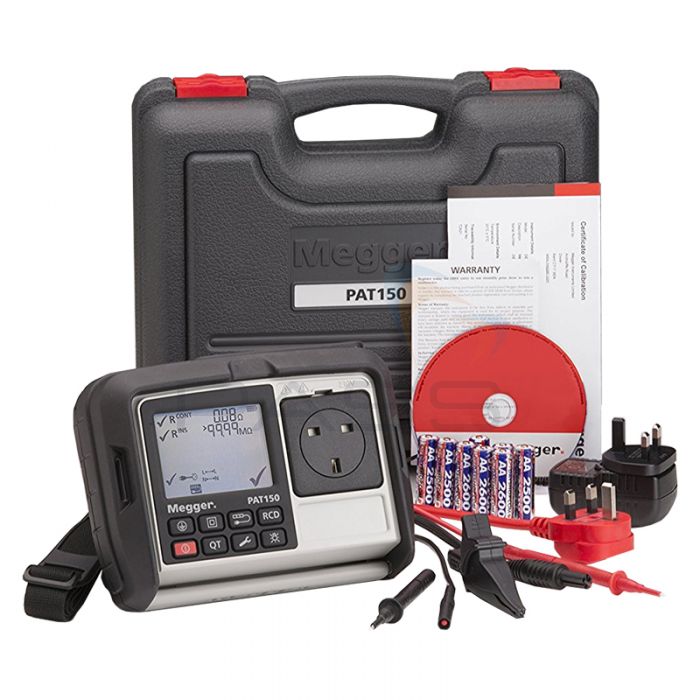

What's Included?
- Megger PAT150 PAT Tester
- Continuity/Earth Bond Lead
- SELV/Mains Voltage Test Lead
- Extension Lead Adapter
- Mains Plug Test Lead
- Carry Case
- AC Adaptor
Megger PAT120, PAT150 or PAT150-R?
Which of these testers is right for you? See the difference in our comparison table:
| Feature | Megger PAT120 | Megger PAT150 | Megger PAT150-R |
|---|---|---|---|
| Mains Test Socket | BS1363 | BS1363 | BS1363 |
| Power Supply | AA alkaline batteries | AA alkaline batteries | Rechargeable batteries |
| Testing | |||
| Protective Earth Resistance | √ | √ | √ |
| 250V Insulation | √ | √ | √ |
| 500V Insulation | - | √ | √ |
| Cable Test | √ | √ | √ |
| Live Protective Conductor Current | - | √ | √ |
| Live Touch Current | - | √ | √ |
| Substitute Leakage | √ | √ | √ |
| Function Test (Part of Live Leakage Test) | - | √ | √ |
| 10mA PRCD | - | √ | √ |
| 30mA PRCD | - | √ | √ |
| SELV Voltage | - | √ | √ |
| Lead Resistance Nulling | - | √ | √ |
| Function Keys | |||
| Class 1 | √ | √ | √ |
| Class 2 | √ | √ | √ |
| Lead/Cord | √ | √ | √ |
| PRCD | - | √ | √ |
| Single Test | - | √ | √ |
| LCD Backlight | √ | √ | √ |
| Setup | - | √ | √ |
| On/Off | √ | √ | √ |
| Standard Accessories | |||
| 4mm Plug Lead Probe + Croc Clip | 1x | 2x | √ |
| Extension Lead Adaptor | BS1363 | BS1363 | √ |
| Mains Supply Cord | - | √ | √ |
£594.00
£712.80 inc vat
2 in Stock:
Available Next Working Day*
Offers
FREE PAT Reference Card
- PAT Testing Reference Card 5th Edition - PAT-TEST-CARD, typically £5.00
Technical Information
Specification
Megger PAT100 Series Technical Specifications
| Specifications | Megger PAT120 | Megger PAT150/PAT150R |
|---|---|---|
| Environmental Conditions | ||
| Operating Ambient | 20°C | 20°C |
| Humidity | Nominal humidity | Nominal humidity |
| Continuity Testing | ||
| Test Voltage | Compliance voltage: +4V DC -0 / +10% (open circuit) |
Compliance voltage: +4V DC -0 / +10% (open circuit) |
| Test Current | Bi-directional +200mA -0% + 50mA (into 2Ω load) |
Bi-directional +200mA -0% + 50mA (into 2Ω load) |
| Continuity Accuracy | Resistance: ±5% ± 3 digits (0 to 19.99Ω) | Resistance: ±5% ± 3 digits (0 to 19.99Ω) |
| Resistance Resolution | 10mΩ | 10mΩ |
| Display Range | 0.01 to 19.99Ω | 0.01 to 19.99Ω |
| Continuity Test Nulling | Up to 9.99Ω | Up to 9.99Ω |
| Test Duration | Selected during test automatically | User-selectable from 2 seconds to 20 seconds or selected during test to 180 seconds |
| Insulation Test | ||
| Insulation Procedure | 250V DC: -0% / +25% open circuit | 250V DC: -0% / +25% open circuit 500V DC: -0% / +25% open circuit ≥ 500V 0% DC across 0.5MΩ load |
| Short Circuit/Charge Current | <2mA DC | <2mA DC |
| Insulation Accuracy | ±3% ± 10 digits (0 to 99.9MΩ) | ±3% ± 10 digits (0 to 99.9MΩ) |
| Resolution | 0.01MΩ | 0.01MΩ |
| Display Range | 0.10M to 99.99MΩ | 0.10M to 99.99MΩ |
| Test Duration | Selected during test automatically | User selectable from 2 seconds to 20 seconds or selected during test to 180 seconds |
| Substitute Leakage Test | ||
| Leakage Current | Accuracy ±5% ± 3 digits | Accuracy ±5% ± 3 digits |
| Test Frequency | Nominal mains frequency 50Hz | Nominal mains frequency 50Hz |
| Test Voltage | <50V AC | <50V AC |
| Resolution | 0.01mA | 0.01mA |
| Display Range | 0.10 to 19.99mA | 0.10 to 19.99mA |
| Test Duration | User-selectable from 2 secs to 5 seconds | User-selectable from 2 secs to 5 seconds |
| Differential Leakage Test (PAT150 Only) | ||
| Test Voltage | - | Nominal supply voltage 230V AC |
| Test Frequency | - | Nominal mains frequency 50Hz |
| Test Accuracy | - | ±5% ±3d ± 3μA/A |
| Resolution | - | 0.01mA |
| Display Range | - | 0.10 to 19.99mA |
| Test Duration | - | User-selectable from 2 seconds to 5 seconds |
| Touch Current Test (PAT150 Only) | ||
| Test Voltage | - | Nominal mains 230V AC |
| Test Frequency | - | Nominal mains 50Hz |
| Test Accuracy | - | ±5% ± 3 digits |
| Resolution | - | 0.01mA |
| Display Range | - | 0.10 to 3.99mA |
| Test Duration | - | User-selectable from 2 seconds to 5 seconds |
| SELV Device Test (PAT150 Only) | ||
| Test Voltage | - | 0 to 300V AC |
| Measurement Accuracy | - | ±3% ± 3 digits |
| Resolution | - | 0.1V AC |
| Display Range | - | 0.1 to 300V AC |
| Extension Lead Test | ||
| Test Voltage | 5V | 5V |
| Polarity | Lead OK Live/neutral shorted Live/neutral reversed Live/neutral open circuit |
Lead OK Live/neutral shorted Live/neutral reversed Live/neutral open circuit |
| Portable RCD Test (PAT150 Only) | ||
| Test Voltage | - | Nominal mains 230V |
| Test Frequency | - | 50Hz |
| Test Current Accuracy | - | +2% to +8% (1 x I, 5 x I) |
| Trip Time Accuracy | - | ±1% ± 1ms |
| Trip Time Resolution | - | 0.01ms |
| Display Range | - | 0 to 200ms (1 x I) 0 to 40ms (5 x I) |
| Mains Supply Test (PAT150 Only) | ||
| Frequency Measurement Range | - | 50Hz |
| Test Voltage | - | 40 to 300V AC |
| Accuracy | - | ±3% ± 3 digits |
| Resolution | - | 0.1V AC |
| Display Range | - | 40 to 300V AC |
| Circuit Test | ||
| Test Voltage | 5V | 5V |
| Test Frequency | Nominal mains 50Hz | Nominal mains 50Hz |
| Test Current | <100mA short circuit | <100mA short circuit |
| Safety | Instrument designed to IEC 61010-1: 2012 Test leads designed to IEC 61010-031:2005 300 volts to Earth Category II Mains fuse protection to 250V RMS AC |
Instrument designed to IEC 61010-1: 2012 Test leads designed to IEC 61010-031:2005 300 volts to Earth Category II Mains fuse protection to 250V RMS AC |
| EMC | Designed to meet IEC 61326-1: 2006 and IEC 61326-2-2: 2005 | Designed to meet IEC 61326-1: 2006 and IEC 61326-2-2: 2005 |
| Environmental | ||
| Operating Temperature | 0 to 40°C | 0 to 40°C |
| Storage Temperature | -20 to 60°C | -20 to 60°C |
| Humidity | 90% RH @ 10 to 30°C 75% RH @ 30 to 40°C |
90% RH @ 10 to 30°C 75% RH @ 30 to 40°C |
| Max Altitude | 2000m to full safety spec | 2000m to full safety spec |
| IP Rating | IP40 (with front cover closed) | IP40 (with front cover closed) |
| Mechanical (Batteries) | ||
| Battery Life | 3 days based on 120 tests/day using 2000mAh alkaline batteries | 3 days based on 120 tests/day using 2000mAh alkaline batteries |
| Battery Type | Supply voltage 12V DC (alkaline AA LR6) 9.6V DC (NiMH AA LR6) |
Supply voltage 12V DC (alkaline AA LR6) 9.6V DC (NiMH AA LR6) |
| Weight | 1150g | 1300g |
| Dimensions | 203mm (L) x 148mm (W) x 78mm (H) | 203mm (L) x 148mm (W) x 78mm (H) |
Document Downloads
Additional Information
SKU
1003-428
Manufacturer Part Code
1003-428
Model No
PAT150-R
Country of Origin
United Kingdom
