The scope-for-use of the UNI-T UT528 Exclusive PAT Kit for Schools is not limited to schools; this kit can be used to verify items and apparatus used in all educational environments including, but not limited to, universities, colleges and youth clubs, as well as schools.

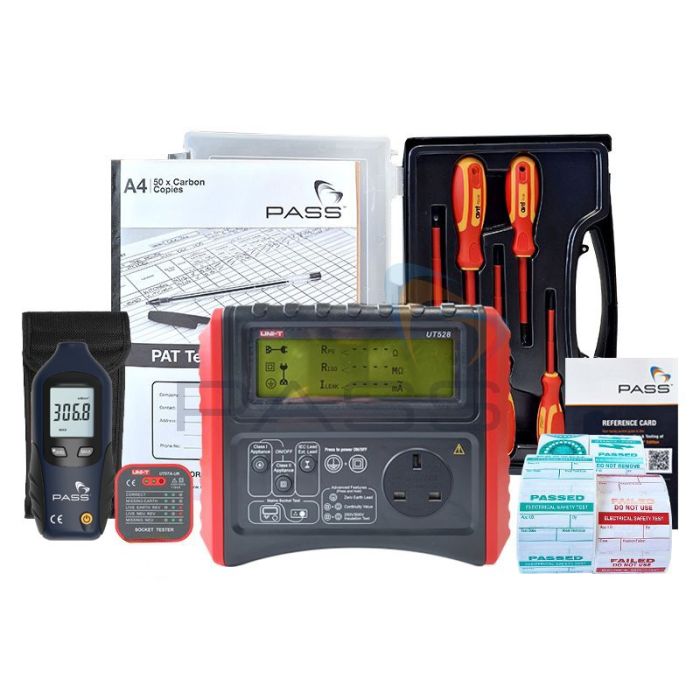

This cost-effective kit contains all the equipment necessary for training individuals in carrying out routine PAT test in educational environments; it is comprised of the following items:
- UNI-T UT528 PAT Tester
- PAT Testing Training USB with Online Exam and Certificate
- PASSPTA20 Microwave Leakage Tester
- Cloverleaf Adapter
- Socket Tester
- 1000 x Passed Labels (2 rolls of 500 labels)
- 250 x Failed Labels
- 500 x Plug Top Labels
- 250 x Cable Wrap Labels
- 5 Piece Insulated Screwdriver Set
- PAT Testing Log Book
For further information regarding these products, please see the following descriptions.
UNI-T UT528 PAT Tester Description
The UNI-T UT528 PAT Tester is optimised for use in schools, colleges and universities. It is ideal for the low volumes of testing required in these environments.
The UNI-T UT528 PAT Tester is capable of testing Class I and Class II appliances, as well as cables and IT equipment. It is equipped with the following testing capabilities:
- Earth continuity
- Live/ neutral checks for mains socket testing
- 250V insulation resistance
- 500V insulation resistance
The UNI-T UT528 PAT Tester will indicate whether the item-under-investigation has passed or failed each test whilst also displaying the test result.
Accessing the relevant test procedures is quick and easy when using the UNI-T UT528 PAT Tester’s three-button keypad optimised for one-touch testing. This instrument is also equipped with a 30m test lead adding to its practicality as it is able to access difficult-to-reach appliances.
This battery-powered, lightweight (weighs less than 1kg) PAT tester is also supplied with a hard carry case including a cut-out foam insert designed to protect the UNI-T UT528 PAT Tester and keep it in place during transit.
The UNI-T UT528 PAT Tester is an affordable, all-round, easy-to-use electrical safety tester that will be of particular use to maintenance staff in schools, colleges, universities and youth centres.
UNI-T UT528 PAT Tester Key Features
- Optimised for use in schools, colleges and universities
- Ideal for the low volumes of testing required in educational environments
- Capable of testing Class I and Class II appliances, cables and IT equipment
- Earth continuity test
- Live/ neutral checks for mains socket testing
- 250V insulation resistance test
- 500V insulation resistance test
- PASS/ FAIL indication is displayed with the test results
- One-touch testing
- Three-button keypad
- Equipped with a 30m test lead
- Battery powered
- Lightweight: weighs less than 1kg
- Supplied with a hard carry case with a foam insert
- An affordable, all-round, easy-to-use electrical safety tester
- Of particular use to maintenance staff in schools, colleges, universities and youth centres
PAT Testing Training USB with Online Exam and Certificate Description
The PAT Testing Training USB is accredited by NAPIT (the National Association of Professional Inspectors and Testers) and can be used to train individuals in PAT testing.
This USB is structured in such a way as to make training as easy as possible: it is broken down into easy-to-understand sections. Once viewed, the individual may sit an online exam and, when passed, will receive a certificate of competency in PAT testing.
PLEASE NOTE that this USB is supplied with ONE exam; additional exams may be purchased separately.
PAT Testing Training USB with Online Exam and Certificates Key Features
- Accredited by NAPIT
- Train individuals in PAT testing
- Easy-to-understand sections facilitating effective learning
- Supplied with one online exam
- Additional exams can be purchased separately
- Once the exam is passed the individual is awarded a certificate of competency in PAT testing
PASSPTA20 Microwave Leakage Tester Description
The PASSPTA20 Microwave Leakage Tester can be used to verify that microwaves are working effectively and are not emitting radiation in excess of 0-5mW/cm² (the safe level of microwave leakage as specified by international standards).
If microwave leakage above the acceptable threshold is detected, the PASSPTA20 Microwave Leakage Tester will issue a beeping tone and visual alert in the form of a red LED indicator. It is also possible to view the measured microwave leakage via the PASSPTA20 Microwave Leakage Tester’s LCD screen.
The highly sensitive PASSPTA20 Microwave Leakage Tester can be used to check microwaves commonly found in educational environments as well as in homes and offices.
PASSPTA20 Microwave Leakage Tester Key Features
- Verify that microwaves are working effectively and are not emitting radiation in excess of 0-5mW/cm²
- Issues an audible and visual alert when radiation leakage in excess of acceptable thresholds is detected
- View measurements via the LCD display
- Check microwaves commonly found in homes, offices and educational environments
What’s Included?
- UNI-T UT528 PAT Tester
- PAT Testing Training USB with Online Exam and Certificate
- PASSPTA20 Microwave Leakage Tester
- Cloverleaf Adapter
- Socket Tester
- 1000 x Passed Labels (2 rolls of 500 labels)
- 250 x Failed Labels
- 500 x Plug Top Labels
- 250 x Cable Wrap Labels
- 5 Piece Insulated Screwdriver Set
- PAT Testing Log Book
UNI-T UT528 PAT Tester Technical Specifications
Specifications | Range | Best Accuracy | |
Insulation Resistance (Ω) | Test voltage | 500V | ✔ |
Class I PASS Value | 1MΩ | ±0.1MΩ | |
Class II PASS Value | 2MΩ | ±0.1MΩ | |
Cord PASS Value | 2MΩ | ±0.1MΩ | |
Test Current | (R=500KΩ): >1mA | ✔ |
|
Short-Circuit Current | <3mA | ✔ |
|
Ground Resistance (Ω) | Class I PASS Value | 0.2Ω | ±0.03MΩ |
Cord PASS Value | 0.2Ω | ±0.03MΩ | |
Test Current | >200mA (R<2Ω) | ✔ |
|
Measuring Voltages (DC) | 5V | ✔ |
|
Cord Test | Correct Wiring | ✔ Cord Fault |
✔ |
Open Circuit, Short Circuit,Reverse Polarity |
X Cord Fault | ✔ | |
Out With Testing | Test Voltage | AC220V | ±10% |
Normal | Show"LN ✔ , LE ✔ , NE ✔ " |
✔ | |
Off Ground | Show"LN X; , LE ✔ , NE X" |
✔ | |
Out Zero Line | Show"LN ✔ , LE X , NE X" |
✔ | |
Features | |||
Display Count | 1999 | ||
Auto Power Off | ✔ | ||
Low Battery Indication | ✔ |
General Specifications
Power | 1.5V Batteries (LR14) x6 |
LCD Size | 136mm x 47mm |
Product Colour | Red and Grey |
Product Net Weight | 970g |
Product Size | 210mm x178mm x 90mm |
Standard Accessories | Batteries, Test Cord, Alligator Clip |
Standard Individual Packing | Gift Box, English Manual, Tool Box |
Standard Quantity Per Carton | 4 PCs |
Standard Carton Measurement | 510mm x 330mm x 330mm (0.056cbm Per Standard Carton) |
Standard Carton Gross Weight | 11Kg |
SKU | UT528SCH |
---|---|
Manufacturer Part Code | UT528SCH |
