Seaward PrimeTest 100 PAT Tester Details
The upgraded version of Seaward's PrimeTest 50, the PrimeTest 100 is designed with ease of use in mind with simple, three button control for fast and convenient switching between testing modes and portable, handheld design for porting from appliance to appliance.
This tester is suitable for use in carrying out earth continuity, insulation, leakage and wiring tests on class I and class II appliances, IT equipment, IEC leads and extension leads.
Want to see how it works? This product guide from Seaward shows the tester in action!
Seaward PrimeTest 100 PAT Tester Key Features
- Upgraded version of the PrimeTest 50 - displays full results as well as PASS/FAIL indication
- Compact design - one of the smallest PAT testers available
- Simple to use - connect your appliance, press one of the three testing buttons and the tester will do the rest
- Performs earth continuity, leakage, insulation and wire testing
- Suitable for use on class I and class II appliances
- Also suitable for testing IT equipment and leads
- Battery powered - portability for testing hard-to-access appliances

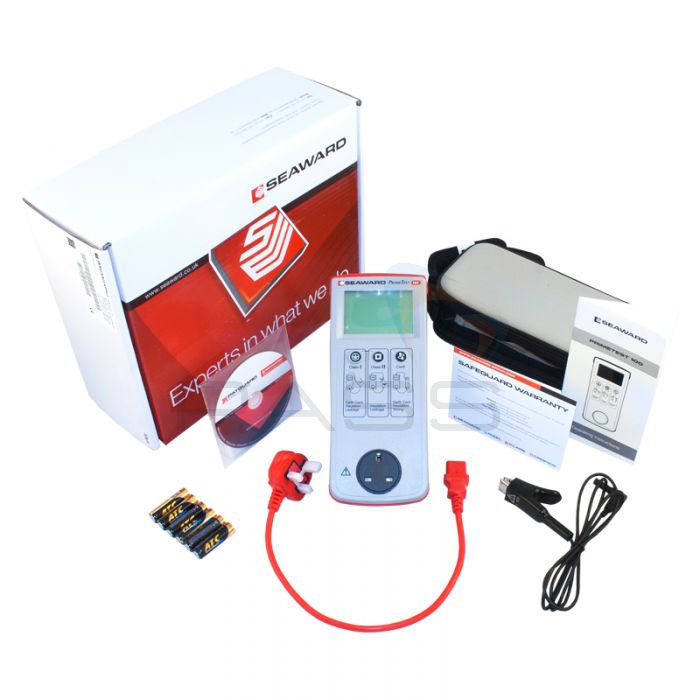

- Seaward PrimeTest 100 PAT Tester
- Soft Carry Case
- Earth Bond Test Lead with Crocodile Clip
- IEC Lead
- 6 x AA Batteries
- Instruction Manual
- PATGuard Evaluations Software Package (Free Trial)
PrimeTest 100 Bundle Offers
Want even more out of your PAT tester? We supply unique PAT testing kits that you won't find anywhere else, packed full of additional accessories designed to be used everyday in PAT testing applications.
Better yet - you'll save hundreds over buying all of this equipment separately!
Just take a look at the table below to see our kit options for the PrimeTest 100 PAT Tester:
Item Description PrimeTest 100 PAT Tester Essentials Kit (Bundle 1) PrimeTest 100 PAT Tester Professional Kit (Bundle 2)
Deluxe Carrying Case
Keep all of your equipment safe and in one place with this large-size carrying case!
(appearance of case may vary depending on current stock)
Need to check if your sockets are working right? Just plug this in to a standard UK plug socket and if there's a problem, the socket tester will let you know about it!
(socket tester may vary depending on current stock)
PAT Testing Training DVD +
Online Exam & Certificate for 1 Person
Not yet trained as a PAT tester? With our training DVD, you can train yourself from the comfort of your own home or workplace! The DVD includes access to our online examination for one person (you can also purchase additional exams for other team members, if needed).
The PASS Handbook of Portable Appliance Testing
Everything you need to know about PAT testing is outlined in this comprehensive book. Inside, you'll find useful information, colour-coded sections, photographic examples and much more to help you PAT test on a daily basis.
PASS PAT Testing Logbook
Keep a record of all of your testing with our logbook. The book includes carbon-copied records, allowing you to keep one for yourself and give the other to customers or keep for a reference.
Microwave Leakage Detector
When PAT testing, it's common practice to check microwaves are also not emitting high levels of radiation. With our microwave leakage detector you'll be able to do this testing with ease.
PASSPTA21 - IEC (C13 Female)
to Cloverleaf (C6 Male) PAT Adaptor
You'll need this adaptor to connect your PAT tester to laptop/PC power leads and other similar equipment which has a cloverleaf-shaped connector.
PASSPTA29 - IEC Plug (C14)
to Cloverleaf (C5) PAT Adaptor
This adaptor is used to connect to laptop power supplies, portable projectors and other similar equipment.
PASSPTA28 - IEC Plug (C14)
to Fig 8 (C7) Pat Adaptor
You'll find several appliances such as game consoles, laptop power supplies, audio/visual equipment and more use this type of connector - with this adaptor, you can connect them up to your PAT tester.
CK Tools AV05050 5 Piece Insulated Screwdriver Kit
A handy set of insulated screwdrivers (suitable for live working to 1000V) suitable for a wide variety of applications.
Includes 2 x PZ (1 x 80 and 2 x 100mm) + 3 x slotted (3 x 75, 4 x 100 and 5.5 x 125mm) screwdrivers in a carrying case.
WM1 - 500 x Passed PAT Testing Labels
You'll need these every time an appliance passes a test - just tear one off, fill in the fields (appliance ID, your name, test date and next test due date) and stick on the appliance when done.
WM6500 - 500 x Circular Passed PAT Testing Labels
These circular-shaped PAT labels are great for plug tops and any other appliance. The labels also include space for ticking the month/year the next test is due.
WM12 250 - 250 x Cable Wrap Labels
These passed labels wrap around a wire/cable from an appliance and are recommended for use with power supplies or on appliances where you can't stick a label. They also include space for writing your appliance ID, name, test date and next test date.
WM7 250 - 250 x Failed PAT Testing Labels
You won't need these as often as your passed labels, but you'll need to apply one of these whenever an appliance fails a test. If it does fail, the item should be taken out of service for repair or replacement
Seaward PATGuard Elements Manual-Entry Software
Keep a database of your PAT testing information on your PC and print reports with software. Please note that this software is manual entry; you cannot download directly from the PAT tester and you will need to type in records by hand.
Seaward PrimeTest 100 FAQs
We often get asked a lot of questions about the PrimeTest 100 capabilities, functions and other quirks. That's why we've put together this handy FAQs section to answer all of these common questions!
Is The PT100 Suitable For Testing Mains Sockets?
Yes! After switching on the tester by holding down both the class I and class II buttons until it beeps twice, plug a short IEC lead into the tester's IEC socket and the 13A plug end directly into the mains socket.
If the test is a pass, the letters 'LN', 'LE' and 'NE' will be displayed on the left-hand side of the screen. These values will be displayed alongside a tick (√) icon and the word 'PASS'.
If a problem is detected and there's a fault in the socket (e.g. disconnected earth), a cross will be displayed against each portion of the test which failed.
What Does LO LOAd On The Screen Mean And Why Is It Displayed?
You'll likely see this before an insulation test; this is because the PT100 is checking the load (in Watts) of the equipment but it can't read below 200W.
If the wattage of the equipment under test is below that level (for example a 23W battery charger), the LO LOAd icon will be displayed. This is not a fault; it is only indicating that it can't see a load.
To fix, simple press the button again and the tester will continue testing. The usual cause for this display is that you may not have switched the equipment on, in which case you should immediately switch it on and try again.
Does The Primetest 100 Have Any Quirks?
The PrimeTest 100 has some interesting features.
The abbreviations on the screen are as follows:
- “Rpe” stands for Resistance of Protective Earth and is measured in Ohms.
- “Riso” stands for Resistance of Insulation and is measured in MegOhms.
- “Ileak” stands for Touch or Leakage Current and is measured in milliamps.
- Bundle Deals (3)
- Related Items
£580.00Save £212.00£368.00£441.60 (inc. VAT)View Product
£355.00£426.00 (inc. VAT)View Product
£399.00£478.80 (inc. VAT)View Product
- Accessories (10)
- Technical Specs
Do you have a question about this product? Call our customer service team on 01642 631685.
Seaward PrimeTest 100 Technical Specifications
PAT TESTS Earth Continuity Test Current ±200mA DC Display Range 0.00 to 19.99Ω Pass Value 0.2Ω Insulation Range Test Voltages 500V DC Display Range 0.2 to 19.99MΩ Pass Value 2MΩ IEC Lead Test Tests Performed Earth Continuity
Live, Neutral Continuity and Polarity
Equivalent Leakage Class I Test Voltage 40V, 50Hz AC Nominal Display Range 0.10mA to 19.99mA Pass Value 0.75mA Equivalent Leakage Class II Test Voltage 40V, 50Hz AC Nominal Display Range 0.10mA to 19.99mA Pass Value 0.25mA CIRCUIT TESTS Power Socket Test Input Voltage Range 230V + 10% - 15% AC Indicators Phase to Earth Voltage
Phase to Neutral Voltage
Additional Information Weight and Dimensions 800g/26cm (I) x 10cm (w) x 5.5cm (d) Power Source 6 x AA batteries
