Seaward Apollo 600+ PAT Tester Elite Bundle Kit

The  Seaward Apollo 600+ PAT Tester Elite Bundle Kit includes:

  • 1 x Seaward Apollo 600+ PAT Tester
  • 1 x Seaward Test ‘n’ Tag Elite Bundle Kit

For further information regarding these products, please see the descriptions below.

Seaward Apollo 600+ PAT Tester Description

The Seaward Apollo 600+ PAT Tester is the most sophisticated PAT Tester in Seaward’s Apollo+ range. It has been optimised for health and safety applications and to this end includes a number of features not present on its sister products, the Apollo 500+ and 400+. These include:

  • A colour camera for capturing evidence of visual inspections
  • A universal risk assessment tool for recording hazards, calculating risks and planning and documenting corrective actions
  • Onboard reports for fire detection and emergency lighting

Similarly, like its sister products the 400+ and 500+, the Apollo 600+ is also suitable for ensuring compliance with the IET 5th Edition Code of Practice and therefore includes an eclectic variety of tests:

  • Low current earth continuity test (with Zap circuit) guaranteeing accurate measurements
  • Insulation resistance
  • IEC lead test
  • Protective conductor current
  • Touch current
  • Load power/current
  • Alternative leakage current
  • RCD test
  • Power socket test
  • Point to point fixed appliance testing for earth continuity and insulation resistance

The user is able to create up to 100 electrical test and visual inspection sequences. Furthermore, like its sister products, the Seaward Apollo 600+ PAT Tester includes a risk-based retest period calculator for ascertaining the retest period of each appliance in accordance with the IET 5th Code of Practice.

Results and images can be saved to the Apollo 600+’s extensive memory (capacity for 50 000 results and 2000 images) and may be downloaded to a PC via a USB cable or can be sent to an Android device via Bluetooth. Alternatively, the user may download this information directly onto a USB drive.

The Seaward Apollo 600+ PAT Tester is suited to high volumes of portable appliance testing and as such includes a number of updates which help to ensure this capability.

Hardware Features

Includes a removable, interchangeable, rechargeable battery pack which works to minimise downtime, especially as the Seaward Apollo 600+ PAT Tester may also be powered using a mains supply.

Further to this, the Seaward Apollo 600+ PAT Tester is supplied with robust probes and test leads which feature a stronger PVC insulation, ensuring that this tester is suitable for more demanding applications.

Firmware Features

  • User permissions for Bluetooth
  • Ability to delete unwanted results
  • An advanced search function has been added to the 'View Data Menu'; it allows the user to filter results according to specifications such as the PASS/FAIL status of each test
  • ‘View Data Menu’ has been optimised to facilitate faster scrolling
  • ‘After Test’ function has been expanded to accommodate the automatic printing of test results
  • ‘Worst’ and ‘Last’ result options have been added to the leakage test setup
  • Predictive drop-down menus may be tailored to the user’s needs via the deletion of unnecessary options
  • USB on-the-go technology allows the user to download information to his/her Android device
  • Name downloaded files using unique identifiers, ensuring that they are easy to locate
  • The newly added socket outlet test allows the user to measure main voltage and outlet wiring polarity
  • Asset’s ID is displayed on all test screens
  • Review step allows the user to check test information before adding any final comments

These  Seaward Apollo 600+ PAT Tester has the ability to read and/or print 2D QR codes when used with any of the following products:

  • Seaward’s FREE QR Data View App – scan QR codes and then send test data via email
  • Seaward’s Test ‘n’ Tag Elite 2 Printer – see below
  • Seaward’s Bluetooth 2D Elite Barcode Scanner – see below

Software Compatibility

Adding to the Seaward Apollo 600+ PAT Tester’s  Bluetooth, QR printer and scanner compatibility is its compatibility with Seaward’s PAT Guard 3.4 Software with Time Manager (NOT included). This software package can be used to manage results and images, create reports, as well as supervise teams of workers.

The Seaward Apollo 600+ PAT Tester is a sophisticated, comprehensive instrument ideal for high volumes of PAT testing and conducting health and safety checks.

Seaward Apollo 600+ PAT Tester Key Features

  • Most sophisticated model in Seaward’s Apollo+ range
  • Optimised for health and safety applications
  • Integrated colour camera
  • A built-in universal risk assessment tool
  • Onboard reports for fire detection and emergency lighting
  • Suitable for maintaining compliance with the IET 5th Edition Code of Practice
  • Low current earth continuity test (with Zap circuit) guaranteeing accurate measurements
  • Insulation resistance
  • IEC lead test
  • Protective conductor current
  • Touch current
  • Load power/current
  • Alternative leakage current
  • RCD test
  • Power socket test
  • Point to point fixed appliance testing for earth continuity and insulation resistance
  • Create up to 100 electrical test and visual inspection sequences
  • Risk-based retest period calculator
  • Extensive memory – capacity for 50 000 records and 2000 images
  • Download information to a PC via a USB cable
  • Send data to an Android device via Bluetooth
  • Download information directly to a USB drive
  • Hardware and firmware updates
  • QWERTY keyboard
  • Colour, high-definition display
  • Removable, interchangeable, rechargeable battery pack
  • Can be powered using a mains supply
  • Robust probes
  • Test leads featuring stronger PVC insulation
  • Suitable for demanding applications
  • Print and read 2D QR Data Codes when used with selected Seaward products (see below)
  • New user permissions for Bluetooth
  • Ability to delete unwanted results
  • An advanced search function that allows the user to filter results according to specifications, such as the PASS/FAIL status of each test, has been added to the ‘View Data Menu’
  • ‘View Data Menu’ has been optimised to facilitate faster scrolling
  • ‘After Test’ function has been expanded to accommodate the automatic printing of test results
  • ‘Worst’ and ‘Last’ result options have been added to the leakage test setup
  • Predictive drop-down menus may be tailored to the user’s needs via the deletion of unnecessary options
  • USB on-the-go technology allows the user to download information to his/her Android device
  • Name downloaded files using unique identifiers, ensuring that they are easy to locate
  • The newly added socket outlet test allows the user to measure main voltage and outlet wiring polarity
  • Asset’s ID is displayed on all test screens
  • Review step allows the user to check test information before adding any final comments
  • Compatible with Seaward’s PAT Guard 3.4 Software with Time Manager (NOT included)

What's Included with the Seaward Apollo 600+ PAT Tester?

  • Seaward Apollo 600+ PAT Tester
  • Professional Carry Case
  • Red Test Lead 1.2m with Alligator Clip
  • Black Test Lead 1.2m with Alligator Clip
  • IEC Extension Lead, 0.5m
  • Black Mains Lead
  • USB Download Lead
  • Apollo+ Check Box
  • UKAS Calibration Certificate
  • Quick Start Guide

Seaward Test ‘n’ Tag Elite Bundle Kit Description

In order for the Seaward Apollo 600+ PAT Tester to read and print 2D QR codes it must be used with the Seaward Test ‘n’ Tag Elite 2 Printer and/or the Seaward 2D Barcode Scanner, both of which are included in this kit:

  • 1x Test ‘n’ Tag Elite 2 Printer: print labels with QR data codes
  • 1x 2D Barcode Scanner:  scans QR codes to access previous test information. These details automatically populate the relevant fields in the Apollo 600+’s test setup thereby facilitating quick retesting.
  • 2x Elite Durable Labels 25mm
  • 2x Elite Durable Labels 75mm
  • 1x Apollo Kit Carry Case
  • 1x 110V Test Adapter

The Seaward Test ‘n’ Tag Elite Bundle Kit is ideal for expanding the Seaward Apollo 600+ PAT Tester’s scope for use.

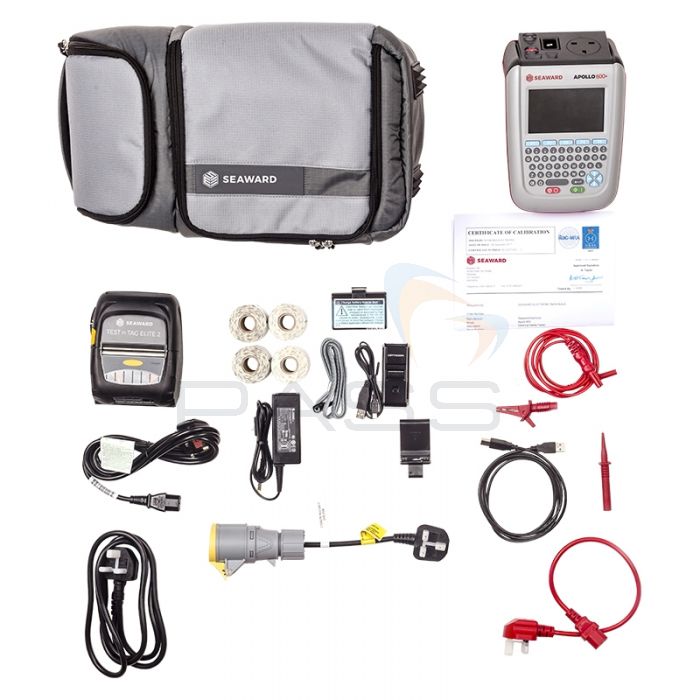

What’s Included in the Seaward Apollo 600+ PAT Tester Elite Bundle Kit?

  • Seaward Apollo 600+ PAT Tester and Accessories
  • Seaward Test ‘n’ Tag Elite Bundle Kit

Seaward Apollo 600+ Technical Specifications

Earth Continuity
Test Current ±200mA DC
Display Range 0.01 to 19.99Ω
Pass Value User defined
Insulation Resistance
Test Voltage 500V / 250V DC @ 1mA nominal
Display Range 0.01MΩ to 19.99MΩ
Pass Value User defined
IEC Lead Test
Test Voltage 5V AC nominal
Test Live/neutral checks for o/c, s/c and crossed
Protective Conductor Current/Load
Test Voltage Supply voltage, maximum load current 16A
Display Range 0.01mA to 19.99mA
Pass Value User defined
Touch Current
Test Voltage Supply voltage, maximum load current 16A
Display Range 0.00 to 5mA
Pass Value User defined
Load Power/Current
Test Voltage 230V + 10%, maximum load current 16A
Test Duration Programmable up to a maximum of 255s depending on load. i.e. max duration is reduced for high loads
Display Range 0.00kVA to 4.00kVA
0.00A to 16.00A
Alternative Leakage Current
Test Voltages >25V AC <50V AC
Display Range 0.00mA to 19.99mA
Pass Value User defined
RCD Test
Test Voltage 230V + 10%, -15%
Test Current 15mA/30mA rms sinusoidal
Display Range 0ms to 2000ms
Test Method Internal isolation to avoid tripping distribution board RCDs
Power Socket Test
Voltage Range 207V to 253V AC
Indication of Voltage Potential Line potential phase to earth
Line potential phase to neutral
Line potential neutral to earth
General Specifications
Memory Size 50000 records + 2000 photos
Weight 1.5kg
Dimensions 230 x 150mm x 100mm
Power Source Mains or rechargeable battery pack

Comparison Chart

General Features 600+ 500+ 400+
Battery & mains powered
Colour screen & QWERTY keypad
Large internal memory up to 50,000 records and 2,000 photos up to 10,000 records up to 2,000 records
Bluetooth scanner & printer compatible
Password controlled user accounts
Set up multiple user accounts with varying levels of privileges
Clone facility to set up multiple testers
Checkbox supplied as standard
Test Inspection Features 600+ 500+ 400+
Auto-increment asset ID
PAT Setup option to allow for custom menus
Enter asset description after test using the keypad or barcode scanner
Comprehensive electrical safety test features
Point to point measurement (Rpe & IR)  Optional accessory required
User configurable electrical test/visual inspection sequences 100 100 25
User set sites & locations 100 100 50
Risk-based retest period calculator
User definable comments lines against test records 4 4
Configurable checklists for any workplace test or inspection (user tests)
Onboard camera
Universal risk assessment
Health & safety certificates
Data Transfer 600+ 500+ 400+
1D and 2D Scanner connectivity Reads 1D Data Only
Read QR code (2D) labels with 2D scanner
RFID reader connectivity
Print Pass & Fail labels with 1D barcode
Print Pass & Fail labels with QR code (2D)
Add your company logo to labels (on large 1D labels only)
Select from various label formats to print 6 6 6
Download to PC via USB cable
Data Transfer via USB flash drive
Filter results to be downloaded
Upload previous results to the tester for a retest
