Metrel MI3360 OmegaPAT XA PAT Tester – PAT Essentials Kit (Bundle 1)

SKU: OMEGAPATXABUNDLE1
In Stock
Reward Points: 2370 [?]

  • Includes the Metrel MI3360 OmegaPAT XA PAT Tester

  • Optimised for testing Class I, Class II and Class III appliances used in hotels and schools

  • Supplied with a number of additional PAT testing accessories including labels, adapters and screwdrivers

-+
£1,185.00
£1,422.00 (Inc. VAT)

Login / Sign Up
Why do I need a calibration?

Found it Cheaper? Found it Cheaper? Price Match
Need Help? Need Help? Contact Us

Metrel MI3360 OmegaPAT XA PAT Tester – PAT Essentials Kit (Bundle 1)

Click to enlarge

Select a Free PAT Bundle

  • PAT Handbook, Logbook, Cloverleaf & 500 Pass / 250 Fail Labels
    FREE   £55.45
  • Description

Metrel MI3360 OmegaPAT XA PAT Tester – PAT Essentials Kit (Bundle 1) Details

The Metrel MI3360 OmegaPAT XA PAT Tester – PAT Essentials Kit (Bundle 1) consists of the Metrel MI3360 OmegaPAT XA PAT Tester supplied with the standard manufacturer’s accessories, and a variety of additional PAT testing accessories including adapters, labels and a microwave leakage detector. For a comprehensive list of all the items included in this kit, please see the ‘What’s Included?’ section.

For more information regarding the Metrel MI3360 OmegaPAT XA PAT Tester, please see the following description.

Metrel MI3360 OmegaPAT XA PAT Tester Description

The Metrel MI3360 OmegaPAT XA PAT Tester is a downloadable portable appliance tester optimised for checking Class I, Class II and Class III appliances. It is therefore ideal for checking a vast majority of appliances found in hotels, schools and other public establishments.

To this end, it includes a selection of pre-programmed test sequences optimised for checking a variety of specific appliances. These test sequences can be run using the AUTOSEQUENCES® function. Further to this, the Metrel MI3360 includes integrated filters which ensure that the test sequences are relevant to the area of application; these filters also make it easier for the user to select the most appropriate test sequence.

The Metrel MI3360 OmegaPAT XA PAT Tester is capable of performing the following checks:

  • Visual inspection
  • Fuse test
  • Continuity/ earth bond resistance 200mA test
  • Insulation resistance (Riso, Riso-S) test
  • Substitute leakage current test
  • Differential leakage current test
  • PE leakage current test
  • Touch leakage current test
  • Polarity/ active polarity test
  • Power (P, S, Q, PF, THDu, THDi, CosØ, I, U) test
  • P-RCD (2-pole, 3-pole, K/Di (varistor), S (3-pole)) test
  • PRCD PE probe test
  • Open conductor test
  • PE conductor test
  • RCD (type A, AC, B, B+, F) test
  • Welding circuit leakage test in accordance with IEC/ EN 60974-4 (using the OPTIONAL Metrel A1422 Active 3-phase Adapter)
  • Primary leakage test in accordance with IEC/ EN 60974-4 (using the OPTIONAL A1422 Adapter)
  • No-load voltage test in accordance with IEC/ EN 60974-4 (using the OPTIONAL A1422 Adapter)
  • Leakage current (using the OPTIONAL Metrel A1283 Current Clamp Adapter)

When used with the OPTIONAL Metrel A1422 Active 3-phase Adapter, the Metrel MI3360 OmegaPAT XA PAT Tester is suitable for checking welding equipment in compliance with IEC/ EN 60974-4. Additionally, this tester includes a testing module for checking all fuse types and features test terminals for checking hard-wired devices.

It is also possible to create personalised AUTOSEQUENCES® and test structures using the above tests. These personalised sequences can be uploaded to the Metrel MI3360 OmegaPAT XA PAT Tester using the included Metrel ES Manager BASIC Software. Alternatively, they can be saved to and easily recalled from the 8GB, microSD memory card. Test results can also be saved to the microSD memory card. It is easy to recall information from the 8GB microSD card as a result of its intelligently designed memory structure; subsequently, this makes conducting periodic re-tests of particular appliances quick and easy.

Alternatively, the efficiency with which re-tests can be conducted may be increased using the Metrel MI3360 OmegaPAT XA PAT Tester’s Bluetooth capabilities. Via Bluetooth, the user can connect the PAT tester to either Metrel’s aMESM Android SW App (NOT included) or a compatible Metrel Bluetooth QR Scanner (NOT included) to read QR codes. The test information contained within these codes is then used to populate the Metrel MI3360’s test setup. Once all the checks have been completed the results and any other new test information can be written into a QR code which can then be printed onto a label using a compatible Metrel Bluetooth QR Label Printer (NOT included).

However; the Metrel MI3360 OmegaPAT XA PAT Tester has also been designed to make the manual entry of test information simple and quick. To this end, it includes a high-resolution, touch-screen, 4.3-inch, TFT display and a keyboard, as well as an advanced user interface.

Further to this, the Metrel MI3360 OmegaPAT XA PAT Tester is able to support multiple user accounts. As such, a number of electricians can configure the PAT tester to include test setups necessary for his/her workload. These specific test setups are then saved to the user’s account (along with test results), ensuring that they remain unaltered while the Metrel MI3360 OmegaPAT XA PAT Tester is used by another individual.

Finally, recorded test results and the included Metrel ES Manager BASIC Software can be used to create professional reports.

The Metrel MI3360 OmegaPAT XA PAT Tester is a comprehensive, adaptable and easy-to-use downloadable PAT tester. It is particularly suitable for those testing Class I, Class II and Class III appliances used in public institutions.

Metrel MI3360 OmegaPAT XA PAT Tester Key Features

  • A downloadable portable appliance tester optimised for checking Class I, Class II and Class III appliances
  • Suitable for checking a vast majority of appliances found in hotels, schools and other public establishments
  • Includes a selection of pre-programmed test sequences optimised for checking various appliances
  • Run pre-programmed test sequences via the AUTOSEQUENCES® function
  • Integrated filters for ensuring that test sequences are relevant to the area of application
  • Integrated filters improve the ease with which appropriate test sequences can be selected
  • Visual inspection
  • Fuse test
  • Continuity/ earth bond resistance 200mA test
  • Insulation resistance (Riso, Riso-S) test
  • Substitute leakage current test
  • Differential leakage current test
  • PE leakage current test
  • Touch leakage current test
  • Polarity/ active polarity test
  • Power (P, S, Q, PF, THDu, THDi, CosØ, I, U) test
  • P-RCD (2-pole, 3-pole, K/Di (varistor), S (3-pole)) test
  • PRCD PE probe test
  • Open conductor test
  • PE conductor test
  • RCD (type A, AC, B, B+, F) test
  • Welding circuit leakage test in accordance with IEC/ EN 60974-4 (using the OPTIONAL Metrel A1422 Active 3-phase Adapter)
  • Primary leakage test in accordance with IEC/ EN 60974-4 (using the OPTIONAL A1422 Adapter)
  • No-load voltage test in accordance with IEC/ EN 60974-4 (using the OPTIONAL A1422 Adapter)
  • Leakage current (using the OPTIONAL Metrel A1283 Current Clamp Adapter)
  • Suitable for checking welding equipment in accordance with IEC/ EN 60974-4 when used with the Metrel A1422 Active 3-phase Adapter
  • Testing module for checking all fuse types
  • Test terminals for checking hard-wired devices
  • Create personalised AUTOSEQUENCES® and test structures
  • Upload personalised AUTOSEQUENCES and test structures to the PAT tester using the included Metrel ES Manager BASIC Software
  • Save personalised test sequences to the 8GB microSD Card
  • Intelligent memory structure makes recalling and re-executing test sequences quick and easy
  • Bluetooth connectivity
  • Connect the tester to the Metrel aMESM Android SW App (NOT included) or a Bluetooth QR Scanner via Bluetooth (NOT included)
  • Print QR labels via Bluetooth and a Metrel Bluetooth QR Label Printer (NOT included)
  • High-resolution, touch-screen, 4.3-inch, TFT display
  • Keyboard
  • Advanced user interface
  • Supports multiple user accounts
  • Create professional reports using recorded test results and the included Metrel ES Manager BASIC Software
  • A comprehensive, adaptable and easy-to-use downloadable PAT tester

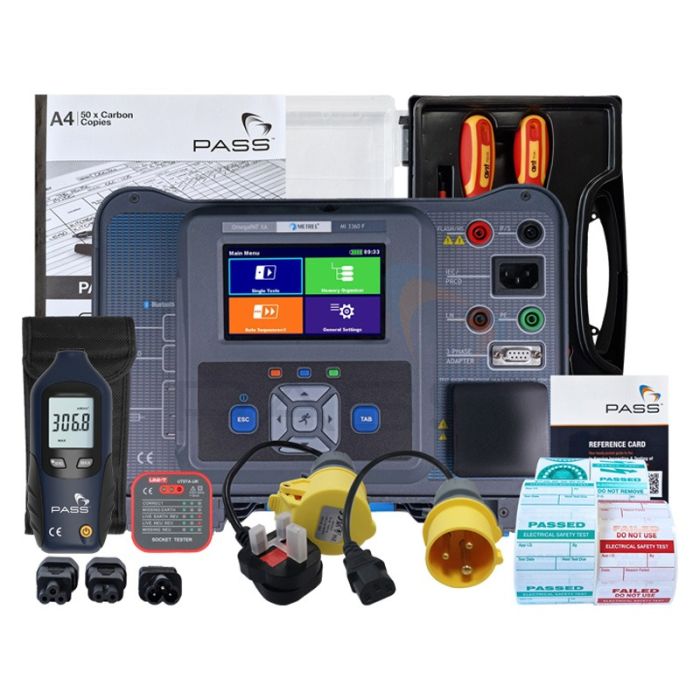

What’s Included in the Metrel MI3360 OmegaPAT XA PAT Tester – PAT Essentials Kit (Bundle 1)?

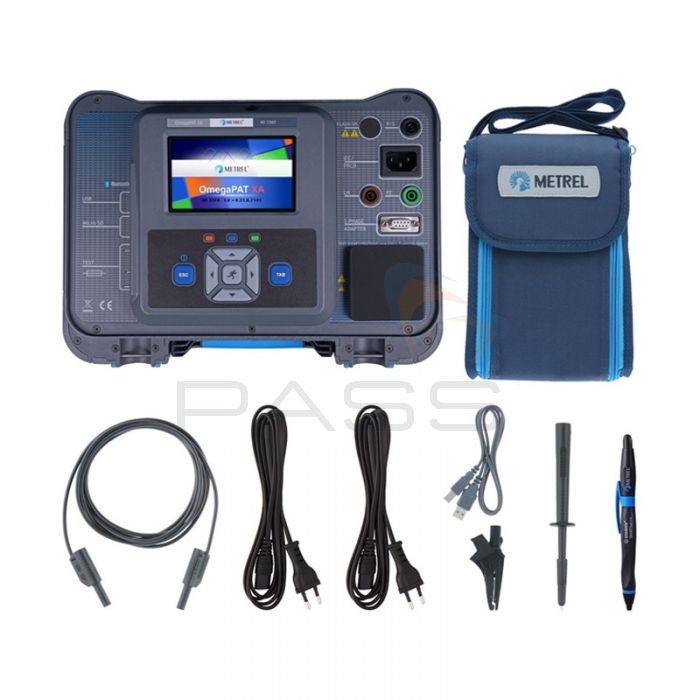

  • Metrel MI3360 OmegaPAT XA PAT Tester
  • Accessory Bag (supplied by Metrel)
  • Smartball Pen with Touchscreen Function (supplied by Metrel)
  • Black Crocodile Clip (supplied by Metrel)
  • Black Test Lead (supplied by Metrel)
  • Black Test Tip (supplied by Metrel)
  • 2m IEC Test Cable (supplied by Metrel)
  • Mains Cable (supplied by Metrel)
  • USB Cable (supplied by Metrel)
  • Calibration Certificate (supplied by Metrel)
  • Short Form Instruction Manual (supplied by Metrel)
  • CD with Instruction Manual (supplied by Metrel)
  • Metrel ES Manager BASIC Software (supplied by Metrel)
  • Socket Tester
  • PAT Testing DVD and Online Exam
  • Handbook of Portable Appliance Testing
  • Microwave Leakage Detector
  • 2x 110V Adapters
  • 3x IEC Adapters
  • 5 Piece Insulated Screwdriver Kit
  • 1000x Passed PAT Testing Labels
  • 500x Circular Passed PAT testing Labels
  • 500x Cable Wrap Labels
  • 250x Failed PAT Testing Labels
Questions?Do you have a question about this product? Call our customer service team on 01642 631685.
  • Technical Specs

Metrel MI3360 OmegaPAT XA PAT Tester Technical Specifications

Continuity / Protective Earth Resistance
Continuity
Ranges 0.00 Ω … 19.99 Ω / 20.0 Ω … 99.9 Ω / 100.0 Ω … 199.9 Ω / 200 Ω … 999 Ω
Resolution 0.01 Ω / 0.1 Ω / 0.1 Ω / 1 Ω \
Accuracy ±(2 % of reading + 2 D) / ± 3 % of reading / ± 5 % of reading / indicative
Operating range (acc. to EN 61557-4) 0.08 Ω … 199.9 Ω
Test currents 0.2 A,10 A, 25 A
Current source (at nominal mains voltage, use of standard accessories)  > 0.2 A at R < 2 Ω
> 10 A at R < 0.1 Ω at 230 V
> 25 A into short circuit at 230 V
Open circuit voltage < 9 V a.c.
Test Terminals
Continuity
R (200 mA) P/S – PE, Socket PE; Socket PE – IEC PE
R (10 A, 25 A) P/S – Socket PE; Socket PE – IEC PE
Protective Earth Resistance
R (200 mA) P/AP – PE, Socket PE
R (10 A, 25 A) P/AP – Socket PE
Insulation Resistance (Riso, Riso-S)
Insulation resistance, Insulation resistance –S (250 V, 500 V)
Range 0.00 MΩ … 19.99 MΩ / 20.0 MΩ … 99.9 MΩ / 100.0 MΩ … 199.9 MΩ
Resolution 0.01 MΩ / 0.1 MΩ / 0.1 MΩ
Accuracy ±(3 % of reading + 2 D) / ± 5 % of reading /± 10 % of reading
Output voltage (Um)
Range 0 V … 600 V
Resolution 1V
Accuracy ±(3 % of reading + 2 D)
Operating range (acc. to EN 61557-2) 0.08 MΩ … 199.9 (999) MΩ
Nominal voltages Un 250 V, 500 V (- 0 %, + 10 %)
Short circuit current max. 2.0 mA
Test terminals Riso LN, Socket LN – PE, Socket PE, P/S
Riso-S LN, Socket LN – P/S
Sub-Leakage Current, Substitute Leakage Current - S (Isub, Isub-S)
Range 0.00 mA … 1.99 mA / 2.00 mA … 19.99 mA
Resolution 0.01mA / 0.01mA
Accuracy ±(3 % of reading + 3 D) / ±(5 % of reading)
Operating range (acc. to EN 61557-16) 0.02 mA … 19.99 mA
Open circuit voltage 230 V a.c., 110 V a.c.
Current calculated to mains supply voltage (110 V or 230 V) is displayed.
Test Terminals Isub LN, Socket LN – PE, Socket PE, P/S
Isub-S LN, Socket LN – P/S
Differential leakage current (Idiff)
Differential leakage current
Range 0.000 mA … 1.999 mA / 2.00 mA … 19.99 mA
Resolution 1 µA / 0.01 mA
Accuracy ±(3 % of reading + 3 D) / ±(5 % of reading)
Power (active) (P)
Range 0 W … 999 W / 1.00 kW … 3.70 kW
Resolution 1W / 10W
Accuracy ±(5 % of reading + 5 D) / ±5 % of reading
Operating range (acc. to EN 61557-16) 0.010 mA … 19.99 mA
Influence of load current < 0.02 mA/A
Test terminals Idiff Socket L,N – Socket PE, P/S
P Socket L – Socket N
PE leakage current (Ipe)
PE leakage current
Range 0.000 mA … 1.999 mA / 2.00 mA … 19.99 mA
Resolution 1µA / 0.01mA
Accuracy ±(3 % of reading + 3 D) / ±(5 % of reading)
Power (active) (P)
Range 0 W … 999 W / 1.00 kW … 3.70 kW
Resolution 1W / 10W
Accuracy ±(5 % of reading + 5 D) / ±5 % of reading
Operating range (acc. to EN 61557-16) 0.010 mA … 19.99 mA
Test terminals Ipe Socket L,N – Socket PE
P Socket L – Socket N
Touch leakage current (Ipe)
Touch leakage current
Range 0.000 mA … 1.999 mA / 2.00 mA … 19.99 mA
Resolution 1 µA / 0.01mA
Accuracy ±(3 % of reading + 3 D) / ±(5 % of reading)
Power (active) (P)
Range 0 W … 999 W / 1.00 kW … 3.70 kW
Resolution 1W / 10W
Accuracy ±(5 % of reading + 5 D) / ±5 % of reading
Operating range (acc. to EN 61557-16) 0.010 mA … 19.99 mA
Test terminals Itou: Socket L,N – P/S
P: Socket L – Socket N
Power
Power (active) (P)
Range 0 W … 999 W / 1.00 kW … 3.70 kW
Resolution 1W / 10W
Accuracy  ±(5 % of reading + 5 D) / ±5 % of reading
Power (apparent) (S)
Range 0 VA … 999 VA / 1.00 kVA … 3.70 kVA
Resolution 1 VA / 10VA
Accuracy ±(5 % of reading + 5 D) / ±5 % of reading
Power (reactive) (Q)
Range ±(0 VAr … 999) VAr / ±(1.00 kVAr … 3.70) kVAr
Resolution 1 VAr / 10 VAr
Accuracy ±(5 % of reading + 5 D) / ±5 % of reading
Power factor (PF)
Range 0.00i … 1.00i / 0.00c … 1.00c
Resolution 0.01
Accuracy ±(5 % of reading + 5 D)
Total Harmonic Distortion (voltage) (THDU)
Range 0.0 % … 99.9 %
Resolution 0.1 %
Accuracy ±(5 % of reading + 5 D)
Total Harmonic Distortion (current) (THDI)
Range 0.00 A … 16.00 A
Resolution  0.01 A
Accuracy ±(3 % of reading + 5 D)
Cosinus Φ (Cos Φ)
Range 0.00i … 1.00i / 0.00c … 1.00c
Resolution 0.01
Accuracy ±(5 % of reading + 5 D)
Current (I)
Range 0.00 A … 16.00 A
Resolution  0.01 A
Accuracy ±(3 % of reading + 5 D)
Voltage (U)
Range 0.0 V … 199.9 V / 200 V … 264 V
Resolution 0.1V / 1V
Accuracy ±(3 % of reading + 10 D) / ±3 % of reading
Test terminals
P,S,Q,PF,THDU,THDI, Cos Φ, I, U Socket L – Socket N
Leaks & Power
Power (active) (P)
Range 0 W … 999 W / 1.00 kW … 3.70 kW
Resolution 1W / 10W
Accuracy ±(5 % of reading + 5 D) / ±5 % of reading
Touch leakage current: (Itou)
Range 0.000 mA … 1.999 mA / 2.00 mA … 19.99 mA
Resolution 1 µA / 0.01 mA
Accuracy ±(3 % of reading + 3 D) / ±(5 % of reading)
Operating range (acc. to EN 61557-16) 0.010 mA … 19.99 mA
Differential leakage current (Idiff)
Range 0.000 mA … 1.999 mA / 2.00 mA … 19.99 mA
Resolution 1 µA / 0.01 mA
Accuracy ±(3 % of reading + 3 D) / ±(5 % of reading)
Operating range (acc. to EN 61557-16) 0.010 mA … 19.99 mA
Influence of load current < 0.02 mA/A
Power (apparent) (S)
Range 0 VA … 999 VA / 1.00 kVA … 3.70 kVA
Resolution 1 VA / 10VA
Accuracy ±(5 % of reading + 5 D) / ±5 % of reading
Power (reactive) (Q)
Range ±(0 VAr … 999) VAr / ±(1.00 kVAr … 3.70) kVAr
Resolution 1 VAr / 10 VAr
Accuracy ±(5 % of reading + 5 D) / ±5 % of reading
Power factor (PF)
Range 0.00i … 1.00i / 0.00c … 1.00c
Resolution 0.01
Accuracy ±(5 % of reading + 5 D)
Total Harmonic Distortion (voltage) (THDU)
Range 0.0 % … 99.9 %
Resolution 0.1 %
Accuracy ±(5 % of reading + 5 D)
Total Harmonic Distortion (current) (THDI)
Range 0.00 A … 16.00 A
Resolution 0.01 A
Accuracy ±(3 % of reading + 5 D)
Cosinus Φ (Cos Φ)
Range 0.00i … 1.00i / 0.00c … 1.00c
Resolution 0.01
Accuracy ±(5 % of reading + 5 D)
Current (I)
Range 0.00 A … 16.00 A
Resolution 0.01 A
Accuracy ±(3 % of reading + 5 D)
Voltage (U)
Range 0.0 V … 199.9 V / 200 V … 264 V
Resolution 0.1V / 1V
Accuracy ±(3 % of reading + 10 D) / ±3 % of reading
Test terminals
P,S,Q,PF,THDU,THDI, Cos Φ, I, U Socket L – Socket N
Idiff Socket L,N – Socket PE, P/S
Itou Socket L,N – P/S
PRCD test
Trip-out time (tΔN)
Range 0 ms … 300 ms (999 ms*) (½xI∆N) / 0 ms … 300 ms (I∆N) / 0 ms … 40 ms (5xI∆N)
Resolution 1ms / 1ms / 1ms
Accuracy ±3ms / ±3ms / ±3ms
*According to standard AS/NZS 3017
Trip out-current (IΔ)
Range 0.2xI∆N … 2.2xI∆N
Resolution  0.05xI∆N
Accuracy ±0.1xI∆N
Test current type sine-wave (AC), pulsed (A,F), smooth DC (B,B+)
Test currents (IΔN) 10 mA, 15 mA, 30 mA;.................100 mA and 300 mA with A1322, A1422
Test current size (PRCD standard is AS/NZS 3017) ±5%
Test current size (general) -0/+10%
Test terminals tΔN, IΔ Socket – IEC
RCD Test
Trip-out time (tΔN)
Range 0 ms … 300 ms (999 ms*) (½xI∆N) / 0 ms … 300 ms (I∆N) / 0 ms … 40 ms (5xI∆N)
Resolution 1ms / 1ms / 1ms
Accuracy ±3ms / ±3ms / ±3ms
*According to standard AS/NZS 3017
Trip out-current (IΔ)
Range 0.2xI∆N … 2.2xI∆N
Resolution 0.05xI∆N
Accuracy ±0.1xI∆N
Contact voltage (Uc)
Range 0.0 V … 19.9 V / 20.0 V … 99.9 V
Resolution 0.1V / 0.1V
Accuracy  (-0 % / +15 %) of reading ± 10 D / 0.1 V (-0 % / +15 %) of reading
Test current type sine-wave (AC), pulsed (A,F), smooth DC (B,B+)
Test currents (IΔN) 10 mA, 15 mA, 30 mA
Test current size (RCD standard is AS/NZS AS/NZS) 5%
Test current size (EN 61008/EN 61009) -0/+10%
Test terminals tΔN, IΔ Mains Socket
PE conductor (PRCD)
PE conductor (Type = 2 pole, 3 pole, S(3 pole)) (R)
Range 0.00 Ω … 19.99 Ω / 20.0 Ω … 99.9 Ω / 100.0 Ω … 199.9 Ω / 200 Ω … 999 Ω
Resolution 0.01 Ω / 0.1 Ω / 0.1 Ω / 1 Ω
Accuracy ±(2 % of reading + 2 D) / ± 3 % of reading / ± 5 % of reading / indicative
Operating range (acc. to EN 61557-4) 0.08 Ω … 199.9 Ω
Current source (at nominal mains voltage, use of standard accessories) > 0.2 A at R < 2 Ω
Open circuit voltage < 9 V a.c.
Test terminals R Socket PE – IEC PE
PE conductor (Type = K/ Di (varistor))
Test principle: A voltage is applied between PE connections of the PRCD-K. There is a ‘PASS’ if PRCD trips.
Open circuit voltage 24 V
Output resistance 220 Ω ± 10 % (IΔN = 30 mA), 620 Ω ± 10 % ((IΔN = 10 mA)
Test terminals Result: Socket – IEC
Open conductor (PRCD)
Test principle: Mains voltage is applied to the mains test socket. Disconnection of the L, N and PE connections is performed inside the instrument. There is a ‘PASS’ if the PRCD trips.
Test terminals L open, N open, PE open Socket – IEC
PRCD PE probe test
Test principle: Mains voltage is applied to the mains test socket. A safe voltage sufficiently high to activate the protection circuit in the PRCD is applied to the P/S terminal.
Test terminals Result (manual): Socket, P/S
Result (auto): Socket – IEC, P/S
Polarity
Test voltage (normal) < 50 V
Test voltage (active) mains voltage
Power consumption of tested device during the active test < 25 VA
Test terminals Result (normal, active) Socket – IEC
Clamp current (I, Idiff, Ipe)
True RMS current using 1000:1 current clamp
Range 0.10 mA … 9.99 mA / 10.0 mA … 99.9 mA / 100 mA … 999 mA / 1.00 A … 9.99 A / 10.0 A … 24.9 A
Resolution 0.01 mA / 0.1 mA / 1 mA / 0.01 A / 0.1 A
Accuracy ±(5 % of reading + 10 digits) / ±(5 % of reading + 5 digits) / ±(5 % of reading + 5 digits) / ±(5 % of reading + 5 digits) / ±(5 % of reading + 5 digits)
Notes Accuracy of current transformer is not considered.
Frequency range of current clamp is not considered.
Test terminals I, Idiff, Ipe: CLAMPS terminals
Insulation resistance Riso (welding equipment)
Riso
Range 0.00 MΩ … 19.99 MΩ / 20.0 MΩ … 99.9 MΩ / 100.0 MΩ … 199.9 MΩ
Resolution 0.01 MΩ / 0.1 MΩ / 0.1 MΩ
Accuracy ±(3 % of reading + 2 D) / ±5 % of reading / ±10 % of reading
Output voltage (Um)
Range 0 V … 600 V
Resolution 1 V
Accuracy ±(3 % of reading + 2 D)
Operating range (acc. to EN 61557-2) 0.08 MΩ … 199.9 (999) MΩ
Nominal voltages Un 500 V (- 0 %, + 10 %)
Short circuit current max. 2.0 mA
Test terminals
Riso LN-W: A 1422 Socket L1 L2 L3 N (16A-5p, 32A-5p or 16A-3p) – W1 W2
Riso W-PE A 1422: Socket PE (16A-5p, 32A-5p or 16A-3p) – W1 W2
Riso LN-PE A 1422: Socket L1 L2 L3 N (16A-5p, 32A-5p or 16A-3p) – Socket PE (16A-5p, 32A-5p or 16A-3p)
Riso LN (Class II) - P A 1422: Socket L1 L2 L3 N (16A-5p, 32A-5p or 16A-3p) – MI 3360: P/S
General Specifications
Mains supply
Supply voltage, frequency 110 V / 230 V AC, 50 Hz / 60 Hz
Supply voltage tolerance 10 %
Max. power consumption 300 VA (without load on test socket)
Max. load 10 A continuous, 16 A short duration, 1.5 kW motor
Mains supply overvoltage category CAT II / 300V
Altitude ≤ 2000 m
Measuring categories
Instrument Cat II / 300 V
Test socket Cat II / 300 V
Plug test cable Cat II / 300 V
Altitude ≤ 2000 m
Protection classifications
Power supply Class I, mains supply, Class II, only battery supply
Pollution degree 2
Degree of protection IP40
IP20 (mains test socket)
Case Shock proof plastic / portable
Display Colour TFT display, 4.3 inch, 480 x 272 pixels
Touch screen Capacitive
Communication
Memory depends on microSD card size
RS232 interfaces 2
USB 2.0 Standard USB Type B
Bluetooth Class 2
Dimensions (w×h×d) 31 cm × 13 cm × 25 cm
Weight 6.1 kg
Reference conditions
Reference temperature range 15 ˚C … 35 ˚C
Reference humidity range 35 % … 65 % RH
Operation Conditions
Working temperature range 0 ˚C … +40 ˚C
Maximum relative humidity 85 % RH (0 ˚C … 40 ˚C), non-condensing
Storage Conditions
Temperature range -10 ˚C … +60 ˚C
Maximum relative humidity 90 % RH (-10 ˚C … +40 ˚C)
80 % RH (40 ˚C … 60 ˚C)
Notes Accuracies apply for 1 year in reference conditions. Temperature coefficient outside these limits is 0.2 % of measured value per ˚C plus 1 digit, otherwise noted.
Fuses 2 x T 16 A / 250 V, 32 mm  6.3 mm / 1500 A
Questions?Do you have a question about this product? Call our customer service team on 01642 631685.
  • Reviews

We'd really appreciate it if you'd review this product

No reviews have been found

Write Your Own Review

You're reviewing: Metrel MI3360 OmegaPAT XA PAT Tester – PAT Essentials Kit (Bundle 1)

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Price
Value
Quality

1.9
