Megger PAT150 PAT Tester - PAT Professional Kit (Bundle 2)

SKU
PAT150BUNDLE2
Rating:
0%
(0)
Reward Points
:
695
£834.00 £695.00
In Stock Free UK Delivery*
Choose a Special Offer
  • PASS The Complete Guide to EET (PAT) Testing Cover
    PASS The Complete Guide to EET (PAT) Testing, 5th Edition
    FREE
    £24.99
  • PASS The Complete Guide to EET (PAT) Testing, 5th Edition SKU: (PASS-PAT-HB)
    FREE
    £24.99
    PASS The Complete Guide to EET (PAT) Testing Cover
Advice & Support
Price Match Request
Free Complete Guide to EET (PAT) Testing
Megger PAT150 PAT Tester - Professional Kit (Bundle 2)
PASS PAT Guide

FREE - PASS The Complete Guide to EET (PAT) Testing, 5th Edition

Buy a PAT testing kit and get an updated PAT Testing Guide worth £24.99. This 129 page indepth PAT testing book is a great addition to your kit. View PAT Guide

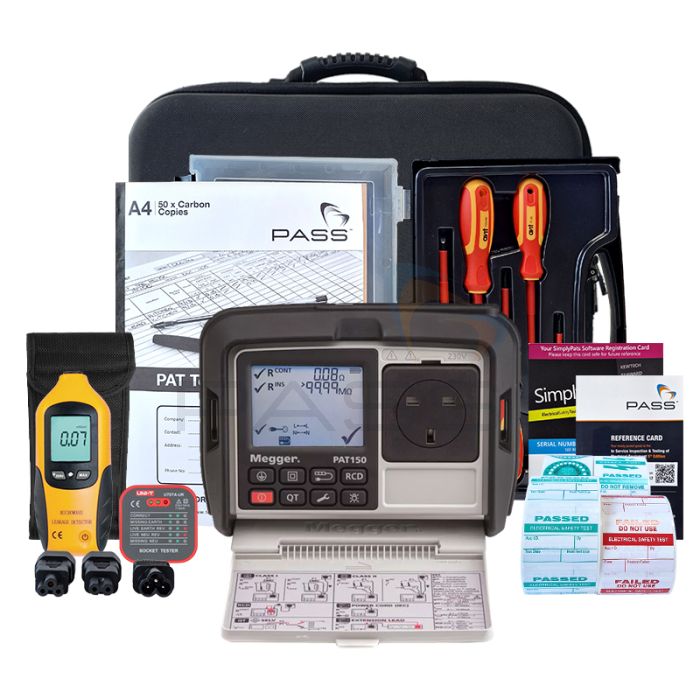

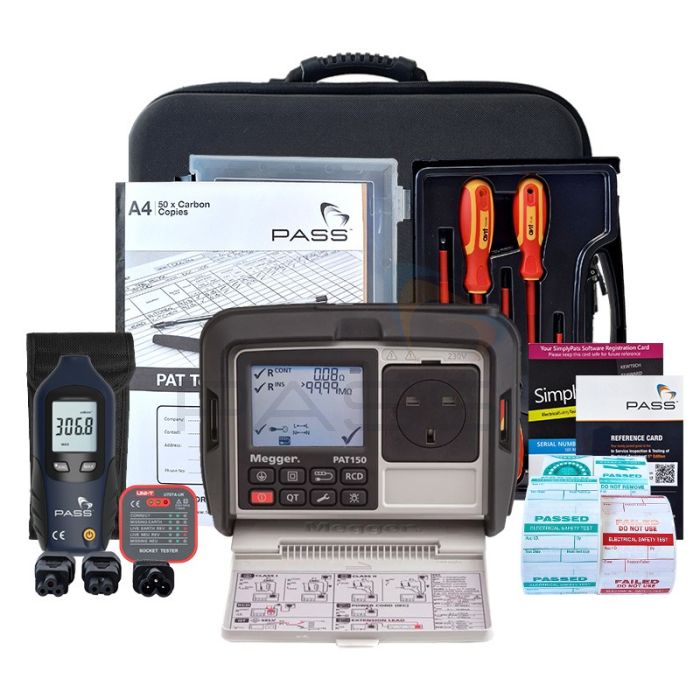

The Megger PAT150 PAT Tester – PAT Professional Kit (Bundle 2) includes Megger’s PAT150 PAT Tester (see the description below) and a selection of additional instruments, tools and accessories (see the list below) optimised for conducting PAT tests on low volumes of portable and fixed appliances.

The Megger PAT150 PAT Tester – PAT Professional Kit (Bundle 2) may prove particularly useful to landlords, as well as those conducting PAT tests in schools, shops and offices.

What’s Included?

As mentioned above the Megger PAT150 PAT Tester – PAT Professional Kit (Bundle 2) includes the Megger PAT150 PAT Tester. This tester comes with the following instruments and accessories as standard:

  • Megger PAT150 PAT Tester
  • Continuity/ Earth Bond
  • SELV/ Mains Voltage Test Lead
  • Extension Lead Adapter
  • Carry case

This professional bundle, which is exclusive to PASS, also includes the following items:

  • Deluxe Carry Case: large enough to contain the Megger PAT150 PAT Tester, Megger’s standard accessories and the exclusive accessories contained within this kit.
  • Socket Tester: designed for checking sockets for wiring faults.
  • eLearning PAT Testing Course - Includes Exam and Certificate: these items have been optimised for convenience and allow the user to complete fully accredited PAT testing training and an online exam at a time and place that suits him/her. The 'pass' certificate may be printed once the exam has been successfully completed.
  • PASS PAT Testing Logbook: containing sheets designed for logging all aspects of each PAT test, including the results.
  • Microwave Leakage Detector: optimised for measuring radiation emissivity and checking the functionality of microwave ovens.
  • IEC Adapter Set: allows the user to connect his/her Megger PAT150 PAT Tester to IEC-type appliances and leads such as computers and laptop power supplies.
  • CK Tools AV05050 5 Piece Insulated Screwdriver Kit: consisting of five screwdrivers fully insulated to 1000V. Ideal for electricians.
  • 500 x Passed PAT Testing Labels: for placing on appliances which have passed the PAT testing procedure.
  • 500 x Circular Passed PAT Testing Labels: small, circular design makes these labels ideal for placing on smaller appliances or plugs.
  • 250 x Cable Wrap PAT Labels: wrap around cables to indicate that they have undergone a PAT testing procedure.
  • 250 x Failed PAT Testing Labels: for indicating that an appliance has failed the PAT testing procedure. Such appliances should be removed and replaced or repaired.
  • SimplyPATS Manual Entry Software: allows the user to record and organise his/her PAT testing results and records. Can be used to create and print reports.

Megger PAT150 PAT Tester Description

The Megger PAT150 PAT Tester has been optimised for convenience, practicality and versatility. It is completely compliant with UK and European requirements for electrical safety testing and includes an extensive variety of testing procedures.

As this model is an upgraded version of the Megger PAT120 PAT Tester it shares some features, functions and measurement capabilities with its sister product.

For instance, and with regards to its practicality and convenience, this instrument, like the PAT120, can be powered using either AA or NiMH batteries and has an average battery life of up to four days (if the user tests 120 assets a day). This combined with its rugged design, featuring rubber armoured cases and hardened scratch-proof glass, makes the instrument suitable for use in environments such as building sites and warehouse where an electricity supply may not be readily accessible.

Furthermore, like its predecessor, the Megger PAT150 PAT tester is able to fully display test results and includes a tick/cross PASS/ FAIL indicator. It also includes the following tests and functions:

  • Test groups: these ensure that the correct tests are performed in the correct sequence for particular types of appliances
  • Includes test groups for class I, class II and extension/power leads
  • Insulation tests: default at 500V, selectable at 250V
  • The tester is able to maintain the selected voltage down to 0.5MΩ when conducting insulation tests
  • Substitute/ alternative leakage test (mains power supply is not needed)
  • Continuity test (20ma DC in both polarities)

As indicated above the Megger PAT150 PAT Tester is an upgraded version of the PAT120 and as such also includes a number of tests, features and functions not found on the simpler model. These include:

  • RCD tests for 10mA and 30mA RCDs and PRCDs
  • An ability to check 10mA and 30mA RCDs for disconnection times and the manual test button function
  • This instrument will not trip external RCDs when conducting RCD tests
  • The user is able to configure the pass limits for each test group
  • To prevent  measurement errors the PAT150 includes a feature for nulling bond lead resistance
  • Live circuit measurements for testing mains supply and socket polarity or electrical circuit voltage to 300V AC
  • Conduct continuity tests, insulation tests, mains powered leakage tests and SELV measurements via the Quick Test button
  • Measure SELV to 50V AC
  • PASS/ FAIL indicator for SELV measurements
  • When performing a mains powered leakage test, the instrument-under-investigation will remain functional
  • NiMH batteries can be recharged whilst connected to the PAT150 PAT Tester

The Megger PAT150 PAT Tester is a practical, simple-to-use and comprehensive PAT tester, ideal for testing low volumes of portable and fixed appliances in accordance with UK and European regulations.

Megger PAT150 PAT Tester Key Features

  • PAT tester optimised for convenience, practicality and versatility
  • Completely compliant with UK and European regulations
  • An upgraded version of the Megger PAT120 PAT Tester
  • Can be powered using AA or NiMH batteries
  • Typical battery life of four days (based on testing 120 appliances per day)
  • Rugged design
  • Rubber armoured cases
  • Hardened scratch proof glass
  • Suitable for use in building sites and warehouses
  • Fully displays test results
  • Includes a tick/cross PASS/FAIL indicator
  • Test groups: automatically performs the necessary test sequences for each type of appliance
  • Test groups for class I, class II and extension/ power leads
  • Default 500V insulation test
  • Selectable 250V insulation test
  • Able to maintain the selected voltage down to 0.5MΩ when conducting insulation tests
  • Substitute/ alternative leakage test
  • Continuity test (20mA in both polarities)
  • RCD tests for 10mA and 30mA RCDs and PRCDs
  • Check 10mA and 30mA RCDs for disconnection times and the manual test button function
  • Will not trip external RCDs
  • Configure pass limits for each test group
  • Null bond lead resistance
  • Live circuit measurements for testing mains supply and socket polarity or electrical circuit voltage to 300V AC
  • Conduct continuity tests, insulation tests, mains powered leakage tests and SELV measurements via the Quick Test button
  • Measure SELV to 50V AC
  • PASS/ FAIL indicator for SELV measurements
  • When performing a mains powered leakage test, the instrument-under-investigation will remain functional
  • NiMH batteries can be recharged whilst connected to the PAT150 PAT Tester
  • A practical, simple-to-use and comprehensive PAT tester
  • Ideal for checking low volumes of fixed and portable appliances in accordance with UK and European regulations

Get More with Our Megger PAT150 PAT Kits!

If you're looking for a comprehensive PAT kit - we've got you covered.

We have two different, great value kit versions of the Megger PAT120 available - take a look at the table below for a closer look about what's in each.

Item Description  Megger PAT150 PAT Essentials Kit (Bundle 1) Megger PAT150 PAT Tester Professional Kit (Bundle 2)

Deluxe Carrying Case

Keep all of your equipment safe and in one place with this large-size carrying case!

(appearance of case may vary depending on current stock)

Socket Tester

Need to check if your sockets are working right? Just plug this in to a standard UK plug socket and if there's a problem, the socket tester will let you know about it!

(socket tester may vary depending on current stock)

eLearning PAT Testing Course - Includes Exam and Certificate

Gain a certificate of competency to carry out PAT testing in just two hours with our online PAT course and exam. Teams of staff may be trained by purchasing the course multiple times; each staff member will be assigned a unique activation code and login.

PASS PAT Testing Logbook

Keep a record of all of your testing with our logbook. The book includes carbon-copied records, allowing you to keep one for yourself and give the other to customers or keep for a reference.

Microwave Leakage Detector

When PAT testing, it's common practice to check microwaves are also not emitting high levels of radiation. With our microwave leakage detector you'll be able to do this testing with ease.

PASSPTA21 - IEC (C13 Female)
to Cloverleaf (C6 Male) PAT Adaptor

You'll need this adaptor to connect your PAT tester to laptop/PC power leads and other similar equipment which has a cloverleaf-shaped connector.

PASSPTA29 - IEC Plug (C14)
to Cloverleaf (C5) PAT Adaptor

This adaptor is used to connect to laptop power supplies, portable projectors and other similar equipment.

PASSPTA28 - IEC Plug (C14)
to Fig 8 (C7) Pat Adaptor

You'll find several appliances such as game consoles, laptop power supplies, audio/visual equipment and more use this type of connector - with this adaptor, you can connect them up to your PAT tester.

CK Tools AV05050 5 Piece Insulated Screwdriver Kit

A handy set of insulated screwdrivers (suitable for live working to 1000V) suitable for a wide variety of applications.
Includes 2 x PZ (1 x 80 and 2 x 100mm) + 3 x slotted (3 x 75, 4 x 100 and 5.5 x 125mm) screwdrivers in a carrying case.

WM1 - 500 x Passed PAT Testing Labels

You'll need these every time an appliance passes a test - just tear one off, fill in the fields (appliance ID, your name, test date and next test due date) and stick on the appliance when done.

WM6500 - 500 x Circular Passed PAT Testing Labels

These circular-shaped PAT labels are great for plug tops and any other appliance. The labels also include space for ticking the month/year the next test is due.

WM12 250 - 250 x Cable Wrap Labels

These passed labels wrap around a wire/cable from an appliance and are recommended for use with power supplies or on appliances where you can't stick a label. They also include space for writing your appliance ID, name, test date and next test date.

WM7 250 - 250 x Failed PAT Testing Labels

You won't need these as often as your passed labels, but you'll need to apply one of these whenever an appliance fails a test. If it does fail, the item should be taken out of service for repair or replacement

SimplyPats Manual PAT Testing Software

Keep a database of your PAT testing information on your PC and print reports with SimplyPats Manual software. Please note that this software is manual entry; you cannot download directly from the PAT tester and you will need to type in records by hand.

-

Megger PAT100 Series Technical Specifications

SpecificationsMegger PAT120Megger PAT150
Environmental Conditions
Operating Ambient 20°C 20°C
Humidity Nominal humidity Nominal humidity
Continuity Testing
Test Voltage Compliance voltage: +4V DC
-0 / +10% (open circuit)
Compliance voltage: +4V DC
-0 / +10% (open circuit)
Test Current Bi-directional +200mA
-0% + 50mA (into 2Ω load)
Bi-directional +200mA
-0% + 50mA (into 2Ω load)
Continuity Accuracy Resistance: ±5% ± 3 digits (0 to 19.99Ω) Resistance: ±5% ± 3 digits (0 to 19.99Ω)
Resistance Resolution 10mΩ 10mΩ
Display Range 0.01 to 19.99Ω 0.01 to 19.99Ω
Continuity Test Nulling Up to 9.99Ω Up to 9.99Ω
Test Duration Selected during test automatically User-selectable from 2 seconds to 20 seconds or selected during test to 180 seconds
Insulation Test
Insulation Procedure 250V DC: -0% / +25% open circuit 250V DC: -0% / +25% open circuit
500V DC: -0% / +25% open circuit
≥ 500V 0% DC across 0.5MΩ load
Short Circuit/Charge Current <2mA DC <2mA DC
Insulation Accuracy ±3% ± 10 digits (0 to 99.9MΩ) ±3% ± 10 digits (0 to 99.9MΩ)
Resolution 0.01MΩ 0.01MΩ
Display Range 0.10M to 99.99MΩ 0.10M to 99.99MΩ
Test Duration Selected during test automatically User selectable from 2 seconds to 20 seconds or selected during test to 180 seconds
Substitute Leakage Test
Leakage Current Accuracy ±5% ± 3 digits Accuracy ±5% ± 3 digits
Test Frequency Nominal mains frequency 50Hz Nominal mains frequency 50Hz
Test Voltage <50V AC <50V AC
Resolution 0.01mA 0.01mA
Display Range 0.10 to 19.99mA 0.10 to 19.99mA
Test Duration User-selectable from 2 secs to 5 seconds User-selectable from 2 secs to 5 seconds
Differential Leakage Test (PAT150 Only)
Test Voltage - Nominal supply voltage 230V AC
Test Frequency - Nominal mains frequency 50Hz
Test Accuracy - ±5% ±3d ± 3μA/A
Resolution - 0.01mA
Display Range - 0.10 to 19.99mA
Test Duration - User-selectable from 2 seconds to 5 seconds
Touch Current Test (PAT150 Only)
Test Voltage - Nominal mains 230V AC
Test Frequency - Nominal mains 50Hz
Test Accuracy - ±5% ± 3 digits
Resolution - 0.01mA
Display Range - 0.10 to 3.99mA
Test Duration - User-selectable from 2 seconds to 5 seconds
SELV Device Test (PAT150 Only)
Test Voltage - 0 to 300V AC
Measurement Accuracy - ±3% ± 3 digits
Resolution - 0.1V AC
Display Range - 0.1 to 300V AC
Extension Lead Test
Test Voltage 5V 5V
Polarity Lead OK
Live/neutral shorted
Live/neutral reversed
Live/neutral open circuit
Lead OK
Live/neutral shorted
Live/neutral reversed
Live/neutral open circuit
Portable RCD Test (PAT150 Only)
Test Voltage - Nominal mains 230V
Test Frequency - 50Hz
Test Current Accuracy - +2% to +8% (1 x I, 5 x I)
Trip Time Accuracy - ±1% ± 1ms
Trip Time Resolution - 0.01ms
Display Range - 0 to 200ms (1 x I)
0 to 40ms (5 x I)
Mains Supply Test (PAT150 Only)
Frequency Measurement Range - 50Hz
Test Voltage - 40 to 300V AC
Accuracy - ±3% ± 3 digits
Resolution - 0.1V AC
Display Range - 40 to 300V AC
Circuit Test
Test Voltage 5V 5V
Test Frequency Nominal mains 50Hz Nominal mains 50Hz
Test Current <100mA short circuit <100mA short circuit
Safety Instrument designed to IEC 61010-1: 2012
Test leads designed to IEC 61010-031:2005
300 volts to Earth Category II
Mains fuse protection to 250V RMS AC
Instrument designed to IEC 61010-1: 2012
Test leads designed to IEC 61010-031:2005
300 volts to Earth Category II
Mains fuse protection to 250V RMS AC
EMC Designed to meet IEC 61326-1: 2006 and IEC 61326-2-2: 2005 Designed to meet IEC 61326-1: 2006 and IEC 61326-2-2: 2005
Environmental
Operating Temperature 0 to 40°C 0 to 40°C
Storage Temperature -20 to 60°C -20 to 60°C
Humidity 90% RH @ 10 to 30°C
75% RH @ 30 to 40°C
90% RH @ 10 to 30°C
75% RH @ 30 to 40°C
Max Altitude 2000m to full safety spec 2000m to full safety spec
IP Rating IP40 (with front cover closed) IP40 (with front cover closed)
Mechanical (Batteries)
Battery Life 3 days based on 120 tests/day using 2000mAh alkaline batteries 3 days based on 120 tests/day using 2000mAh alkaline batteries
Battery Type Supply voltage
12V DC (alkaline AA LR6)
9.6V DC (NiMH AA LR6)
Supply voltage
12V DC (alkaline AA LR6)
9.6V DC (NiMH AA LR6)
Weight 1150g 1300g
Dimensions 203mm (L) x 148mm (W) x 78mm (H) 203mm (L) x 148mm (W) x 78mm (H)
0 Reviews Overall Rating
Write a Review
Write Your Own Review
You're reviewing:Megger PAT150 PAT Tester - PAT Professional Kit (Bundle 2)
Your Rating
Additional Information
SKU PAT150BUNDLE2
Manufacturer Part Code PAT150BUNDLE2
International Enquiry
