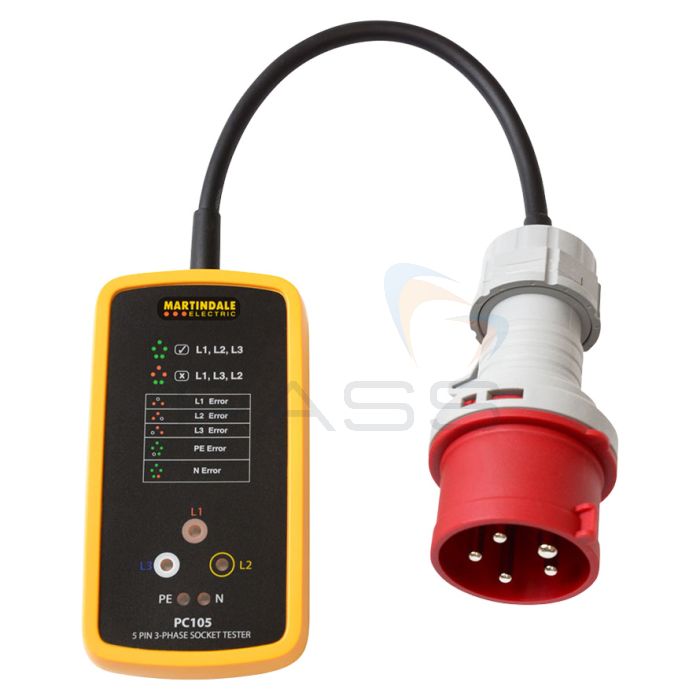

Martindale PC105 Series 3-Phase Industrial Socket Tester, 5-Pin
- Five-pin connector plug
- LED indicators
- 7 wiring condition checks
- 16A, 32A, or 63A models
SKU
MARPC105-SERIES
The Martindale PC105 Series 3-phase socket testers feature bright LEDs that display faults with individual descriptions.
The instruments check supply faults and incorrect wiring of an IEC 60309 5-pin socket outlet.
They automatically start to test when connected to the supply. The unit will check for phase presence, sequence, and PE presence.
16A, 32A, or 63A scoket ratings are available, please note only the 32A and 63A versions include a neutral-to-earth check.
- 3 Phase Industrial Socket Testers
- Phase Sequence Indication
- Bright LED indication
- 2-year Martindale warranty
- 5 pin configuration
- 7 wiring condition checks
- Neutral/Earth check (32A and 63A only)
What's Included?
- Choice of tester
- User manual
Product Range
- Martindale P105-16 3-Phase Industrial Socket Tester, 5-Pin, 16A
- Martindale P105-32 3-Phase Industrial Socket Tester, 5-Pin, 32A
- Martindale P105-63 3-Phase Industrial Socket Tester, 5-Pin, 63A
£82.00
£98.40 inc vat
3 Options in Stock:
Available Next Working Day*
Technical Information
Specification
| P105-16 | P105-32 | P105-63 | |
|---|---|---|---|
| Socket Rating | 16A | 32A | 63A |
| Input Voltage Range | 380V to 415V AC (Phase to Phase) | ||
| Input frequency | 50Hz | ||
| Input current | <20mA | ||
| Supply | From the circuit under test | ||
| Complies with | BS EN 61010-1 Class II Double Insulation EMC: BS EN 61326-1 |
||
| Dimensions | 131 x 94 x 54mm | ||
| Weight | 550g approx. | ||
| Includes | User manual | ||
