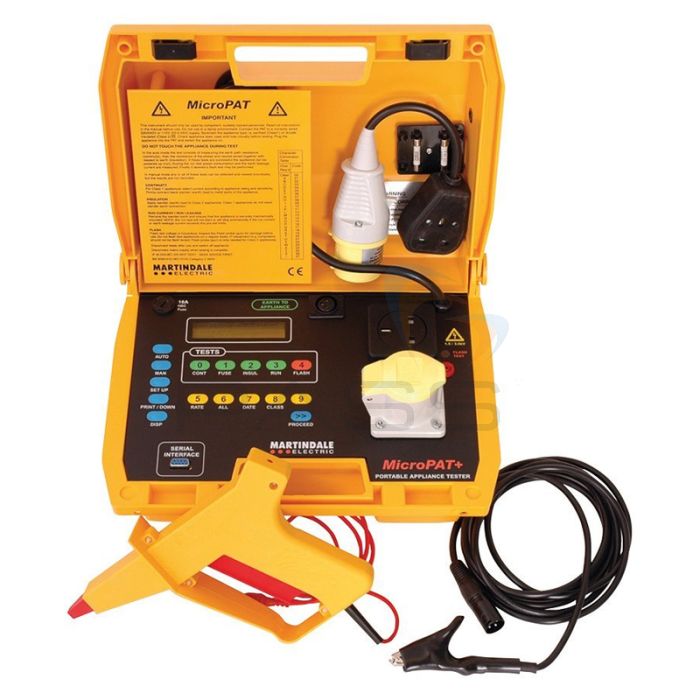

Martindale's MicroPAT+ is built for professional users with fully downloadable memory, flash testing capability and compatibility with barcode scanners to improve asset management.
The MicroPAT+ is made in compliance with all current PAT testing regulations and can test class I and 2 appliances (including computers) and is compatible with both 240V and 110V equipment. Testing can be controlled manually or a dedicated automatic mode will cycle through appropriate tests depending on the connected appliance.
As standard, the MicroPAT+ includes a custom-designed gun probe for flash testing. It can also perform earth continuity tests, insulation tests, run tests and earth leakage tests.
Up to 1250 records can be stored on the MicroPAT+'s internal memory. This data can be downloaded into compatible software on a PC such as SimplyPATs (sold separately).
When done testing, simply close the lid of the MicroPAT and carry it like a briefcase using the built-in handle. Ideal for keeping your tester protected and for transporting from test to test!
*Please note that the MicroPAT requires a separate breakout box - part code MARLTDV - to carry out testing of IEC and extension leads.
Martindale MicroPAT Plus PAT Tester Key Features
- Complies with all current PAT testing regulations
- Tests class 1 and 2 appliances (including IT equipment)
- Tests both 240V and 110V equipment
- Custom designed flash safety gun for performing flash testing
- Automatic or manual testing procedures
- Bar code scanner compatible
- Large size memory (1250 tests) with download to PC
- Built into its own protective carrying case
- Run test
- Earth leakage test
- Earth continuity test
- Insulation test
What's Included?
- Martindale MicroPAT Plus PAT Tester
- Earth Bond Lead
- 240V Socket to 110V Plug
- Flash Gun
- Instruction Manual
- Accessory Carrying Case
MicroPAT+ Bundle Offers
Want to download your data into PC, or speed up your asset management with a barcode scanner? Our kits come with all of the items you'll need for these purposes, plus other essential accessories such as labels, microwave leakage detector and more.
This table breaks down exactly what's included in each kit.
MicroPAT Plus | Basic | Bundle 1 | Bundle 2 | Bundle 3 |
---|---|---|---|---|
Kit Accessories | ||||
Failed Labels | 250 | 50 | 50 | 50 |
Cable Wrap Labels | 250 | - | - | 500 |
Passed Labels | 500 | 500 | 500 | 500 |
Microwave Leakage Detector & 3 Labels | - |
√ | √ | √ |
2 x 13A Plugs | - |
√ | √ | √ |
Fuse Pack (10 x 13A, 5 x 5A, 5 x 3A) | - |
√ | √ | √ |
3 x Adapters (for testing IT/AV equipment) | - |
√ | √ | √ |
PAT Testing Training DVD with Online Exam | - |
√ | √ | √ |
Socket Tester | - |
√ | √ | √ |
SimplyPATS Downloadable Software | - |
- |
√ | √ |
Barcode Scanner & 2000 Barcode Labels | - | - | - |
√ |
Standard Manufacturer Accessories | ||||
Adapter to Test 230V Plug to Socket Leads | √ | √ | √ | √ |
Soft Carrying Bag | √ | √ | √ | √ |
Earth Bond Test Lead with Croc Clip | √ | √ | √ | √ |
Flash Probe | √ | √ | √ | √ |
Instruction Manual | √ | √ | √ | √ |
Portable Appliance Register | √ | √ | √ | √ |
Martindale MicroPAT Plus Technical Specifications
EARTH CONTINUITY TEST | |
Test Voltage | 6V AC nominal with no load. |
Test Current | 25A AC nominal with 0.1Ω load. (at 240V AC) 10A AC nominal with 0.5Ω load. 100mA (soft test) for ITequipment. |
Display Range | 0 to 1.99Ω |
Accuracy | ±10% ± 1 digit |
INSULATION TEST | |
Test Voltage | 500V DC - 0% + 20%. |
Short Circuit Current | 1mA DC nominal |
Display Range | 0 to 19.9MΩ. |
Accuracy | ±5% ±1 digit |
RUN TEST | |
Display Range | 0 to 3.1kVA. |
Accuracy | ±10% ±1 digit at nominal 240V |
EARTH LEAKAGE TEST | |
Display Range | 0 to 6mA AC |
Accuracy | ±10% ±1 digit |
FLASH TEST | |
Test Voltage | 1.5kV AC - Class I (at nom 240V AC) 3kV AC - Class II |
Display Range | 0 to 3.0mA AC. |
Accuracy | ±5% ±1 digit |
Leads & Adaptors | 1.7 metres fixed mains AC lead with a 13A moulded plug. 1.5 metres fixed earth continuity lead with heavy duty croc clip. 1.3 metre detachable flash gun. 110V 16A plug (BS4343) adaptor to 240V 13A free socket (BS1363). |
SOCKETS | |
Mains/AC | 240V 13A to BS1363, 110V 16A to BS4343 |
Serial Interface | Printer/computer output using a 9 pin ‘D’ type connector RS232 |
Flash | 4mm high voltage safety type |
LAMPS | |
Flash | Neon lamp illuminates when flash test is selected |
DISPLAY | |
LCD | 2 lines x 20 characters. supertwist liquid crystal high contrast display |
CASE | |
Material and Size | ABS/Polycarbonate, 330 x 263 x 144mm |
Reviews
SKU | MICROPATPLUS |
---|---|
Manufacturer Part Code | MPATPLUS |
Model No | MicroPAT Plus |
