Kewtech SMARTPAT PAT Tester Printer Kit

SKU
SMARTPATPRINT1
Rating:
0%
(0)
Reward Points
:
949
£1,138.80 £949.00
In Stock
Free UK Delivery*
Choose a Special Offer
  • PASS The Complete Guide to EET (PAT) Testing Cover
    PASS The Complete Guide to EET (PAT) Testing, 5th Edition
    FREE
    £24.99
  • PASS The Complete Guide to EET (PAT) Testing, 5th Edition SKU: (PASS-PAT-HB)
    FREE
    £24.99
    PASS The Complete Guide to EET (PAT) Testing Cover
    • Updated to include 5th Edition revisions
    • Easy-to-understand explanations, illustrated examples, & quick summaries
    • An invaluable resource for both new and experienced technicians
Advice & Support Call 01642 931329 or contact us
Price Match We won't be beaten, let us know
Free Complete Guide to EET (PAT) Testing

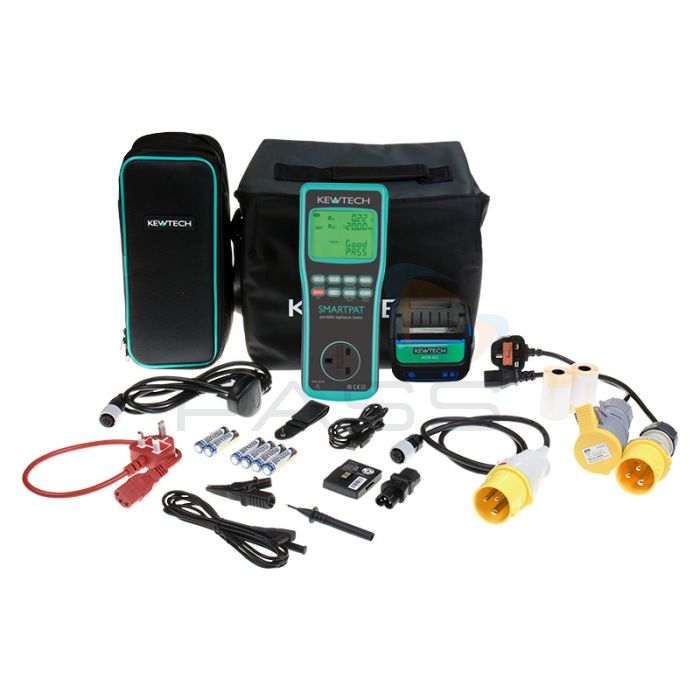

Kewtech SMARTPAT PAT Tester Printer Kit
PASS PAT Guide

FREE - PASS The Complete Guide to EET (PAT) Testing, 5th Edition

Buy a PAT testing kit and get an updated PAT Testing Guide worth £24.99. This 129 page indepth PAT testing book is a great addition to your kit. View PAT Guide

The Kewtech SMARTPAT PAT Tester Printer Kit can be used to test a wide variety of portable appliances; as such, it includes the following items:

  • Kewtech SMARTPAT PAT Tester with Standard Accessories
  • Kewtech EZY110 110V Supply Lead
  • Kewtech KEW80L Bluetooth Label Printer
  • Kewtech KEW80LABELS Labels (2x Rolls of 300 Labels)
  • 110V PAT Adapter – 240 IEC Connector to 110V, 16A, 3-Pin Socket
  • IEC (C13 Female to Cloverleaf (C6 Male) PAT Adaptor
  • PAT Adapter – 240V, 13A Plug to 110V Female 16A, 3-Pin Socket
  • Kewtech Universal 17th Edition Case

Please see below for further details regarding these items.

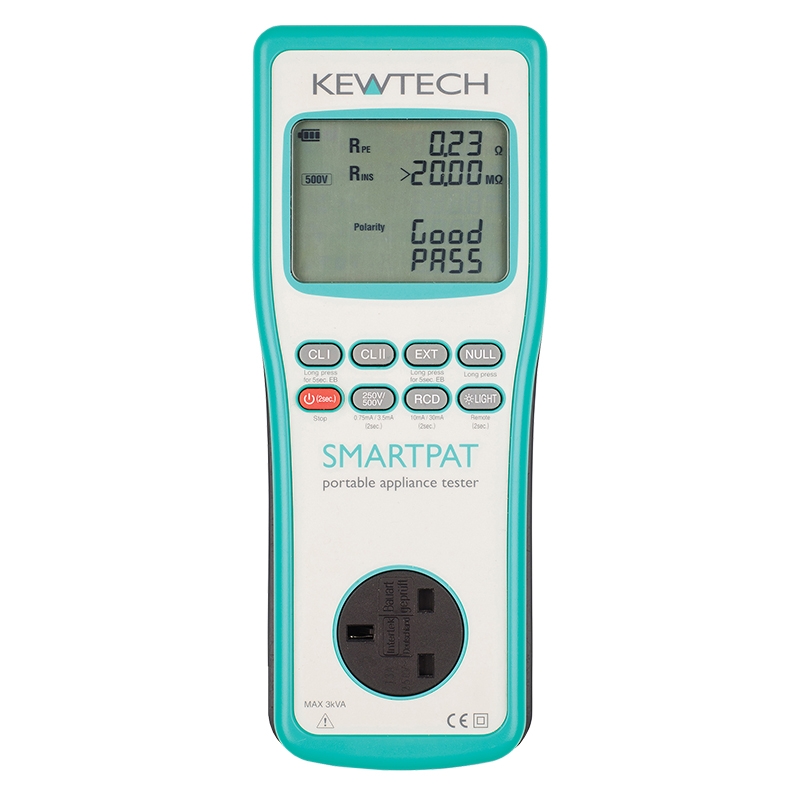

Kewtech SMARTPAT PAT Tester Description

The Kewtech SMARTPAT PAT Tester is a battery operated, non-downloading, PASS/ FAIL PAT tester capable of performing the following tests:

  • 200mA continuity check (IT safe)
  • Quick continuity test
  • 5-second continuity test
  • 250V insulation test (IT safe and ideal for testing surge protected extension leads)
  • 500V insulation test
  • Substitute leakage test
  • Polarity check
  • 110V load and run test
  • 230V load and run test
  • Portable RCD test
  • Extension lead test

It features pre-programmed test sequences for Class I appliances, Class II appliances, and extension leads which may be initiated by pressing the dedicated function buttons. Further to this, the Kewtech SMARTPAT PAT Tester also includes a Test Lead Null function for accuracy, and an Appliance Pre-check for safety.

Moreover, it is capable of testing 10mA and 30mA RCDs without tripping them and can be used with the Kewtech KEWPAT App to perform personalised test sequences. Both of these features expand the Kewtech SMARTPAT PAT Tester’s scope-for-use. Furthermore, the Kewtech KEWPAT App allows the Kewtech SMARTPAT PAT Tester to be used as a downloadable PAT tester.

Numerical test results are displayed with a written PASS or FAIL indication via the Kewtech SMARTPAT PAT Tester’s large, backlit display. The Kewtech SMARTPAT PAT Tester’s backlight will also change colour in accordance with the test result: the backlight becomes green when the appliance has passed and is red when the appliance has failed.

It is possible to conduct up to 1400 tests over the course of the Kewtech SMARTPAT PAT Tester’s replaceable battery’s lifetime.

As standard, the Kewtech SMARTPAT PAT Tester is supplied with an EZYEARTH Earth Continuity Test Lead with Probe and Crocodile Clip, an EZYLEAD Extension Lead Adapter, and an EZYMAINS Lead allowing the user to adapt the Kewtech SMARTPAT PAT Tester to suit the application. Again, expanding its scope-for-use.

The Kewtech SMARTPAT PAT Tester is an easy-to-use, versatile and adaptable PAT tester, capable of serving as a non-downloading PASS / FAIL instrument as well as a downloadable PAT tester (when used with the Kewtech KEWPAT App).

Kewtech SMARTPAT PAT Tester Key Features

  • A battery-operated, non-downloading, PASS/ FAIL PAT tester
  • 200mA continuity check (IT safe)
  • Quick continuity test
  • 5-second continuity test
  • 250V insulation test (IT safe and ideal for testing surge protected extension leads)
  • 500V insulation test
  • Substitute leakage test
  • Polarity check
  • 110V load and run test
  • 230V load and run test
  • Portable RCD test
  • Extension lead test
  • Pre-programmed test sequences for Class I appliances, Class II appliances and extension leads
  • Initiate test sequences by pressing the dedicated function buttons
  • Test Lead null function
  • Appliance Pre-Check function
  • Capable of testing 10mA and 30mA RCDS without tripping them
  • Create and execute personalised test sequences using the Kewtech KEWPAT App
  • Numerical test results, as well as a written PASS/ FAIL indicationS, are viewable via the large, backlit display
  • Green backlight = PASS
  • Red backlight = FAIL
  • Conduct up to 1400 tests over the course of the replaceable battery’s lifetime
  • Supplied with an EZYEARTH Earth Continuity Test Lead with Probe and Crocodile Clip, an EZYLEAD Extension Lead Adapter, and an EZYMAINS Lead
  • An easy-to-use, versatile and adaptable portable appliance tester
  • Capable of serving as a PASS / FAIL, non-downloading PAT tester, as well as a downloadable PAT Tester (when used with the Kewtech KEWPAT App)

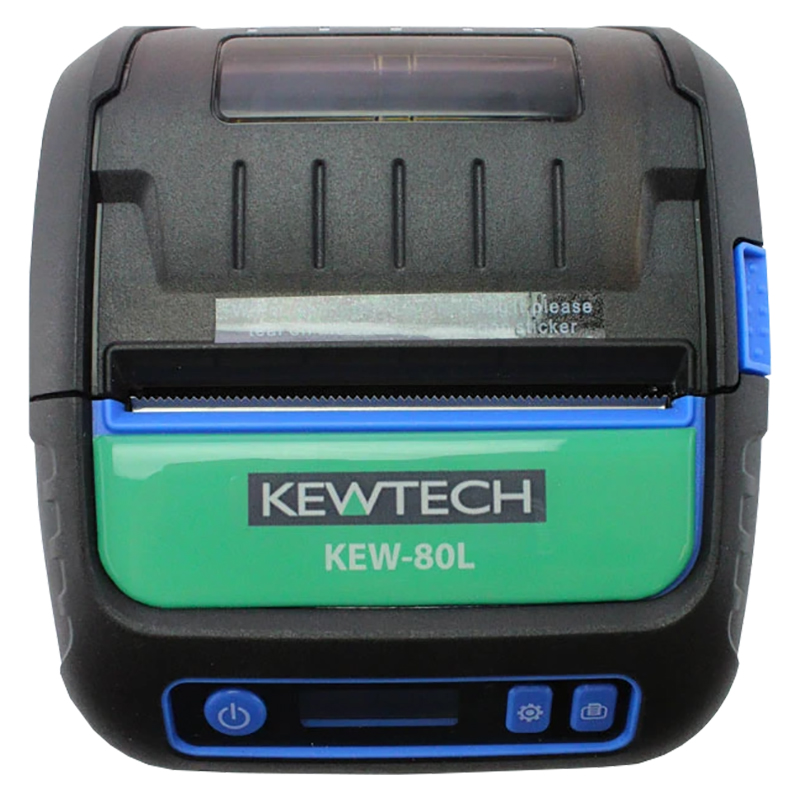

Kewtech KEW80L Bluetooth Label Printer Description

The Kewtech KEW80L Bluetooth Label Printer is an easy-to-use mobile printer with Bluetooth and USB interfaces which enable connection to the KEWPAT App and SMARTPAT PAT Tester.

The Kewtech KEW80L Bluetooth Label Printer can be used with the Kewtech SMARTPAT PAT Tester and KEWPAT App to print PAT testing labels. It can print generic PASS/ FAIL labels, bespoke PASS/ FAIL labels, QR codes and barcodes.

It is compatible with labels rolls with a 50mm diameter and width of up to 80mm. The Kewtech KEW80L Bluetooth Label Printer provides a print width of up to 72mm.

Furthermore, the Kewtech KEW80L Bluetooth Label Printer has been designed to ensure paper labels are easy to load.

Finally, the Kewtech KEW80L Bluetooth Label Printer is powered by 2600mA/ 7.2V rechargeable batteries. It has a battery life of up to 12 hours.

The Kewtech KEW80L Bluetooth Label Printer is an easy-to-use and portable PAT label printer.

Kewtech KEW80L Bluetooth Label Printer Key Features

  • Easy-to-use mobile printer with Bluetooth and USB interfaces
  • Connects to the KEWPAT App and SMARTPAT Tester wirelessly or via USB
  • Use with the KEWPAT App and SMARTPAT Testers to print PAT labels
  • Print generic PASS/ FAIL labels
  • Print bespoke PASS/ FAIL labels
  • Print QR codes
  • Print barcodes
  • Compatible with label rolls with a 50mm diameter and width of 80mm
  • Print width up to 72mm
  • Paper labels are easy to load
  • Powered by 2600mA/ 7.2V rechargeable batteries
  • Battery life: 12 hours
  • Easy-to-use and portable PAT label printer

Kit Overview

Please see the table below for an overview of the items included in this kit.

Kewtech SMARTPAT PAT Tester



Kewtech SMARTPAT PAT Tester with Standard Accessories

The Kewtech SMARTPAT PAT Tester is a battery-operated, PASS/ FAIL PAT Tester that can be converted into a downloading PAT Tester when used with the Kewtech KEWPAT APP. It is suitable for testing Class I appliances, Class II appliances, and extension leads.

As standard, the Kewtech SMARTPAT PAT Tester is supplied with an EZYEARTH Earth Continuity Test Lead with Probe and Crocodile Clip, an EZYLEAD Extension Lead Adapter, and EZYMAINS Lead.

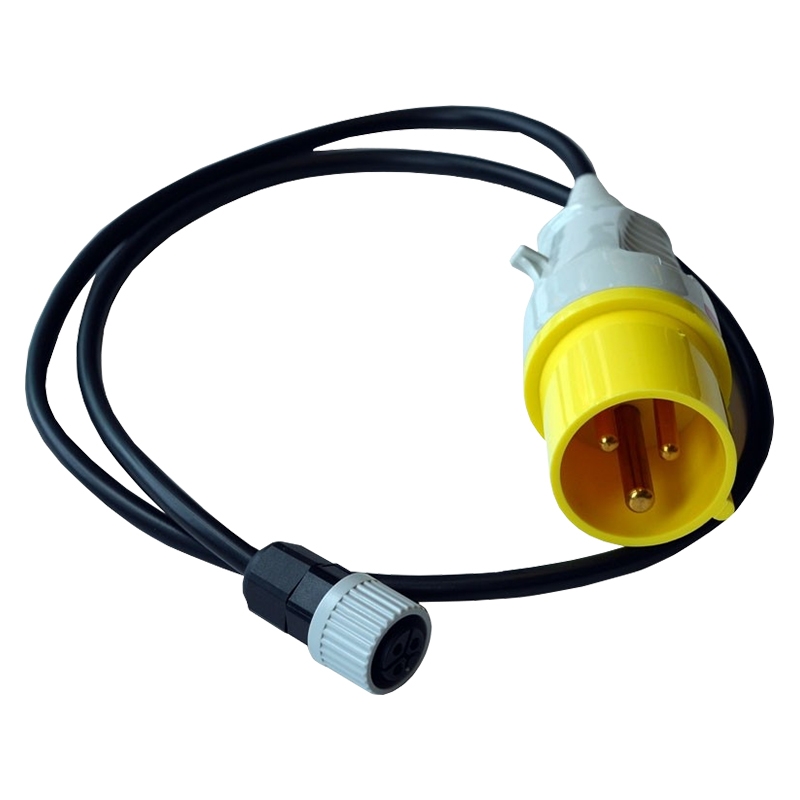

Kewtech EZY110 110V Supply Lead

Kewtech EZY110 110V Supply Lead

Can be used to connect the Kewtech SMARTPAT PAT Tester to a mains supply, allowing it to power the instrument-under-test.



Kewtech KEW80L Bluetooth Label Printer

A compact, mobile printer with a USB and Bluetooth interfaces for connection to the KEWPAT App and SMARTPAT PAT Tester. It can be used to print generic PASS/ FAIL labels, bespoke PASS/ FAIL labels, QR codes and barcodes.

Kewtech



Kewtech KEW80L Labels

Two rolls of 300 labels for use with the Kewtech KEW80L Bluetooth Label Printer.

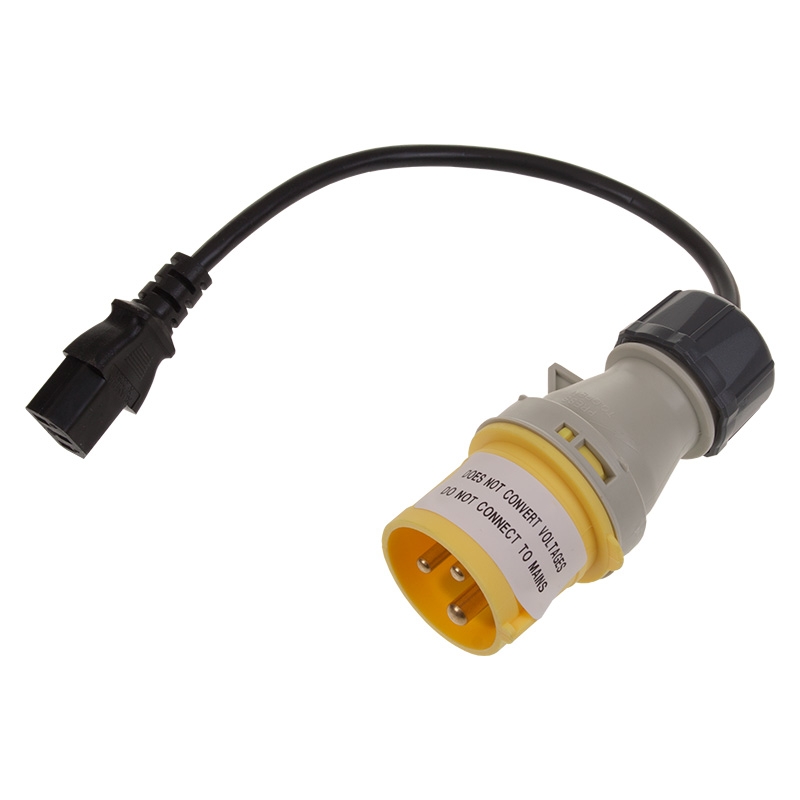

110V PAT Adapter – 240 IEC Connector to 110V, 16A, 3-Pin Socket

110V PAT Adapter – 240 IEC Connector to 110V, 16A, 3-Pin Socket

Can be used with the Kewtech SMARTPAT PAT Tester to create a loop in order to test 110V, 16A cables commonly found on construction sites.

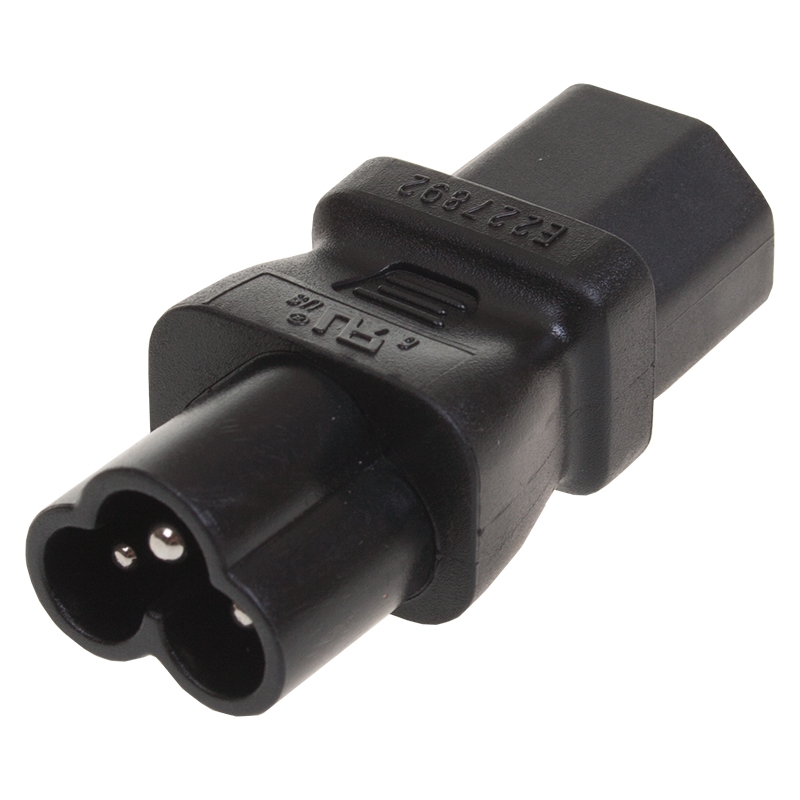

IEC (C13 Female) to Cloverleaf (C6 Male) PAT Adaptor

IEC (C13 Female to Cloverleaf (C6 Male) PAT Adaptor

This adapter can be used to connect the Kewtech SMARTPAT PAT Tester to laptop/ PC power leads as well as other leads with a cloverleaf-style connector.

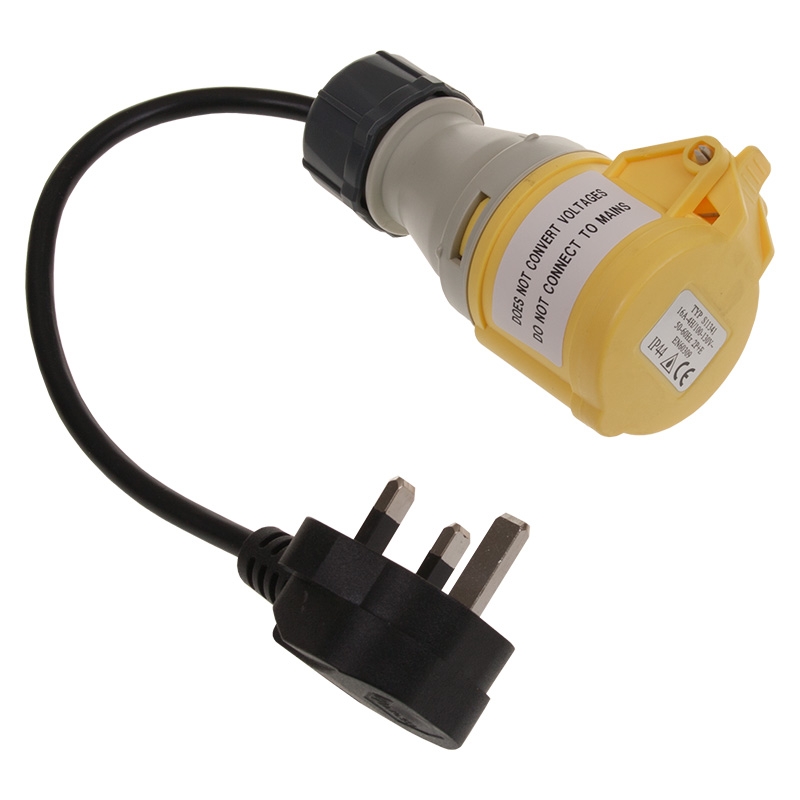

PAT Adapter – 240V, 13A Plug to 110V Female 16A, 3-Pin Socket

PAT Adapter – 240V, 13A Plug to 110V Female 16A, 3-Pin Socket

This adapter can be used to connect 110V equipment such as drills, portable lighting and other construction tools to the Kewtech SMARTPAT PAT Tester.

Kewtech Universal 17th Edition Case



Kewtech Universal 18th Edition Case

A large carry case for storing the Kewtech SMARTPAT PAT Tester and the aforementioned accessories. Dimensions: 220mm x 210mm x 270mm.



FREE Kewtech KEWPAT App Description

The Kewtech KEWPAT App can be used to transform the Kewtech SMARTPAT PAT Tester into a downloadable portable appliance tester. It can be used to record and manage results as well as create personalised test sequences and alter measurement parameters. For a quick overview of the Kewtech KEWPAT App, please see the following video and bullet points.

  • FREE app for iOS and Android Smartphone or tablets
  • Available to download for FREE from the App Store (iOS) and Google Play (Android)
  • Connect to a PC via Wi-Fi
  • Voice prompt helps
  • Auto-number increment
  • Scan barcodes and QR data codes
  • Additional information can be added to collected results
  • Print labels with a company logo
  • Save images of the appliance-under-test to the product description
  • New description or repeat
  • Appliance description
  • Manage customer information
  • Manage databases
  • Save results to a database or send them to print
  • The integrated risk assessment determines an appliance’s recommended testing frequency in accordance with the Code of Practice
  • Results are sent to the Kewtech KEWPAT App from the Kewtech SMARTPAT PAT Tester
  • Account for extenuating circumstances, such as dampness, by adjusting the test frequency
  • Program and initiate tests remotely
  • Specify the pass limits, test durations and number of repeats
  • Create customised test sequences
  • Can be used with the EZYPAT and EZYPAT PLUS in Manual mode to collect data and create reports

Please see the videos below for further information regarding how to download this app.

How to Download the Kewtech KEWPAT App from Google Play

How to Download the Kewtech KEWPAT App from The App Store

Free Complete Guide to EET (PAT) Testing
  • PASS The Complete Guide to EET (PAT) Testing, 5th Edition - PASS-PAT-HB, typically £24.99

Kewtech SMARTPAT PAT Tester Printer Kit Technical Specifications

Please find below the available technical specifications for the items included in this kit.

Kewtech SMARTPAT PAT Tester - Battery Operated Technical Specifications

Protective Conductor Resistance Test
Measuring range 0.00 - 20.00 Ω (NULL value inc)*
Over-range indication > 20.00 Ω
Resolution 0.01Ω
Open-circuit voltage 5 V ±0.4 V DC
Measuring current 200 mA DC (nominal value)
Accuracy ±3%rdg ±5dgt
* Resistances exceeding 3 Ω cannot be cancelled by NULL function
Mains Voltage
Display range 30 - 270 V
Hi/ Lo indication < 30 V: No voltage indication > 270 V: 270 V
Resolution & Accuracy 1 V ±3%rdg ±5dgt
Insulation
Rated Voltage  250V 500V
Measuring range 0.00 - 20.00 MΩ
Over-range indicatio > 20.00 MΩ
Resolution 0.01 MΩ
No-load voltage 250 V DC +20%, -0% 500 V DC +20%, -0%
Short-circuit current 1.5 mA DC or less
Rated current 1 -1.2 mA with a load of 0.25 MΩ 1 to 1.2 mA with a load of 0.5 MΩ
Accuracy ±2%rdg±3dgt
Substitute Leakage
Measuring range 0.10 - 12.00 mA rms
Over-range indication > 12.00 mA
Resolution 0.01mA
Open-circuit voltage/ Freq 30 V ±5 V rms / 50 Hz ±5%
Measuring current 1.2 mA AC ±0.5 mA (when measuring 12.00 mA)
Accuracy ±3%rdg±5dgt
Insuyltation Test Between L-N
Open-circuit voltage 4.5 V ±0.5 V DC
Criteria of judgement 100 kΩ ±20 kΩ or less: LCD shows “<0.10 MΩ” and the measurement is halted
Run Leakage
Item Load Current  Leakage Current
Mains voltage range 100 - 253 V / 50 Hz
Measuring range 0.10 - 13.00 A rms 0.10 - 20.00 mA rms
Display range 0.00 - 13.00 A 0.00 - 20.00 mA
Over-range indication > 13.00 A > 20.00 mA
Resolution 0.01A 0.01mA
Accuracy ±10%rdg ±5dgt ±3%rdg ±5dvgt
Max. rating 3 kVA max. / 15 sec. cont.
RCD Test
Rated voltage 230 V - 15% to +10% / 50Hz
Rated current 10 mA / 30 mA
Test duration ×1: 0.0 ms - 500.0 ms ×5: 0.0 ms - 40.0 ms
Test current accuracy 2% - 8%
Operating time accuracy ±2 ms ( 40 ms) ±8 ms (>40 ms)

Kewtech KEWPRINT1 Bluetooth Label Printer Technical Specifications

Max. Print Speed 35mm/sec. (70mm paper feed speed)
Resolution 203 dpi
No. of Columns 42 col.
Autocutter Tear Bar
Paper Width 58mm thermal paper rolls
Paper Thickness 0.057 minimum- 0.12mm maximum
Paper Roll Standard Option 4 40mm (receipt or label printing)
Print Width 48mm
Sensors Cover open, paper out
Connectivity USB, Bluetooth 3.0 (SPP) , 4.0 (BLE iOS)
Drop Test 1.2m
Power Supply DC3.7V Lithium-Ion Battery 1700mAh. Convenient 5V USB charging
Battery Life 13 hours with 5 minute print intervals
Reliability 50km (37 million lines MCBF)
Dimensions (W x D x H) mm 83 (W) x 122.5 (D) x 44 (H) mm
Weight Weight 220g with battery
Kewtech KEWPRINT1 Bluetooth Label Printer - Datasheet Datasheets Kewtech SMARTPAT PAT Tester - Datasheet Datasheets Kewtech SMARTPAT PAT Tester - Datasheet Datasheets Kewtech KEWPRINT1 Bluetooth Label Printer - Datasheet Datasheets
