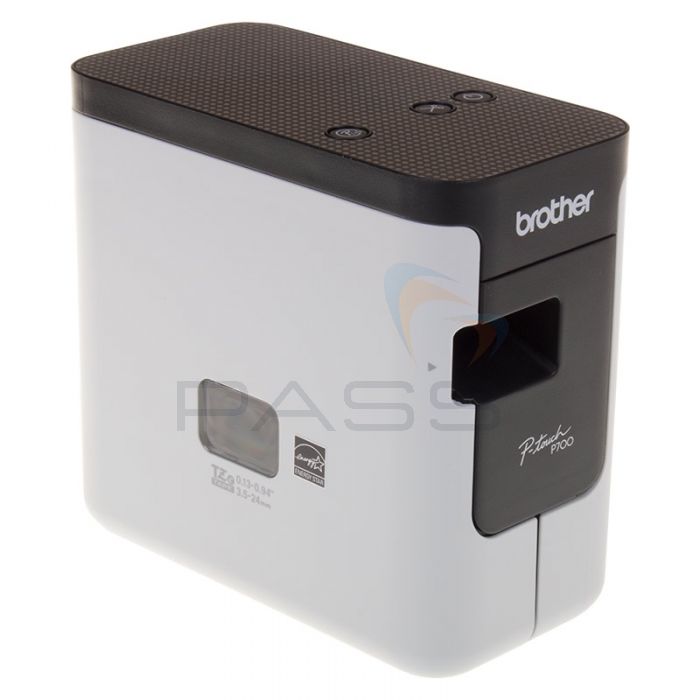

Brother PT-P700 Professional Label Printer

This printer is designed for use with Megger PAT400 series PAT testers.

Create fully customisable labels either on PC or by using your Megger PAT400 series PAT tester!

The printer prints high quality P-touch labels ideal for use on cables/plugs, CDs/DVDS, office appliances, file folders, file cabinets - anywhere you need a label! The labels are extremely durable and are designed to last a long time. They're protected against liquids, abrasion, temperature, chemicals and sunlight, ensuring that applied PAT labels remain fixed in place.

To create labels, simply plug the printer into your PC or PAT tester using the USB cable. On PC, labels can be edited with your own logo, using your own fonts, sizes can be chosen, symbols can be added and much more!

Even barcodes can be printed with this printer.

Brother PT-P700 Professional Label Printer Key Features

Ideal for use with Megger PAT400 series PAT testers
USB connection with PC
No software or printer driver installation needed
Fully customisable labels - add everything from labels to your phone number, all using your own fonts!
Print up to 30mm/sec
Intergrated automatic label cutter
3 power options - AC adapter, AA alkaline batteries or NiMH batteries
Use P-touch software for easy label amendments

What's Included?

Brother PT-P700 Professional Label Printer
24mm Black on White 4m Tape Casette
AC Adapter
USB Cable
Quick Setup Guide

Tech Specs

Brother PT-P700 Technical Specifications

Interface	USB 2.0 (mini-B type connector)
Power	AC Adapter (included) AA (LR/HR6)/rechargeable batteries (not included)
Print Speed	30mm/second (using AC adapter)
Print Resolution	180 dpi
Maximum Print Height	18.1mm
Cutter Type	Automatic full cutter 25mm - 300mm (P-touch Editor Lite) 25mm - 1000mm (P-touch editor 5.1)
Vertical Text Printing	Yes
Mirror Printing	Yes
Copies/Sequential Numbering	1-200 (P-touch Editor Lite) 1-5000 (P-touch Editor 5.1)
Supplies
Tape	Tze tape casettes
Tape Widths	3.5, 6, 9, 12, 18, 24mm
Weight & Dimensions
Size	78 x 143 x 152mm
Weight	710g
Label Creation
Fonts	All installed true type fonts
Font Styles	Normal, bold, italic, underline, outline, shadow, shadow light, horizontal, surround, frame out, inverted, strikethrough
Font Sizes	Up to maximum print height (approx 72 point)
Symbols	All installed symbol truetype fonts
Templates	88 (P-touch Editor 5.1)
Image Support	JPG, BMP, TIFF, PNG, GIF, DIB, WMF, EMF, ICO, screen capture function
Frames	10 (P-touch Editor Lite) 153 (P-touch Editor 5.1)
Barcode	Code 39, ITF 2/5, EAN13, EAN8, UPC-A, UPC-E
Barcodes (P-touch Editor 5.1 only)	CODABAR, GS1-128 (UCC/EAN128), GS1 DATABAR (RSS), GS1 COMPOSITE, ISBN-2, ISBN-5, POSTNET, LASER BARCODE, GS1 DATABAR, PDF417, QR CODE, MICRO QR CODE, DATA MATRIX, MAXICODE, AZTECCODE
Database Connection Support	csv, txt, mdb, xls
System Requirements
Operating System	Microsoft Windows Vista Microsoft Windows 7 Microsoft Windows 8 MAC OS X 10.6.8/1.7.x/10.8.x
Interface	Windows USB Port (USB Spec. 1.1, 2.0 or 3.0 protocol) Mac: USB Port (USB spec, 1.1 ot 2.0 protocol)
Memory Requirements	Windows Vista 512MB or more Windows 7: 1GB (32-bit) or 2GB (64-bit) or more Windows 8: 1GB (32-bit) or 2GB (64-bit) or more Mac OS X: 2GB or more
Monitor	Windows: SVGA/High colour or more Mac: more than 256 colours
Others	CD-ROM/DVD-ROM drive
Microsoft Office Support for P-touch add in	Microsoft Word 2003/2007/2010 Microsoft Excel 2003/2007/2010 Microsoft Outlook 2003/2007/2010
