Seaward Apollo 500+ PAT Tester Pro Bundle Kit & PATGuard 3 Software

SKU
380A9897-KIT
Rating:
0%
(0)
Reward Points (?)

Logged in, worth £34.08, read more.

:
3408
£2,044.80 £1,704.00
Advice & Support
Price Match Request
5 Bundle Deals Available...

The Seaward Apollo 500+ PAT Tester Pro Bundle Kit & PATGuard 3 Software contains:

  • 1x Seaward Apollo 500+ PAT Tester
  • 1x Seaward Test ‘n’ Tag Pro Bundle
  • 1x 1-Year Subscription to Seaward’s PATGuard 3 Software

Please see below, for further details.

Seaward Apollo 500+ PAT Tester Description

The Seaward Apollo 500+ PAT Tester’s extensive memory (capacity for 10 000 results) and comprehensive selection of electrical and safety tests makes it ideal for testing high-volumes of portable appliances in accordance with the IET 5th Edition Code of Practice.

In addition to performing point-to-point fixed appliance earth continuity and insulation resistance tests, the Seaward Apollo 500+ PAT Tester features the following testing capabilities:

  • Low current earth continuity with Zap circuit, guaranteeing accurate measurements
  • Insulation resistance
  • IEC lead
  • Protective conductor current
  • Touch current
  • Load power/ current
  • Alternative leakage current
  • RCD
  • Power socket
  • Class 2 FE (5th edition update)

These tests can be arranged into up to 100 user-customised electrical and visual inspection sequences.

Further to this, the Apollo 500+ includes an integrated risk assessment tool with a retest calculator, facilitating the user’s ability to determine a suggested retest period for each appliance-under-investigation, according to the IET 5th Edition Code of Practice.

Accessing and imputing information is made simple as a result of the Apollo 500+’s QWERTY keyboard and colour, high-definition display.

Hardware Features

The Seaward Apollo 500+ PAT Tester includes a rechargeable, interchangeable battery, which is designed to reduce the Apollo 500+’s downtime; particularly as this instrument can also be powered using a mains supply, allowing the user to tailor the instrument to the application.

Furthermore, the Seaward Apollo 500+ PAT Tester is also supplied with resilient test probes, a wiring harness and test leads featuring strong PVC insulation. These accessories make the Apollo 500+ better suited to demanding applications, thereby increasing this product’s versatility.

Firmware Features

  • User permissions for Bluetooth
  • A review step – allowing the user to verify test details prior to the addition of any final comments
  • The asset’s ID is displayed on each test screen
  • Accommodates the saving of downloaded files using unique identifiers
  • Mains voltage and outlet wiring polarity can be measured using the newly added socket-outlet test
  • Information can be downloaded to an Android device via USB on-the-go technology
  • The interface may be tailored to the user’s requirements via the removal of unwanted options from predictive drop-down menus
  • ‘Worst’ and ‘Last’ result options have been included in the leakage test setup
  • An option to print test results automatically has been included in the ‘After Test’ function
  • An advanced search function is included in the ‘View Data Menu’, allowing the user to filter results according to the PASS/ FAIL status of each test
  • The ‘View Data Menu’ has been redesigned to facilitate faster scrolling
  • Unwanted results can be deleted
  • 2020 5th Edition update includes a brand-new set of test sequences including Class 2 FE and other new tests as per the 5th Edition

The Seaward Apollo 500+ PAT Tester puts adaptability, practicality and versatility at the forefront of its design, making it suitable for testing large quantities of various portable appliances.

Seaward Apollo 500+ PAT Tester Key Features

  • Ideal for testing high-volumes of portable appliances
  • Extensive memory – capacity for 10 000 results
  • Test appliances in accordance with the IET 5th Edition Code of Practice
  • Point-to-point fixed appliance testing for earth continuity and insulation resistance
  • Low current earth continuity test with Zap circuit, guaranteeing accurate measurements
  • Insulation resistance test
  • IEC lead test
  • Protective conductor current test
  • Touch current test
  • Load power/ current test
  • Alternative leakage current test
  • RCD test
  • Power socket test
  • Create up to 100 user-customised electrical and visual inspection test sequences
  • Integrated risk assessment tool with retest calculator
  • QWERTY keyboard
  • Colour, high-definition display
  • Rechargeable, interchangeable battery
  • Can be powered using a mains supply
  • Supplied with resilient test probes
  • Supplied with test leads with PVC insulation
  • Supplied with a wiring harness
  • Suitable for demanding applications
  • User permissions for Bluetooth
  • A review step – allowing the user to verify test details prior to the addition of any final comments
  • The asset’s ID is displayed on each test screen
  • Accommodates the saving of downloaded files using unique identifiers
  • Mains voltage and outlet wiring polarity can be measured using the newly added socket outlet test
  • Information can be downloaded to an Android device via USB on-the-go technology
  • The interface may be tailored to the user’s requirements via the removal of unwanted options from predictive drop-down menus
  • ‘Worst’ and ‘Last’ result options have been included in the leakage test setup
  • An option to print test results automatically has been included in the ‘After Test’ function
  • An advanced search function is included in the ‘View Data Menu’, allowing the user to filter results according to the PASS/ FAIL status of each test
  • The ‘View Data Menu’ has been redesigned to facilitate faster scrolling
  • Unwanted results can be deleted
  • Adaptable, practical and versatile
  • Suitable for testing large quantities of various portable appliances

Seaward Test ‘n’ Tag Pro Bundle Description

The Seaward Test ‘n’ Tag Pro Bundle is comprised of a number of instruments designed to facilitate the Apollo 500+’s ability to read and print labels with 1D barcodes.

Please see below for a list of the products included in this kit:

  • 1x Seaward Test ‘n’ Tag Pro Printer – allows the user to print labels including a 1D barcode and information detailing the asset number, test date, next test date, username and test status. Like the Apollo 500+, this printer is also capable of Bluetooth connectivity.
  • 1x Seaward 1D Bluetooth Barcode Scanner – when used with this instrument the Apollo 500+ is able to read code 39, code 93 and code 128 1D barcodes. This scanner is powered using a rechargeable battery.
  • 2x Pro Labels 25mm
  • 2x Pro Labels 75mm
  • 1x Apollo Kit Carry Case
  • 1x 110V Test Adapter

Seaward PATGuard 3 Software – 1 Year Subscription Description

 The Seaward PATGuard 3 Software – 1 Year Subscription is of particular use to the following professionals:

  • Dutyholders
  • In-house PAT testers
  • Health and safety managers
  • Health and safety contractors
  • Professional PAT testers
  • Electrical contractors
  • Facilities managers
  • Risk assessment professionals
  • Operations managers

This is because the Seaward PATGuard 3 Software includes an extensive selection of features, functions and capabilities that make it ideal for managing results gathered by the Apollo 500+, as well as for creating comprehensive professional reports in accordance with the IET 5th Edition Code of Practice.

The Seaward PATGuard 3 Software includes the following features, functions and capabilities:

  • Fast data entry
  • An intuitive user-interface
  • It is able to accommodate databases imported from older versions of the PATGuard 3 Software
  • It is easy-to-operate and is equipped with a set-up wizard
  • Includes a universal risk assessment tool for calculating a risk score for workplace appliances
  • Network enabled
  • Customisable asset view
  • Includes an electrical risk assessment tool for calculating retest periods
  • Compatible with databases across the PATGuard range
  • Upload configuration and retest information to the Apollo 500+
  • Features an automatic re-testing schedule
  • CSV output (including test results)
  • Enabled for compatibility with existing software and systems with CSV import (template file included)
  • A full test history of each asset is provided
  • Review and correct test results prior to processing
  • Capacity to create read-only files detailing test results to be sent to clients
  • Includes an eclectic selection of test report certificates
  • Certificate of Testing reports
  • Electrical Test Summary reports
  • On-hire indication and reports

The Seaward PATGuard 3 Software – 1 Year Subscription adds to the practicality, versatility and efficiency of the Seaward Apollo 500+ PAT Tester.

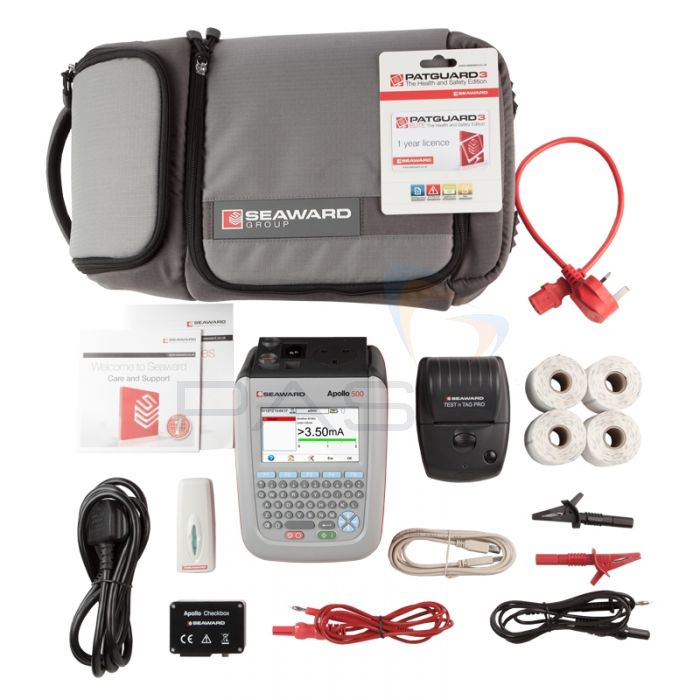

What’s Included in the Seaward Apollo 500+ PAT Tester Pro Bundle Kit & PATGuard 3 Software?

  • 1x Seaward Apollo 500+ PAT Tester
  • 1x Seaward Test ‘n’ Tag Pro Bundle
  • 1x 1-Year Subscription to Seaward’s PATGuard 3 Software
Part Code380A966

Seaward Apollo 500+ PAT Tester Technical Specifications

Earth Continuity
Test Current +/- 200mA DC
Display Range 0.01 – 19.99Ω
Pass Value User Defined
Insulation Resistance
Test Voltage 500V / 250V DC @ 1mA nominal
Display Range 0.01MΩ - 19.99MΩ
Pass Value User Defined
IEC Lead Test
Test Voltage 5V ac nominal
Test Live / Neutral Checks for o/c, s/c and crossed
Protective Conductor Current/Load
Test Voltage Supply voltage, maximum load current 16A
Display Ranges 0.01mA to 19.99mA
Pass Value User Defined
Touch Current
Test Voltage Supply Voltage, maximum load current 16A
Display Range 0.00 – 3.50mA
Pass Value User Defined
Load Power/Current
Test Voltage Supply Voltage, maximum load current 16A
Test Duration Programmable up to a maximum of 255s
depending on load. i.e. max duration is reduced
for high loads
Display Range 0.00kVA – 4.00kVA
0.00A – 16.00A
Alternative Leakage Current
Test Voltages >25Vac <50Vac
Display Range 0.00mA to 19.99mA
Pass Value User Defined
RCD Test
Test Voltage 230V +10%, -15%
Test Current 30mA / 150mA rms sinusoidal
Display Range 0ms - 2000ms (30mA), 0-40ms (150mA)
Test Method Internal isolation to avoid tripping distribution
board RCD
Power Socket Test
Voltage Range 207V – 253V AC
Indicates configuration of voltage potential:-
Line potential phase to earth
Line potential phase to neutral
Line potential neutral to earth
General
Memory Size 10000 Records
Weight 1.5kg
Dimensions 230mm x 150mm x 100mm
Power Source Mains or Rechargeable Battery Pack

Seaward Apollo+ PAT Tester Comparison Chart

General Features 600+ 500+ 400+
Battery & mains powered
Colour screen & QWERTY keypad
Large internal memory up to 50,000 records and 2,000 photos up to 10,000 records up to 2,000 records
Bluetooth scanner & printer compatible
Password controlled user accounts
Set up multiple user accounts with varying levels of privileges
Clone facility to set up multiple testers
Checkbox supplied as standard
Test Inspection Features 600+ 500+ 400+
Auto-increment asset ID
PAT Setup option to allow for custom menus
Enter asset description after test using the keypad or barcode scanner
Comprehensive electrical safety test features
Point to point measurement (Rpe & IR)  Optional accessory required
User configurable electrical test/visual inspection sequences 100 100 25
User set sites & locations 100 100 50
Risk-based retest period calculator
User definable comments lines against test records 4 4
Configurable checklists for any workplace test or inspection (user tests)
Onboard camera
Universal risk assessment
Health & safety certificates
Data Transfer 600+ 500+ 400+
1D and 2D Scanner connectivity Reads 1D Data Only
Read QR code (2D) labels with 2D scanner
RFID reader connectivity
Print Pass & Fail labels with 1D barcode
Print Pass & Fail labels with QR code (2D)
Add your company logo to labels (on large 1D labels only)
Select from various label formats to print 6 6 6
Download to PC via USB cable
Data Transfer via USB flash drive
Filter results to be downloaded
Upload previous results to the tester for a retest

Seaward PAT Guard 3 Software Technical Specifications

System Requirements IBM compatible PC
Processor speed 500Mhz or higher
Microsoft Windows XP/Vista/7/8/10
512Mb RAM
50Mb available hard disk space
Colour monitor with 32-bit colour or greater video card
Internet connection or CD ROM drive
Internet Explorer 8 or later
