Seaward Apollo 500+ Elite Kit with PATGuard 3 Software

SKU
380A9900-KIT
Rating:
0%
(0)
Reward Points (?)

Logged in, worth £41.16, read more.

:
4116
£2,469.60 £2,058.00
Advice & Support
Price Match Request
5 Bundle Deals Available...

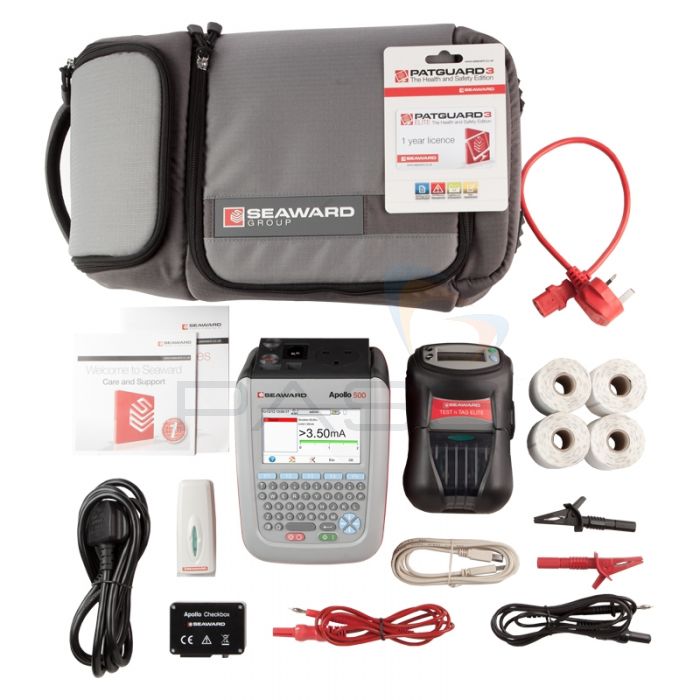

The Seaward Apollo 500+ Elite Kit with PATGuard 3 Software consists of:

  • 1x Seaward Apollo 500+ PAT Tester
  • 1x Seaward Test ‘n’ Tag Elite Bundle Kit
  • 1 Year’s Subscription to Seaward’s PATGuard 3 Software

Please see the following descriptions for further information regarding these products.

Seaward Apollo 500+ PAT Tester Description

The Seaward Apollo 500+ PAT Tester has been optimised for checking large volumes of portable appliances in accordance with IET’s 5th Edition Code of Practice. As such it includes an eclectic array of electrical tests; is capable of performing point-to-point appliance tests for earth continuity and insulation resistance, and includes an integrated risk assessment tool with a retest calculator allowing the user to determine suggested retest periods.

In addition to this, the Seaward Apollo 500+ PAT Tester includes the following tests:

  • Low current earth continuity test with Zap circuit, guaranteeing accurate measurements
  • Insulation resistance test
  • IEC lead test
  • Protective conductor current test
  • Touch current test
  • Load power/current test
  • Alternative leakage current test
  • RCD test
  • Power Socket Test
  • Class 2 FE (5th edition update)

These tests can be arranged into up to 100 user-customised electrical and visual inspection sequences and the results of these tests may be saved to the Seaward Apollo 500+’s extensive onboard memory (capacity for 10 000 test results).

Viewing data and entering information is made simple as a result of the Seaward Apollo 500+ PAT Tester’s colour, high-definition display and QWERTY keyboard; features it shares with its predecessor the Apollo 500. However; this instrument also includes a number of updates to its hardware and firmware which are intended to improve the practicality, adaptability and versatility of this instrument.

Hardware Features

Downtime is reduced by the inclusion of a removable, rechargeable, interchangeable battery. Furthermore, it is also possible to power the Seaward Apollo 500+ PAT Tester using a mains supply, allowing the user to adapt the tester to the situation.

In addition to this, the Seaward Apollo 500+ PAT Tester is supplied with a wiring harness, test leads with strong PVC insulation, and resilient probes, ensuring that it can be used to perform more demanding applications.

Firmware Features

  • User permissions for Bluetooth
  • A review step allowing the user to verify test details prior to adding any final comments
  • Each test screen displays the asset’s ID
  • Downloaded files can be saved using unique identifiers, ensuring that they are easy to locate
  • A socket outlet test which facilitates the user’s ability to measure main voltage and outlet wiring polarity
  • Information can be downloaded directly onto an Android device via USB on-the-go technology
  • Drop-down menus can be altered via the deletion of unwanted options
  • The ‘After Test’ function has been expanded to include an option to print test results automatically
  • Leakage test setup includes options for ‘Worst’ and ‘Last’ results
  • Advanced search function
  • The ‘View Data Menu’ has been altered to improve scrolling and allows the user to filter results according to specifications such as the PASS/ FAIL status of each test.
  • A delete option for erroneous/unnecessary results

The Seaward Apollo 500+ PAT Tester can be used to comprehensively, simply and efficiently test a large volume of eclectic portable appliances.

Seaward Apollo 500+ PAT Tester Key Features

  • Optimised for checking large volumes of portable appliances in accordance with the IET’s 5th Edition Code of Practice
  • Capable of performing point-to-point appliance tests for earth continuity and insulation resistance
  • Integrated risk assessment tool with retest calculator
  • Eclectic array of tests
  • Low current earth continuity test with Zap circuit, guaranteeing accurate measurements
  • Insulation resistance test
  • IEC lead test
  • Protective conductor current test
  • Touch current test
  • Load power/current test
  • Alternative leakage current test
  • RCD test
  • Power socket test
  • Create up to 100 user-customised electrical and visual inspection sequences
  • Extensive onboard memory – capacity for 10 000 test results
  • Colour, high-definition display
  • QWERTY keyboard
  • Includes updates to its hardware and firmware
  • Updates improve its practicality, versatility and adaptability
  • Rechargeable, removable, interchangeable battery
  • Can be powered using a mains supply
  • Supplied with a wiring harness
  • Supplied with test leads featuring strong PVC insulation
  • Supplied with resilient probes
  • Ideal for more demanding applications
  • User permissions for Bluetooth
  • A review step allowing the user to verify test details prior to adding any final comments
  • Each test screen displays the asset’s ID
  • Downloaded files can be saved using unique identifiers, ensuring that they are easy to locate
  • A socket outlet test which facilitates the user’s ability to measure main voltage and outlet wiring polarity
  • Information can be downloaded directly onto an Android device via USB on-the-go technology
  • Drop-down menus can be altered via the deletion of unwanted options
  • The ‘After Test’ function has been expanded to include an option to print test results automatically
  • Leakage test setup includes options for ‘Worst’ and ‘Last’ results
  • Advanced search function
  • The ‘View Data Menu’ has been altered to improve scrolling and allows the user to filter results according to specifications such as the PASS/ FAIL status of each test.
  • A delete option for erroneous/unnecessary results
  • Can be used to comprehensively, simply and efficiently test large volumes of eclectic portable appliances

 Seaward Test ‘n’ Tag Elite Bundle Kit Description

The Seaward Test ‘n’ Tag Elite Bundle Kit improves the efficiency and ease with which the Seaward Apollo 500+ PAT Tester can conduct portable appliance checks. The tools included in this kit (see below) facilitate the tester’s ability to read and print 2D QR data codes.

  • 1x Seaward Test ‘n’ Tag Elite 2 Printer: prints 2D QR data codes
  • 1x Seaward 2D Bluetooth Barcode Scanner: facilitates quick retests as this instrument can be used to scan 2D QR data codes. The test information contained within these codes is then used to populate the relevant fields in the Apollo 500+’s test setup.
  • 2x Elite Durable Labels 25mm
  • 2x Elite Durable Labels 75mm
  • Apollo Kit Carry Case
  • 110V Test Adapter

The Seaward Test ‘n’ Tag Elite Bundle Kit works to further extend the Seaward Apollo 500+ PAT Tester’s versatility and practicality.

Seaward PATGuard 3 Software – 1 Year Subscription Description

The Seaward PATGuard 3 Software – 1 Year Subscription has been designed to aid the user in managing test results gathered using the Apollo 500+ and creating professional reports. Its extensive capabilities, features and functions make it ideal for ensuring tests have been conducted and reports are created in accordance with the IET's 5th Edition Code of Practice.

The Seaward PATGuard 3 Software includes the following features, functions and capabilities:

  • An intuitive user interface
  • A set-up wizard for easy operation
  • It is network enabled
  • The asset view may be customised to suit the user’s requirements
  • It is compatible with databases across the PAT Guard range
  • CSV output (including test results)
  • Compatibility with existing software and systems with CSV import (template file included) is enabled
  • Includes an eclectic variety of test report certificates
  • On Hire indication and report
  • Electrical Test Summary reports
  • Certificate of Testing reports
  • Read-only files complied of test results can be created for clients
  • Downloaded test results can be reviewed and corrected prior to processing
  • Provides the user with a full test history of the asset under investigation
  • Includes an automatic re-testing schedule
  • Configuration and retest information can be uploaded to the Apollo 500+
  • Retest periods may be determined using the electrical risk assessment tool
  • Universal risk assessment tool  can be used to calculate risk scores for workplace appliances
  • Databases can be imported from older PAT Guard Software versions
  • Can accommodate fast data entry

These extensive capabilities make the Seaward PATGuard 3 Software ideal for organising test results and creating comprehensive reports. It is of particular use to a variety of professionals including:

  • Dutyholders
  • In-house PAT testers
  • Health and safety managers
  • Health and safety contractors
  • Professional PAT testers
  • Electrical contractors
  • Facilities managers
  • Risk assessment professionals
  • Operations managers

The Seaward PATGuard 3 Software – 1 Year Subscription, like the Seaward Test ‘n’ Tag Elite Bundle Kit, adds to the efficiency, versatility and practicality of the Seaward Apollo 500+ PAT Tester.

What’s Included?

  • 1x Seaward Apollo 500+ PAT Tester
  • 1x Seaward Test ‘n’ Tag Elite Bundle Kit
  • 1 Year’s Subscription to Seaward’s PATGuard 3 Software
Part Code380A962

Seaward Apollo 500+ PAT Tester Technical Specifications

Earth Continuity
Test Current +/- 200mA DC
Display Range 0.01 – 19.99Ω
Pass Value User Defined
Insulation Resistance
Test Voltage 500V / 250V DC @ 1mA nominal
Display Range 0.01MΩ - 19.99MΩ
Pass Value User Defined
IEC Lead Test
Test Voltage 5V ac nominal
Test Live / Neutral Checks for o/c, s/c and crossed
Protective Conductor Current/Load
Test Voltage Supply voltage, maximum load current 16A
Display Ranges 0.01mA to 19.99mA
Pass Value User Defined
Touch Current
Test Voltage Supply Voltage, maximum load current 16A
Display Range 0.00 – 3.50mA
Pass Value User Defined
Load Power/Current
Test Voltage Supply Voltage, maximum load current 16A
Test Duration Programmable up to a maximum of 255s
depending on load. i.e. max duration is reduced
for high loads
Display Range 0.00kVA – 4.00kVA
0.00A – 16.00A
Alternative Leakage Current
Test Voltages >25Vac <50Vac
Display Range 0.00mA to 19.99mA
Pass Value User Defined
RCD Test
Test Voltage 230V +10%, -15%
Test Current 30mA / 150mA rms sinusoidal
Display Range 0ms - 2000ms (30mA), 0-40ms (150mA)
Test Method Internal isolation to avoid tripping distribution
board RCD
Power Socket Test
Voltage Range 207V – 253V AC
Indicates configuration of voltage potential:-
Line potential phase to earth
Line potential phase to neutral
Line potential neutral to earth
General
Memory Size 10000 Records
Weight 1.5kg
Dimensions 230mm x 150mm x 100mm
Power Source Mains or Rechargeable Battery Pack

Seaward Apollo+ PAT Tester Comparison Chart

General Features 600+ 500+ 400+
Battery & mains powered
Colour screen & QWERTY keypad
Large internal memory up to 50,000 records and 2,000 photos up to 10,000 records up to 2,000 records
Bluetooth scanner & printer compatible
Password controlled user accounts
Set up multiple user accounts with varying levels of privileges
Clone facility to set up multiple testers
Checkbox supplied as standard
Test Inspection Features 600+ 500+ 400+
Auto-increment asset ID
PAT Setup option to allow for custom menus
Enter asset description after test using the keypad or barcode scanner
Comprehensive electrical safety test features
Point to point measurement (Rpe & IR)  Optional accessory required
User configurable electrical test/visual inspection sequences 100 100 25
User set sites & locations 100 100 50
Risk-based retest period calculator
User definable comments lines against test records 4 4
Configurable checklists for any workplace test or inspection (user tests)
Onboard camera
Universal risk assessment
Health & safety certificates
Data Transfer 600+ 500+ 400+
1D and 2D Scanner connectivity Reads 1D Data Only
Read QR code (2D) labels with 2D scanner
RFID reader connectivity
Print Pass & Fail labels with 1D barcode
Print Pass & Fail labels with QR code (2D)
Add your company logo to labels (on large 1D labels only)
Select from various label formats to print 6 6 6
Download to PC via USB cable
Data Transfer via USB flash drive
Filter results to be downloaded
Upload previous results to the tester for a retest

Seaward PAT Guard 3 Software Technical Specifications

System Requirements IBM compatible PC
Processor speed 500Mhz or higher
Microsoft Windows XP/Vista/7/8/10
512Mb RAM
50Mb available hard disk space
Colour monitor with 32-bit colour or greater video card
Internet connection or CD ROM drive
Internet Explorer 8 or later
