Metrel MI 3309 DeltaGT BT PAT Tester

SKU
MI3309DELTA
Rating:
0%
(0)
Reward Points
:
798
£957.60 £798.00
Only 1 in Stock
Free UK Delivery*
Choose a Special Offer
  •  PASS Training USB with Exam, Pass & Fail Labels (PTPROMO7)
    PASS Training Online Course with Exam, Pass & Fail Labels
    FREE
    £93.27
  • PASS Training Online Course with Exam, Pass & Fail Labels SKU: (PTPROMO7)
    FREE
    £93.27
     PASS Training USB with Exam, Pass & Fail Labels (PTPROMO7)
  • PASS The Complete Guide to EET (PAT) Testing Cover
    PASS The Complete Guide to EET (PAT) Testing, 5th Edition
    FREE
    £24.99
  • PASS The Complete Guide to EET (PAT) Testing, 5th Edition SKU: (PASS-PAT-HB)
    FREE
    £24.99
    PASS The Complete Guide to EET (PAT) Testing Cover
    • Updated to include 5th Edition revisions
    • Easy-to-understand explanations, illustrated examples, & quick summaries
    • An invaluable resource for both new and experienced technicians
Advice & Support Call 01642 931329 or contact us
Price Match We won't be beaten, let us know
FREE Accessory Bundle

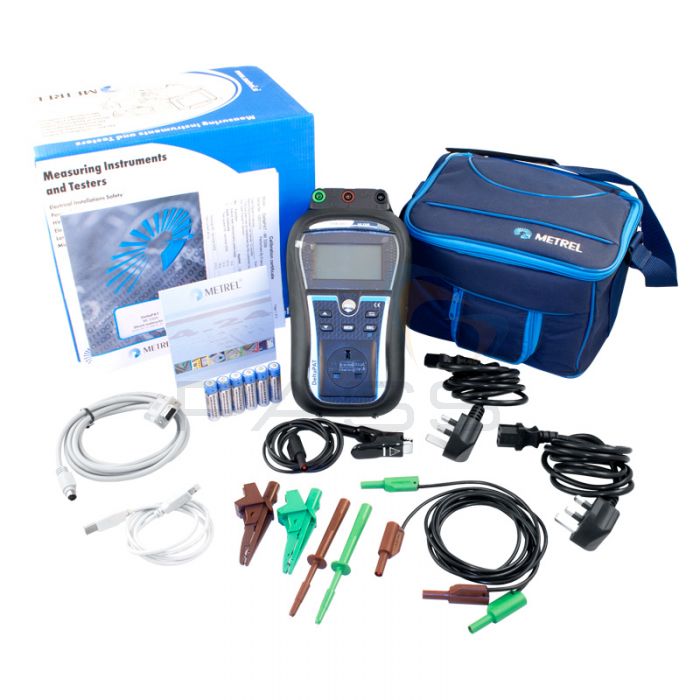

Metrel MI 3309 DeltaGT BT Standard Kit

The lightweight Metrel MI 3309 DeltaGT BT PAT Tester is capable of conducting a wide range of electrical tests which make it a perfect instrument for high volume safety testing of portable appliances.

Reading of results, indications, measurement parameters and messages is made easy thanks to the large graphic LCD screen, which is backlit for use in dimly lit conditions.

The two lights on either side of this tester provide additional PASS/FAIL indication and the inbuilt battery recharger means there is no need to spend extra money on an external charger.

The powerful inbuilt memory can store up to 1500 sets of test data and it is fully compatible with the new Metrel PATLink PRO PC software package which lets you download, view, analyse, print and export test results. It is also compatible with the Metrel app: aPAT link.

Metrel MI 3309 Delta Measuring Functions

  • Functional  and visual inspection;
  • Earth bond resistance;
  • Insulation  resistance;
  • Insulation  resistance of isolated accessible conductive parts;
  • Substitute leakage current;
  • Substitute leakage current of isolated accessible conductive parts;
  • Differential leakage current test;
  • Touch leakage test;
  • RCD and portable RCD testing;
  • Power test;
  • IEC cord polarity test;
  • TRMS voltage meter.

Metrel MI 3309 Delta PAT Tester Key Features:

  • Graphic LCD with a resolution of 128 x 64 dots, with backlight.
  • The graphic display offers easy reading of results, indications, measurement parameters and messages.
  • Large green and red lights for additional PASS / FAIL indication placed at the sides of the LCD.
  • Large data flash memory for storing test results & parameters (about 1500 tests with parameters can be stored on average).
  • Two communication ports (USB and RS232C) for communication with PC, and barcode reader.
  • Built-in real time clock.
  • Bar-coding system for quick test code selection and identification of DUT
  • Programmable limits for PASS / FAIL evaluation.
  • Fully compatible with new Metrel PATLink PRO PC software package (download, view, print and export of test results)
  • Optional PC SW PATLink PRO Plus (advanced test result analysis and professional test report creation)
  • Portable and lightweight design.
  • Rechargeable battery powered instrument with built-in charging circuit.
  • The Metrel MI 3309 DeltaGT can operate from mains power or batteries.


Metrel MI 3309 Delta PAT Tester Standard Set:

  • Metrel MI 3309 Delta instrument
  • IEC cable, 2m
  • Test lead, black, 1.5 m
  • Crocodile clip, black
  • Test probe, black
  • PC software PATLink PRO
  • RS232 cable
  • USB cable
  • Instruction manual  on CD
  • Short instruction manual
  • Calibration certificate

Tester Standards

  • Functionality: EN 61557;  VDE 0404-1; VDE 0404-2; VDE 0701-0702; NEN 3140
  • Electromagnetic compatibility: EN 61326
  • Safety:  EN 61010-1;  EN 61010-031

FREE Manufacturer's Calibration / Conformity Certificate included - We recommend adding a new Calibration Certificate to ensure your Tester is calibrated and accurate from the date of purchase, not date of manufacture.

Please Note - If you require the certificate in any particular company or individual name please email us the details that you want to appear on the certificate rather than adding a note to your order as it may be missed by our automated system, feel free to contact one of our advisors if you want to discuss any aspect of this service 01642 626140.

Metrel MI 3309 DeltaGT BT Technical Specifications

Earth continuity (200 mA in to  2.00 Ω)
Range Resolution Accuracy
0.00 Ω ÷ 19.99 Ω 0.01 Ω ± (5 % of reading + 3 digits)
20.0 Ω ÷ 199.9 Ω 0.1 Ω Indication only
200 Ω ÷ 1999 Ω 1 Ω Indication only

Insulation resistance, Insulation – S resistance (250 VDC, 500 VDC)
Range Resolution Accuracy
0.00 MΩ ÷ 19.99 MΩ 0.01 Ω ± (5 % of reading + 3 digits)
20.0 MΩ ÷ 49.9 MΩ 0.1 Ω ± (5 % of reading + 3 digits)
50.0 MΩ ÷ 199.9 MΩ 0.1 Ω Indication only

Differential leakage current (230 VAC)
Range Resolution Accuracy
0.00 MA ÷ 19.99 MA 0.01 Ω ± (5 % of reading + 3 digits)

Touch leakage current (230 VAC)
Range Resolution Accuracy
0.00 mA ÷ 7.0 mA 0.01 Ω ± (10 % of reading + 5 digits)

Substitute leakage current (30 VAC)
Range Resolution Accuracy
0.00 mA ÷ 9.99 mA 0.01 Ω ± (5 % of reading + 3 digits)
10.0 mA ÷ 20.0 mA 0.1 mA ± (5 % of reading + 3 digits)

(P)RCD testing (10 mA, 15 mA, 30 mA)
Range Resolution Accuracy
0 ms ÷ 300 ms (½xI∆N) 0.1 ms ±3 ms
0 ms ÷ 300 ms (I∆N) 0.1 ms ±3 ms
0 ms ÷ 40 ms (5xI∆N) 0.1 ms ±1 ms

Power measurement (230 VAC)
Range Resolution Accuracy
0.00 kVA ÷  4.00 kVA 0.01 kVA ±(5 % of reading + 3 digits)

Voltage TRMS measurement
Range Resolution Accuracy
80 ÷ 300 V 1 V ±(2 % of reading + 2 digits)

Accessories related to this product:
Metrel MI 3309 DeltaGT BT PAT Tester - Datasheet Datasheets Metrel MI 3309 DeltaGT BT PAT Tester - User Manual Manuals & Guides

Reviews

Additional Information
SKU MI3309DELTA
Manufacturer Part Code MI3309BT
Model No DeltaPAT MI3309
Country of Origin Slovenia
