Metrel MI3309 DeltaPAT PAT Tester - PAT Premium Kit (Bundle 3)

SKU: DELTABUNDLE3
Reward Points: 3078 [?]

  • Premium PAT kit ideal for any professional

  • Fully downloadable memory storage

  • Includes printer, barcode scanner, labels and much more

-+
£1,539.00
£1,846.80 (Inc. VAT)

Login / Sign Up
Why do I need a calibration?

Found it Cheaper? Found it Cheaper? Price Match
Need Help? Need Help? Contact Us

Metrel MI3309 DeltaPAT PAT Tester - PAT Premium Kit (Bundle 3)

Click to enlarge
Description

Metrel MI3309 DeltaPAT PAT Tester - PAT Premium Kit (Bundle 3) Details

Our biggest and best kit for the Metrel DeltaPAT tester!

Inside you'll find everything a PAT tester needs, including the DeltaPAT itself, PAT labels, a barcode scanner so you can speed up your asset management, a training DVD, a comprehensive PAT testing handbook and a printer for making your own PAT labels.

Metrel's DeltaPAT is handheld, easy-to-use and has the added benefit of fully downloadable internal memory. This tester is ideal for mid-sized businesses doing in-house PAT testing, as well as large retailers, landlords and anyone else with a larger amount of appliances to test.

What's In the Kit?

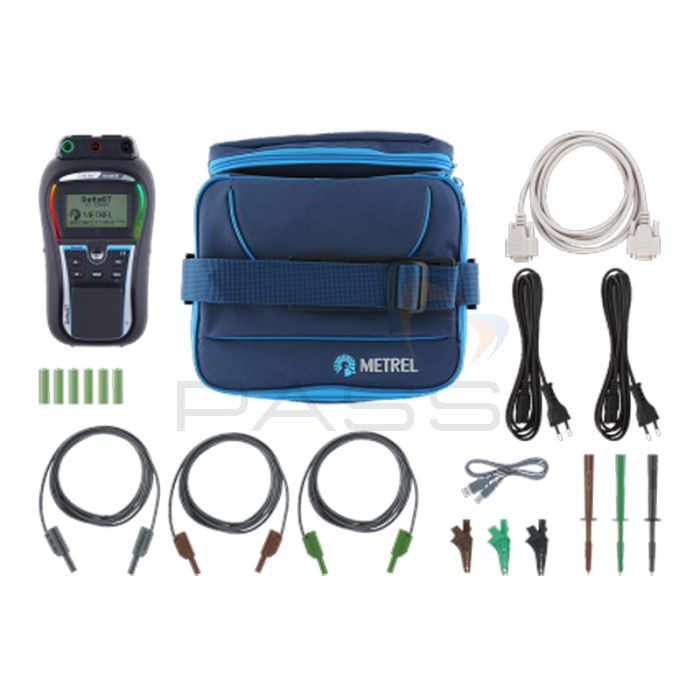

  • Metrel DeltaPAT PAT Tester
  • Small, Soft Carrying Bag
  • 2 x IEC Cables (2m Length)
  • 2 x Crocodile Clips (Green and Brown)
  • 2 x Test Probes (Green and Brown)
  • PATLink Pro PC Software
  • RS232 Cable
  • USB Cable
  • 3 x Test Leads (Green, Black and Brown), 1.5m Length
  • Instruction Manual
  • 6 x NiMH Rechargeable Batteries
  • Calibration Certificate

On top of that, we also add all of the following PAT essentials:

  • Deluxe Carrying Case
  • Socket Tester
  • PAT Testing Training DVD + Online Exam
  • Handbook of Portable Appliance Testing
  • Microwave Leakage Detector
  • 2 x 110V Adapters
  • 3 x IEC Adapters
  • 5 Piece Insulated Screwdriver Kit
  • 1000 x Passed PAT Testing Labels
  • 1000 x Circular Passed PAT Testing Labels
  • 500 x Cable Wrap Labels
  • 500 x Failed PAT Testing Labels
  • Visual Inspection Labels
  • Barcode Scanner
  • 2000 x Barcode Labels
  • Metrel A1276 Printer

Metrel DeltaPAT Tester Key Features

  • Battery and mains powered handheld PAT tester recommended for mid-range users with a lot of appliances to test
  • Built-in 1500 record downloadable memory with USB download to PC (software also included)
  • Connect to a barcode scanner (sold separately) for easy management of appliance assets
  • Use with the optional Bluetooth dongle pack to connect wirelessly to an Android smartphone or tablet
  • Graphical LCD screen with resolution of 128 x 64 pixels with built-in backlight
  • Unique green and red LED light indicators on either side of the screen show if the appliance has passed or failed the test
  • Built-in real-time clock
  • Programmable PASS and FAIL limits
  • Perform functional and visual inspections
  • Earth bond resistance testing
  • Insulation resistance testing at 250 and 500V DC
  • Differential leakage, touch leakage and substitute leakage tests
  • P/RCD tests
  • Power tests
  • IEC cord polarity tests
  • TRMS voltage meter built-in
  • Rechargeable batteries included

Metrel DeltaPAT Bundle Offers

Take a look at out different DeltaPAT kits in the table below.

ItemPAT Essentials Kit (Bundle 1) >>PAT Business Kit (Bundle 2) >>PAT Premium Kit (Bundle 3) >>
Socket Tester
PAT Testing Training DVD and Online Exam
Handbook of Portable Appliance Testing
Microwave Leakage Detector
2 x 110V Adapters
3 x IEC Adapters
5 Piece Insulated Screwdriver Kit
Passed PAT Testing Labels 1000x 1000x 1000x
Circular Passed PAT Testing Labels 500x 1000x 1000x
Cable Wrap Labels 500x 500x 500x
Failed PAT Testing Labels 500x 500x 500x
Visual Inspection Labels
Barcode Scanner
Barcode Labels 2000x 2000x
Metrel A1276 Printer
Bundle Deals (3)
  • Related Items
Technical Specs
Questions?Do you have a question about this product? Call our customer service team on 01642 631685.

Metrel MI3309 DeltaPAT Technical Specifications

Earth Continuity (200mA in to 2.00Ω)
Range Resolution Accuracy
0.00 Ω ÷ 19.99 Ω 0.01 Ω ± (5 % of reading + 3 digits)
20.0 Ω ÷ 199.9 Ω 0.1 Ω Indication Only
200 Ω ÷ 1999 Ω 1 Ω
Insulation Resistance, Insulation - S Resistance (250VDC, 500VDC)
Range Resolution Accuracy
0.00 MΩ ÷ 19.99 MΩ 0.01 MΩ ±(5 % of reading + 3 digits)
20.0 MΩ ÷ 49.9 MΩ 0.1 MΩ
50.0 MΩ ÷ 199.9 MΩ 0.1 MΩ Indication only
Differential Leakage Current (230VAC)
Range Resolution Accuracy
0.00 mA ÷ 19.99 mA 0.01 mA ±(5 % of reading + 5 digits)
Substitute Leakage Current (30VAC)
Range Resolution Accuracy
0.00 mA ÷ 9.99 mA 0.01 mA ±(5 % of reading + 3 digits)
10.0 mA ÷ 20.0 mA 0.1 mA
(P)RCD testing (10 mA, 15 mA, 30 mA)
Range Resolution Accuracy
0 ms ÷ 300 ms (½xIΔN) 0.1 ms ±3 ms
0 ms ÷ 300 ms (IΔN) 0.1 ms
0 ms ÷ 40 ms (5xIΔN) 0.1 ms ±1 ms
Power measurement (230 VAC)
Range Resolution Accuracy
0.00 kVA ÷ 4.00 kVA 0.01 kVA ±(5 % of reading + 3 digits)
Voltage TRMS Measurement
Range Resolution Accuracy
80 ÷ 300 V 1 V ±(2 % of reading + 2 digits)

Metrel DeltaPAT General Specifications

Power Supply Voltage 9 VDC (6x1.5 V battery or accu, size AA), 230 VAC
Operation 10 h
Working Temperature Range 0 °C ÷ 40 °C
Maximum Relative Humidity 95 % RH (0 °C ÷ 40 °C), non-condensing
Display 128 x 64 dots matrix display with backlight
Memory 1500 memory locations
Communication Port RS232 (PS/2 connector, female),
USB (connector Type B)
Overvoltage Category CAT II / 300 V
Protection Classification Double insulation
Protection Degree case IP 40 /connectors IP 20
Dimensions (W x H x D) 14 cm x 8 cm x 23 cm
Weight 1.2 kg
