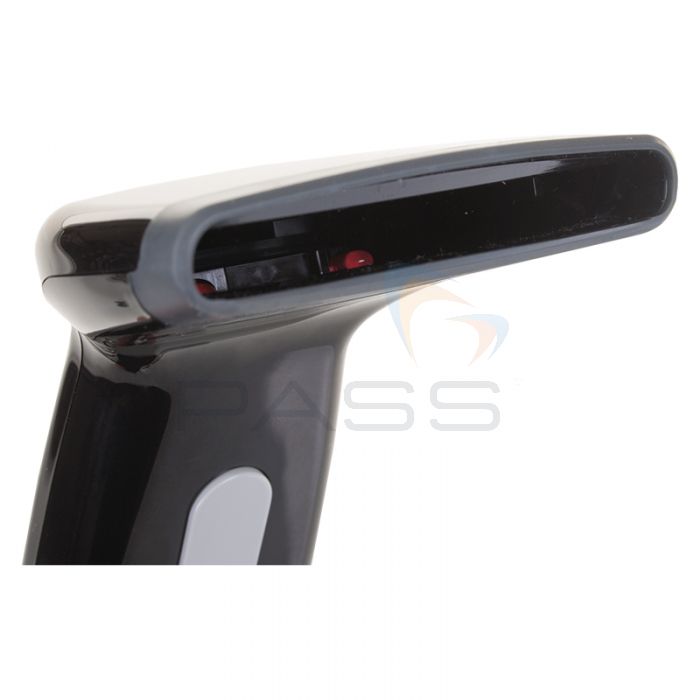

USB Barcode Scanner
Keep track of all of your labels with this quick-response barcode scanner!
Ideal for use with standard barcodes on products in the warehouse or suitable for PAT testing barcode labels, the scanner can interface via USB.
The scanner includes a high performance processor and decoding board, giving it highly precise reading capabilities.
This scanner is capable of pairing with the following:
- Windows XP
- Windows 7/8
- iOS
- Android
USB Barcode Scanner Key Features
- High performance processor and decoding board for quick barcode scanning
- USB communication
- LED indication
- Auto off when left idle
- Compatible with several different operating systems
What's Included?
- Barcode Scanner with Attached USB Cable
- Instruction Manual
Technical Specifications
| Light Source (Laser) | Laser LED 650 ± 250nm |
| Decode Capability | Code bar Code 11 Code 93 MSI Code 128 UCC/EAN-128 Code 39 EAN-8 EAN-13 UPC-A ISBN Industrial 25 Interleaved 25 Standard 25 2/5 Matrix |
| Resolution | 3mil |
| Nominal Working Distance | 6-30cm |
| Decode Rate | 100 decodes per second |
| Scanning Width | 30mm |
| Decode Mode | Single line aiming |
| Scan mode | Auto off mode/manual mode |
| Print Contrast Medium | 30% |
| Scan Angles | Roll 30° Pitch 75° Yaw 65° |
| Cylinder Horizontal Scan | Diameter 35mm |
| Indication | Beeper, LED |
| Radio Range | 10m visual range |
| Interfaces Supported | SPP, HID, USB2.0 |
0 Reviews
Overall Rating
Additional Information
| SKU | PASSPTA27 |
|---|---|
| Manufacturer Part Code | 12306 |
