Megger PAT450 PAT Tester
Megger's top-of-the-range PAT tester, the PAT450 performs absolutely every test a PAT technician will need.
The upgrade to the PAT420 and PAT410, the PAT450 is an advanced PAT tester with fully downloadable, 10,000 record memory. It's suitable for use on both 230V and 110V appliances, can test extension leads, IT equipment and can even test appliances found in workshops thanks to its unique flash testing function at 1.5kV and 3kV.
With the PAT450's built-in full colour screen, it's quick and easy to view and amend testing data. A full QWERTY keyboard is included for data entry and a port for an optional barcode scanner and printer means you can speed up asset recall and print data out in the field.
The PAT450 has two modes: automatic and manual. The automatic sequences will automatically cycle through applicable tests for an attached appliance, while the manual testing mode gives the user full control over testing times and PASS/FAIL limits.
Megger PAT450 Key Features
- Fuse check
- Colour display
- 10 V test connection
- Configurable tests times
- Selectable pass limits
- Lead storage pouch
- 10,000 record on-board storage
- Download to USB memory stick
- Megger PowerSuite compatible
- 230 V, 110 V, Supply measurement
- 200 mA, 10 A, 25 A, Bond lead null
- 1.5kV, 3.0kV Flash
- 250 V, 500 V Insulation test
- Substitute, Differential, Touch current alternative Leakage tests
- VA Measurement operation test
- Earth bond, Insulation, Polarity, Portable RCD tests for extension leads
- Auto test routine
- Manual testing

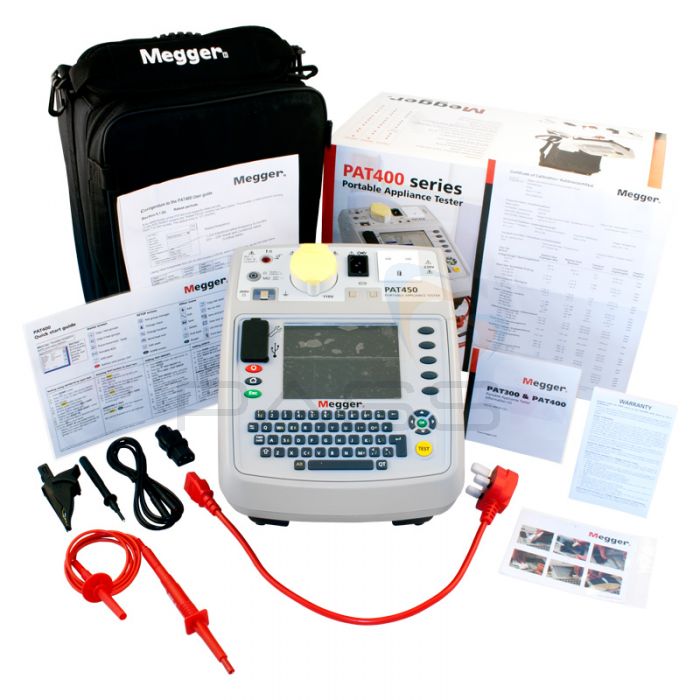

Megger PAT450 Includes
- Megger PAT450 PAT Tester
- Megger soft carry case
- Document and accessory wallet
- Flash test probe
- Earth bond / insulation lead
- 13A extension lead adaptor
- Plug adaptor IEC C6-C13 (3 way 5A PSU)
- Quick-start guide
- User guide CD
- One year warranty registration card
Accessories
There are a number of accessories available for the Megger PAT450 PAT Tester with Flash; please see the table below for further details. For further information please contact our sales team.
Megger PAT450 Technical Specifications
| Electrical Supply Range | 230V ±10 @ 50/60Hz 110V ± 10% + 110V ±10% @50Hz |
| Bond Test (10A and 25A) | |
| Open Circuit Voltage | 9V AC ±10% ± 0.1V (supply: 230V 50Hz) |
| Earth Bond Resistance Accuracy | ±5% ± 3 digits (0 to 0.49Ω) ±5% ±5 (0.5 to 0.99Ω) |
| Display Range | 0 to 1.99Ω |
| Continuity Test (200mA) | |
| Continuity Test Voltage | 9V AC ± 10% ± 0.1V (supply: 230V 50Hz) |
| Continuity Resistance Accuracy | ±5% ± 3 digits (0 to 0.49Ω) ±5% ± 5 digits (0.5 to 0.99Ω) |
| Continuity Resistance Resolution | 10mΩ (1 to 19.99Ω) |
| Display Range | 0 to 19.99Ω |
| Insulation Test (250V and 500V) | |
| Insulation Resistance Accuracy (230V) | ±2% ±5 digits (0 to 19.99MΩ) ±5% ± 10 digits (20 to 99.99MΩ) |
| Insulation Resistance Resolution | 0.01MΩ |
| Display Range | 0 to 99.99MΩ |
| Substitute Leakage Test | |
| Test Voltage and Frequency | 40V AC ±10% nominal mains frequency |
| Leakage Current Accuracy | ±5% ± 5 digits |
| Leakage Current Resolution | 0.01mA |
| Display Range | 0 to 19.99mA |
| Differential Leakage Current | |
| Test Voltage | Nominal mains 110/230V AC |
| Test Frequency | Nominal mains 50/60Hz |
| Differential Leakage Current Accuracy | ±5% ± 0.05mA (1.0mA to 9.99mA) ±5% ± 0.1mA (0.1mA to 0.99mA) |
| Resolution | 0.01mA |
| Display/Measurement Range | 0.10mA to 19.99mA |
| Test Duration | User-selectable from 1 sec 10 sec to infinity |
| Touch Current Test | |
| Test Voltage and Frequency | Nominal mains supply |
| Touch Current Accuracy | ±5% ± 5 digits |
| Touch Current Resolution | 0.01mA |
| Display | 0 to 10mA |
| Operational Test | |
| Test Voltage and Frequency | Nominal mains supply |
| VA Rating | 230V 3700VA 110V 1800VA |
| VA Accuracy | ±5% ± 10 digits (0 to 99VA) ±5% ± 50 digits (100VA to 999VA) ±5% ± 100 digits (1000VA to 3700VA) |
| Resolution | 1VA (0 to 3700VA) |
| Display Range | 0 to 3990VA |
| Extension Lead Test | |
| Tests Performed | Bond, insulation and polarity |
| Polarity Test Voltage | 12V |
| Polarity checks | Lead ok Live neutral S/C Live neutral reversed Live/neutral O/C |
| Flash Test | |
| Flash Test Voltage | 1500V AC nominal for class 1 3000V AC nominal for class 2 |
| Flash Test Current | <3.5mA short circuit @ 253V primary supply voltage |
| Flash Test Breakdown Current Accuracy | ±5% ±5 digits |
| Flash Test Breakdown Current Resolution | 0.01mA |
| Display Range | 0 to 3.0mA |
| Portable RCD Test | |
| Test Voltage and Frequency | Nominal mains supply |
| Test Current Accuracy | -8% to -2% (1/2 x I) +2 to +8% (1 x I, 5 x I) |
| Trip Time Accuracy | ±1% ± 5 digits |
| Trip Time Resolution | 0.1ms |
| Display Range | 0 to 1999ms (1/2 x I) 0 to 300ms (1 x I) 0 to 40ms (5 x I) |
| Fuse Test | |
| Test Voltage | 3.3V |
| Warning | Audible beep if fuse is OK |
| Environmental | |
| Operating Temperature | -10 to 50°C |
| Storage Temperature | -20 to 60°C |
| Humidity | 90% RH @ -10 to 30°C 75% RH @ +30 to 50°C |
| Maximum Altitude | 2000m |
| Ingress Protection | IP40 |
| Other | |
| Weight | 5.0kg |
| Dimensions | 210 (H) x 280 (W) x 390mm (L) |
| Safety | IEC 61010-1: CAT II 300V |
| EMC | IEC 61326-1: 2006 IEC 61326-2-2: 2005 |
| SKU | 1000-755 |
|---|---|
| Manufacturer Part Code | 1000-755 |
| Model No | PAT450 |
| Country of Origin | United Kingdom |
