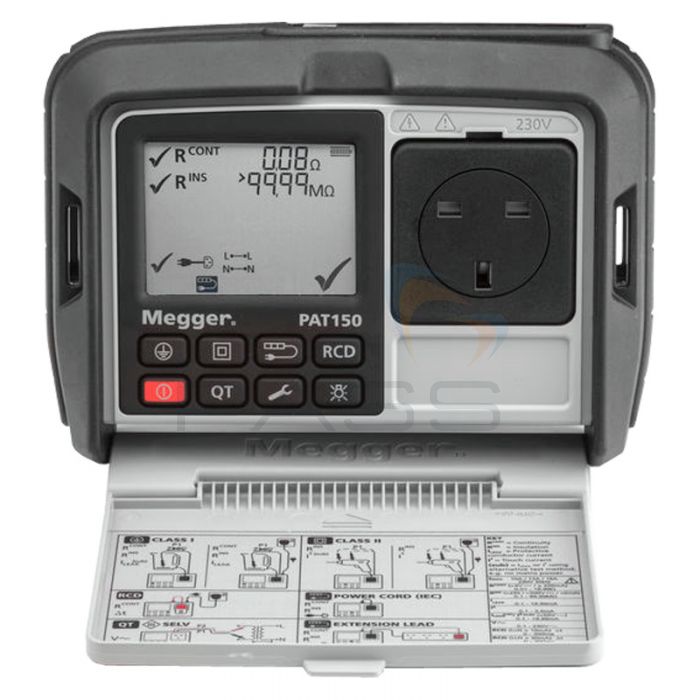

Megger PAT150 PAT Tester

The upgraded version of Megger's PAT120, the PAT150 includes more functionality and allows for more comprehensive portable appliance testing.

Designed for use with practically any appliance, including IT/surge-protected, fixed equipment, class I and II appliances and leads (including extension leads), the PAT150 can be used to test all aspects of PAT testing including insulation, RCD, leakage testing and even includes fully-adjustable PASS/FAIL limits and testing time for testing to the user's specifications.

PAT150 hand-held portable appliance tester animation

For extra protection the PAT150 comes built into its own carrying case; this rubber-armoured case ensures that the tester's case and innards are protected from damage and a handy fold-down lid protects the screen, keys and plug socket from damage when the tester isn't in use.

Megger PAT150 PAT Tester Key Features

  • Easy to use - simple tick/cross PASS/FAIL indication plus full display of testing results
  • Exclusive portable RCD testing mode for 10mA and 30mA RCDs
  • 500V and 250V insulation procedures make the tester suitable for use on IT and surge protected equipment
  • Continuity testing
  • Mains powered leakage testing
  • SELV measurements
  • Quick test button
  • User-configurable test group pass limits and test duration
  • Bond lead resistance can be nulled to reduce measurement errors
  • Live circuit measurements for testing mains supply and socket polarity
  • Suitable for testing fixed appliances
  • Tough armoured carrying case with protective lid plus high durability screen with scratchproof technology

What's Included?

  • Megger PAT150 PAT Tester
  • Continuity/Earth Bond Lead
  • SELV/Mains Voltage Test Lead
  • Extension Lead Adapter
  • Mains Plug Test Lead
  • Carry Case

PAT120 or PAT150?

Megger have also developed an entry-level version of the PAT150 known as the PAT120. This product is ideally suited for those looking for a more cost-effective PAT solution. The chart below outlines the difference between the PAT120 and the PAT150.

FeatureMegger PAT120Megger PAT150
Mains Test Socket BS1363 BS1363
Power Supply AA alkaline batteries AA alkaline batteries
Testing
Protective Earth Resistance
250V Insulation
500V Insulation -
Cable Test
Live Protective Conductor Current -
Live Touch Current -
Substitute Leakage
Function Test (Part of Live Leakage Test) -
10mA PRCD -
30mA PRCD -
SELV Voltage -
Lead Resistance Nulling -
Function Keys
Class 1
Class 2
Lead/Cord
PRCD -
Single Test -
LCD Backlight
Setup -
On/Off
Standard Accessories
4mm Plug Lead Probe + Croc Clip 1x 2x
Extension Lead Adaptor BS1363 BS1363
Mains Supply Cord -
Carry Case

Don't Forget Your Calibration Certificate!

At PATTesters.co.uk we are able to calibrate your new tester from the day of purchase, ensuring you get the longest life out of your new product. To use our calibration service just add an optional calibration certificate to your order using the selection at the top of the page.

Accessories

The table below details the accessories available for the Megger PAT150 PAT Tester. For further information, please contact our sales team.

Our SKU Megger's Part Number Product
2000-870 1001-233 Continuity/Bond Lead Set 32A
1001-234 1001-234 Extension Lead Adaptor 230V UK 13A
1003-346 1003-346 Battery Charger Kit 15V
1005-075 1005-075 Carry Case PAT100 Series
1005-076 1005-076 Carry Strap
1005-077 1005-077 SELV Test Lead
1005-081 1005-081 Extension Lead Adaptor SWISS
MEGRCDA1 6231-601 UK Mains Plug Test Leadset 3-pin 1 wire (BS1363 plug)
2000-551 1001-232 Megger Plug adaptor IEC C6 - C13
MEGPTA8 6220-639 Megger 6220-639 Extension Lead Adapter (ELA) 110V  BS4343 (for PAT4DV & DVF)
1000-767 1000-767 415V Adaptor Lead (4 Pin) TO BS (16A)
1000-770 1000-770 415V Adaptor Lead (5 Pin) TO BS (16A)

Megger PAT100 Series Technical Specifications

SpecificationsMegger PAT120Megger PAT150
Environmental Conditions
Operating Ambient 20°C 20°C
Humidity Nominal humidity Nominal humidity
Continuity Testing
Test Voltage Compliance voltage: +4V DC
-0 / +10% (open circuit)
Compliance voltage: +4V DC
-0 / +10% (open circuit)
Test Current Bi-directional +200mA
-0% + 50mA (into 2Ω load)
Bi-directional +200mA
-0% + 50mA (into 2Ω load)
Continuity Accuracy Resistance: ±5% ± 3 digits (0 to 19.99Ω) Resistance: ±5% ± 3 digits (0 to 19.99Ω)
Resistance Resolution 10mΩ 10mΩ
Display Range 0.01 to 19.99Ω 0.01 to 19.99Ω
Continuity Test Nulling Up to 9.99Ω Up to 9.99Ω
Test Duration Selected during test automatically User-selectable from 2 seconds to 20 seconds or selected during test to 180 seconds
Insulation Test
Insulation Procedure 250V DC: -0% / +25% open circuit
250V DC: -0% / +25% open circuit
500V DC: -0% / +25% open circuit
≥ 500V 0% DC across 0.5MΩ load
Short Circuit/Charge Current <2mA DC <2mA DC
Insulation Accuracy ±3% ± 10 digits (0 to 99.9MΩ) ±3% ± 10 digits (0 to 99.9MΩ)
Resolution 0.01MΩ 0.01MΩ
Display Range 0.10M to 99.99MΩ 0.10M to 99.99MΩ
Test Duration Selected during test automatically User selectable from 2 seconds to 20 seconds or selected during test to 180 seconds
Substitute Leakage Test
Leakage Current Accuracy ±5% ± 3 digits Accuracy ±5% ± 3 digits
Test Frequency Nominal mains frequency 50Hz Nominal mains frequency 50Hz
Test Voltage <50V AC <50V AC
Resolution 0.01mA 0.01mA
Display Range 0.10 to 19.99mA 0.10 to 19.99mA
Test Duration User-selectable from 2 secs to 5 seconds User-selectable from 2 secs to 5 seconds
Differential Leakage Test (PAT150 Only)
Test Voltage - Nominal supply voltage 230V AC
Test Frequency - Nominal mains frequency 50Hz
Test Accuracy - ±5% ±3d ± 3μA/A
Resolution - 0.01mA
Display Range - 0.10 to 19.99mA
Test Duration - User-selectable from 2 seconds to 5 seconds
Touch Current Test (PAT150 Only)
Test Voltage - Nominal mains 230V AC
Test Frequency - Nominal mains 50Hz
Test Accuracy - ±5% ± 3 digits
Resolution - 0.01mA
Display Range - 0.10 to 3.99mA
Test Duration - User-selectable from 2 seconds to 5 seconds
SELV Device Test (PAT150 Only)
Test Voltage - 0 to 300V AC
Measurement Accuracy - ±3% ± 3 digits
Resolution - 0.1V AC
Display Range - 0.1 to 300V AC
Extension Lead Test
Test Voltage 5V 5V
Polarity Lead OK
Live/neutral shorted
Live/neutral reversed
Live/neutral open circuit
Lead OK
Live/neutral shorted
Live/neutral reversed
Live/neutral open circuit
Portable RCD Test (PAT150 Only)
Test Voltage - Nominal mains 230V
Test Frequency - 50Hz
Test Current Accuracy - +2% to +8% (1 x I, 5 x I)
Trip Time Accuracy - ±1% ± 1ms
Trip Time Resolution - 0.01ms
Display Range - 0 to 200ms (1 x I)
0 to 40ms (5 x I)
Mains Supply Test (PAT150 Only)
Frequency Measurement Range - 50Hz
Test Voltage - 40 to 300V AC
Accuracy - ±3% ± 3 digits
Resolution - 0.1V AC
Display Range - 40 to 300V AC
Circuit Test
Test Voltage 5V 5V
Test Frequency Nominal mains 50Hz Nominal mains 50Hz
Test Current <100mA short circuit <100mA short circuit
Safety Instrument designed to IEC 61010-1: 2012
Test leads designed to IEC 61010-031:2005
300 volts to Earth Category II
Mains fuse protection to 250V RMS AC
Instrument designed to IEC 61010-1: 2012
Test leads designed to IEC 61010-031:2005
300 volts to Earth Category II
Mains fuse protection to 250V RMS AC
EMC Designed to meet IEC 61326-1: 2006 and IEC 61326-2-2: 2005 Designed to meet IEC 61326-1: 2006 and IEC 61326-2-2: 2005
Environmental
Operating Temperature 0 to 40°C 0 to 40°C
Storage Temperature -20 to 60°C -20 to 60°C
Humidity 90% RH @ 10 to 30°C
75% RH @ 30 to 40°C
90% RH @ 10 to 30°C
75% RH @ 30 to 40°C
Max Altitude 2000m to full safety spec 2000m to full safety spec
IP Rating IP40 (with front cover closed) IP40 (with front cover closed)
Mechanical (Batteries)
Battery Life 3 days based on 120 tests/day using 2000mAh alkaline batteries 3 days based on 120 tests/day using 2000mAh alkaline batteries
Battery Type Supply voltage
12V DC (alkaline AA LR6)
9.6V DC (NiMH AA LR6)
Supply voltage
12V DC (alkaline AA LR6)
9.6V DC (NiMH AA LR6)
Weight 1150g 1300g
Dimensions 203mm (L) x 148mm (W) x 78mm (H) 203mm (L) x 148mm (W) x 78mm (H)
